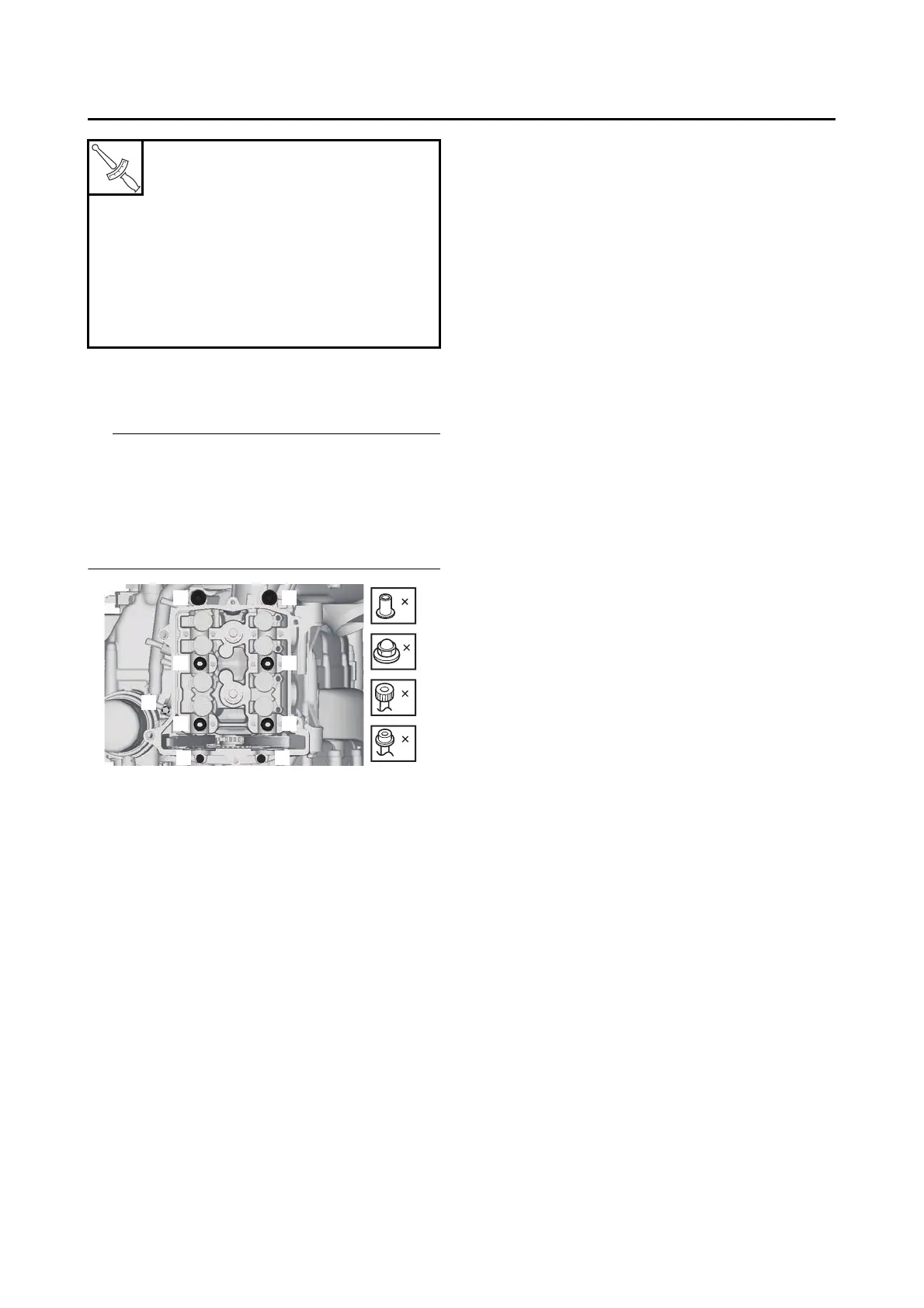

CYLINDER HEAD
* Following the tightening order, loosen the
bolt one by one and then retighten it to the
specified torque and the specified angle.
• Using the indicated tightening sequence, tight-
en the cylinder head nuts, cylinder head bolts,
and cylinder bolt when the cylinder head and
cylinder are cold.
• Use four steps to tighten the cylinder head
nuts.
4. Install:
• Exhaust camshaft
• Intake camshaft
Refer to “INSTALLING THE CAMSHAFTS”
on page 5-17.
Cylinder head nut
1st: 10 N·m (1.0 kgf·m, 7.4 lb·ft)
2nd: 20 N·m (2.0 kgf·m, 15 lb·ft)
3rd: 28 N·m (2.8 kgf·m, 21 lb·ft)
*4th: 6 N·m (0.6 kgf·m, 4.4 lb·ft)
Specified angle 180
Cylinder head bolt
10 N·m (1.0 kgf·m, 7.4 lb·ft)
Cylinder bolt
10 N·m (1.0 kgf·m, 7.4 lb·ft)
To Next Page
