Yamaha TMAX TECH MAX 2020 - Page 302

5-67

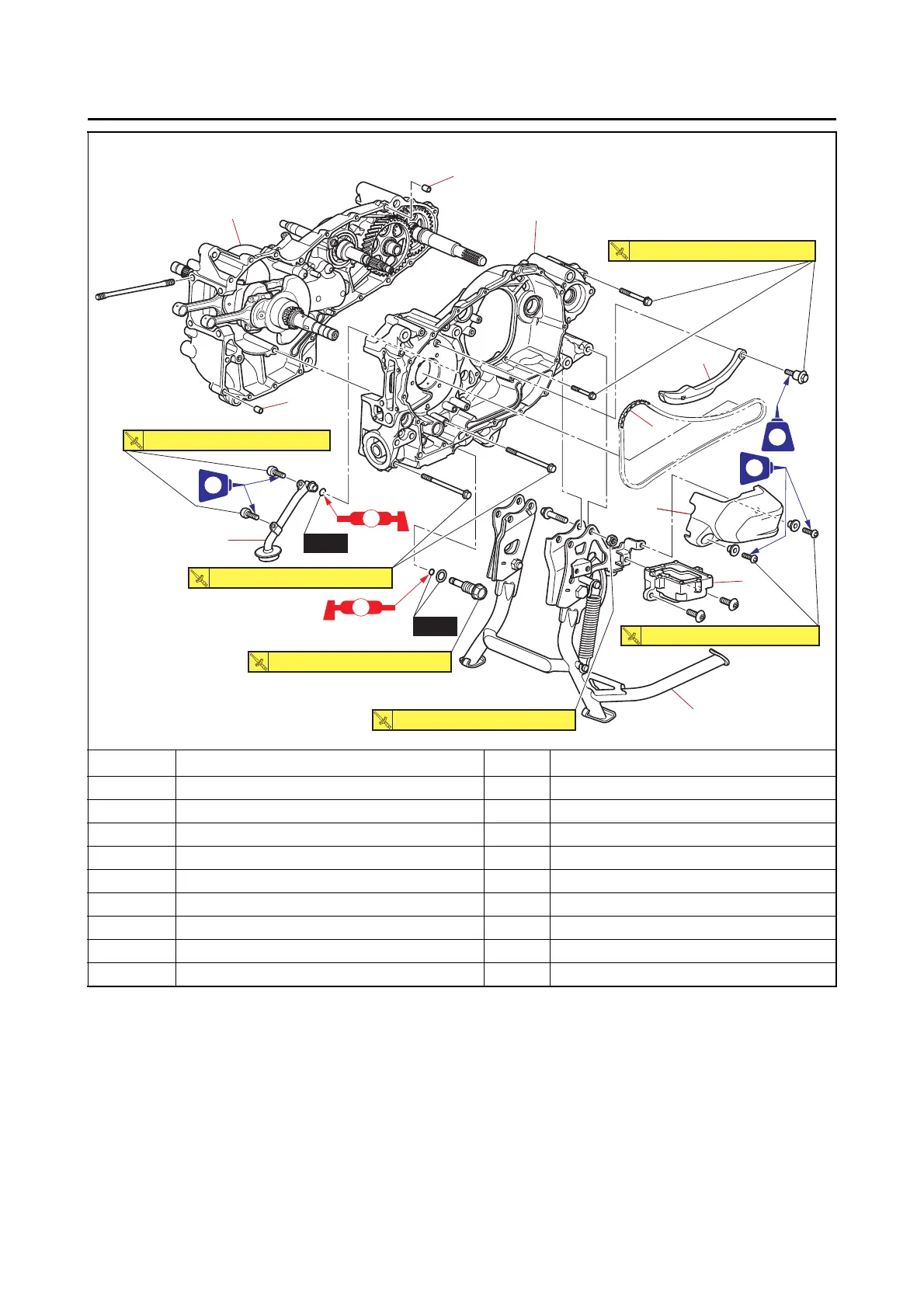

CRANKCASE
Separating the crankcase
Order Job/Parts to remove Q’ty Remarks
1 Centerstand assembly 1
2 Timing chain 1
3 Timing chain guide (intake side) 1
4 Crankcase (left) 1
5 Dowel pin 2
6 Oil strainer 1
7 Crankcase (right) 1
8 Centerstand lock solenoid cover 1
9 Centerstand lock solenoid 1
(3)
(3)
(6)
(6)
(8)
(5)
(2)
New
New
1
2
3
4
5
6
7
8
9
5
LT
LT
LT
LS
LS
10 N·m (1.0 kgf·m, 7.4 lb·ft)
10 N·m (1.0 kgf·m, 7.4 lb·ft)
24 N·m (2.4 kgf·m, 18 lb·ft)
43 N·m (4.3 kgf·m, 32 lb·ft)
55 N·m (5.5 kgf·m, 41 lb·ft)
7 N·m (0.7 kgf·m, 5.2 lb·ft)
