Yamaha TMAX TECH MAX 2020 - Page 303

5-68
CRANKCASE

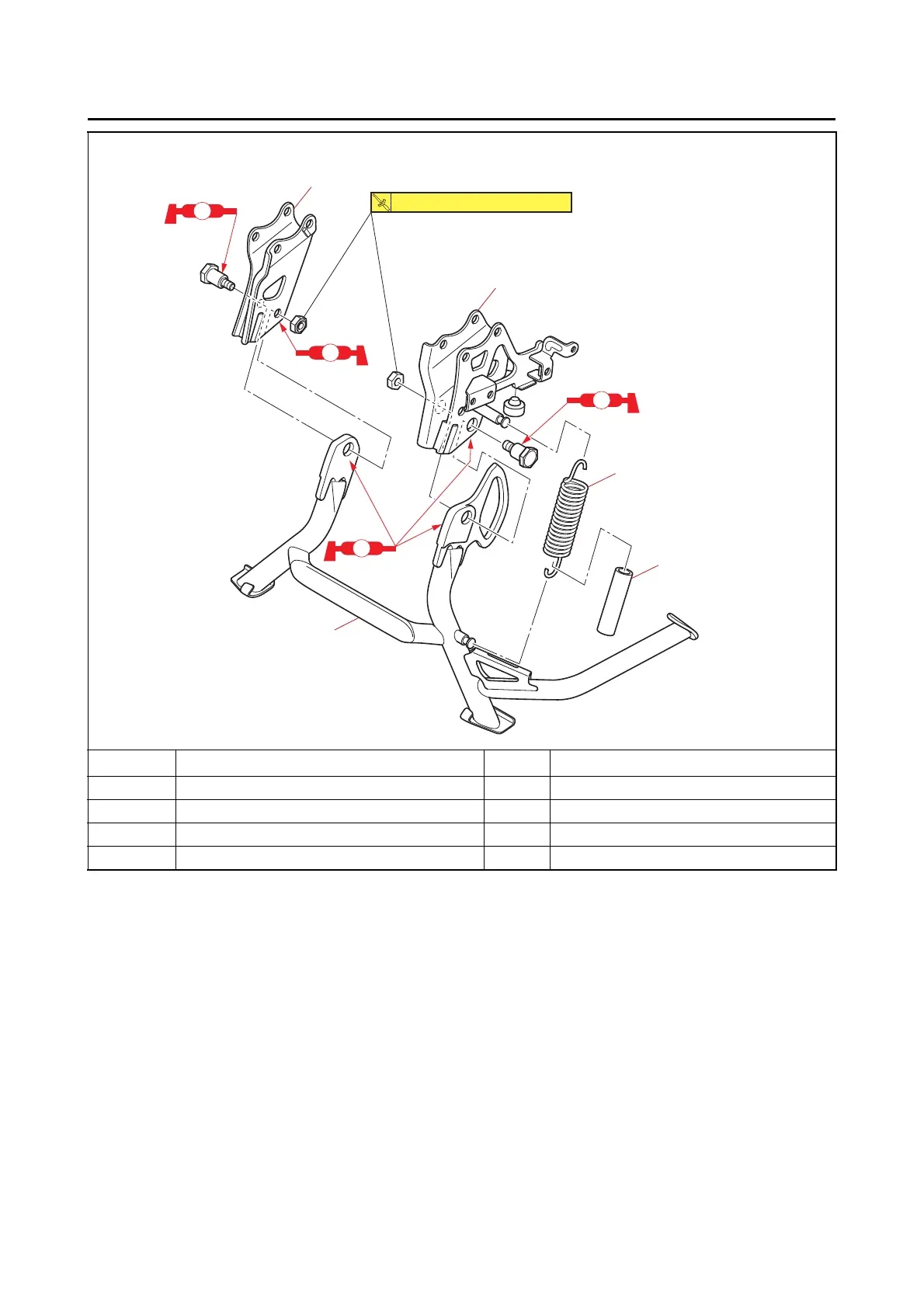

Disassembling the Centerstand assembly
Order Job/Parts to remove Q’ty Remarks
1Spring 1
2 Spring tube 1
3 Centerstand bracket 2
4 Centerstand 1
68 N • m (6.8 kgf • m, 50 lb • ft)
T.R.
3
1
2
4
3
LS
LS
LS
LS
