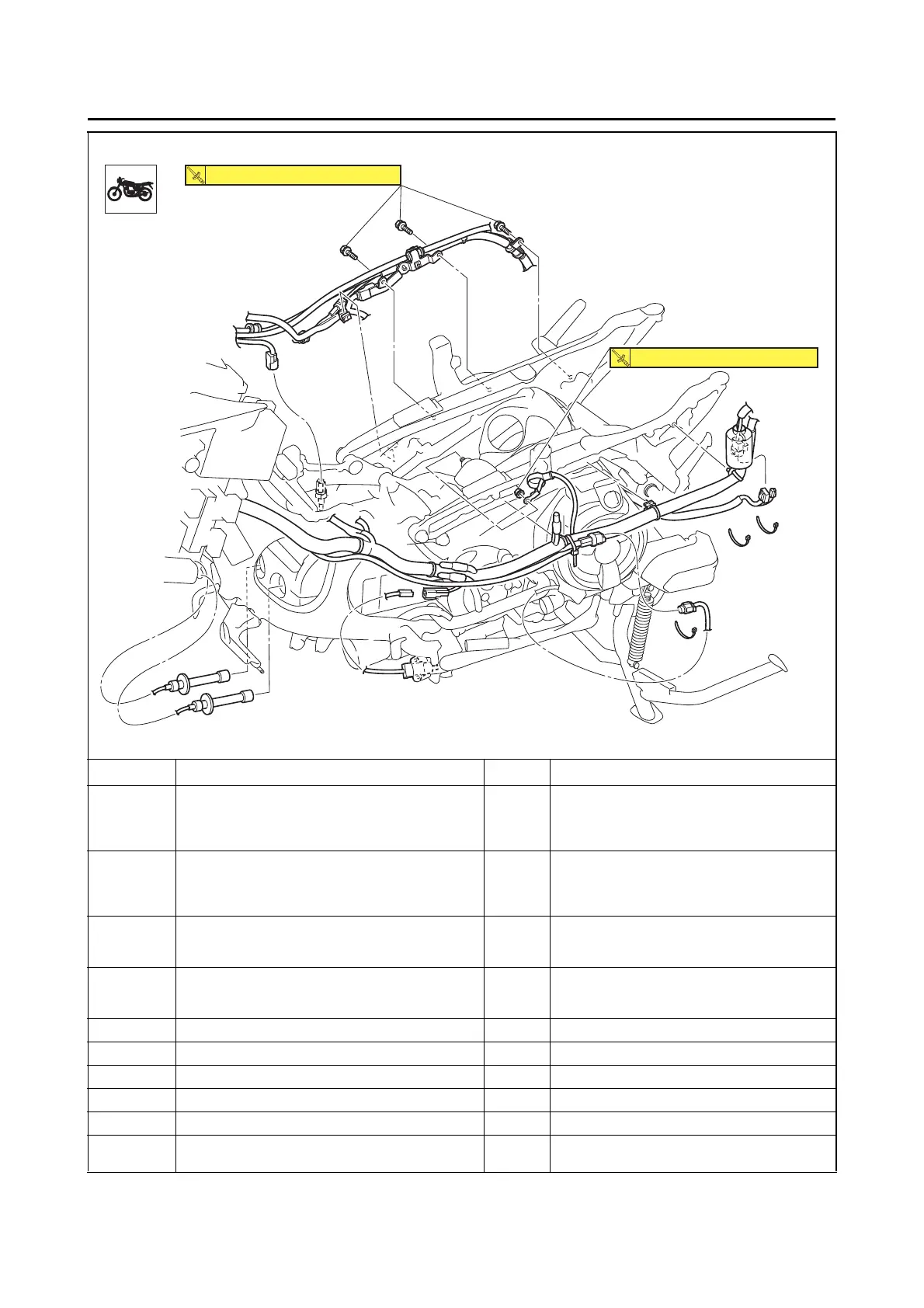

ENGINE REMOVAL
Disconnecting the leads
Order Job/Parts to remove Q’ty Remarks
Windshield/Front cover/Rearview mirror/Wind-
shield inner panel/Meter assembly/Bottom side
cowling/Side panel/Front cowling assembly/Leg
shield assembly
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover/Rear side cowling assembly/Footboard/
Mudguard assembly/Seat assembly/Storage
box
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Engine oil
Drain.
Refer to “CHANGING THE ENGINE OIL” on
page 3-27.
Coolant
Drain.
Refer to “CHANGING THE COOLANT” on
page 3-31.
Exhaust assembly Refer to “ENGINE REMOVAL” on page 5-7.
Fuel tank/Rollover valve Refer to “FUEL TANK” on page 7-1.
Front wheel Refer to “FRONT WHEEL” on page 4-22.
Front fender Refer to “FRONT FORK” on page 4-81.
Rear wheel Refer to “REAR WHEEL” on page 4-30.
Rear shock absorber assembly
Refer to “REAR SHOCK ABSORBER
ASSEMBLY” on page 4-96.
7 N・m (0.7 kgf・m, 5.2 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
