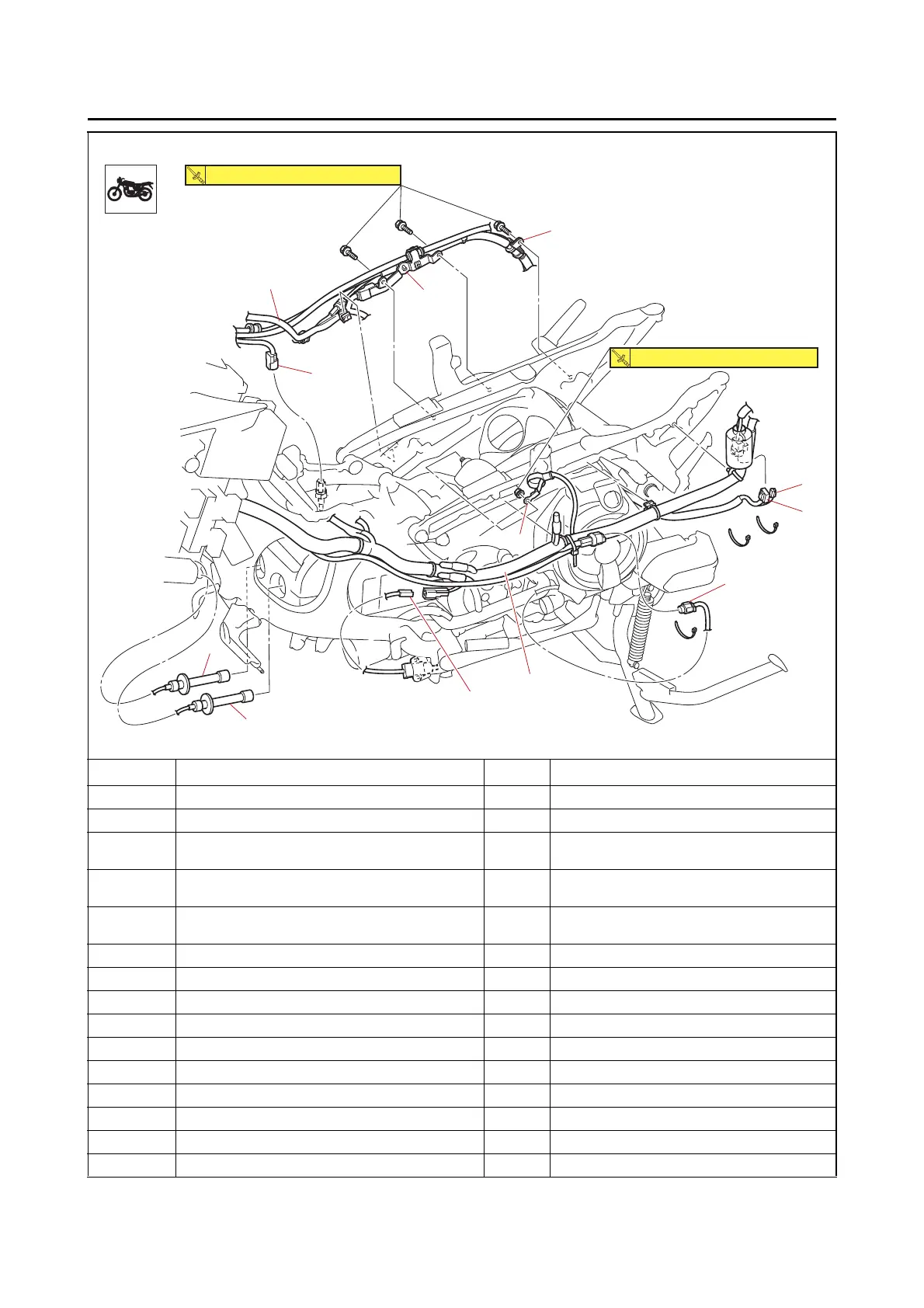

ENGINE REMOVAL
Disconnecting the leads
Order Job/Parts to remove Q’ty Remarks
Swingarm Refer to “SWINGARM” on page 4-100.
Air filter case/Throttle body assembly Refer to “THROTTLE BODY” on page 7-5.
V-belt case air filter element (left)/Water pump
inlet pipe
Refer to “WATER PUMP” on page 6-11.
V-belt case air duct
Refer to “V-BELT AUTOMATIC TRANSMIS-
SION” on page 5-39.
Radiator inlet hose/Cooling system air bleed
hose/Radiator outlet hose
Refer to “RADIATOR” on page 6-3.
1 Spark plug cap 2 Disconnect.
2 Sidestand switch coupler 1 Disconnect.
3 Centerstand lock solenoid coupler 1 Disconnect.
4 Stator coil coupler 1 Disconnect.
5 Crankshaft position sensor coupler 1 Disconnect.
6 Starter motor lead 1 Disconnect.
7 Coolant temperature sensor coupler 1 Disconnect.
8 Brake hose holder 1
9 Cable guide 1
10 Wire harness 1
7 N・m (0.7 kgf・m, 5.2 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
1
1
2
3
4
5
6
7
8
9
10
10
