5-10

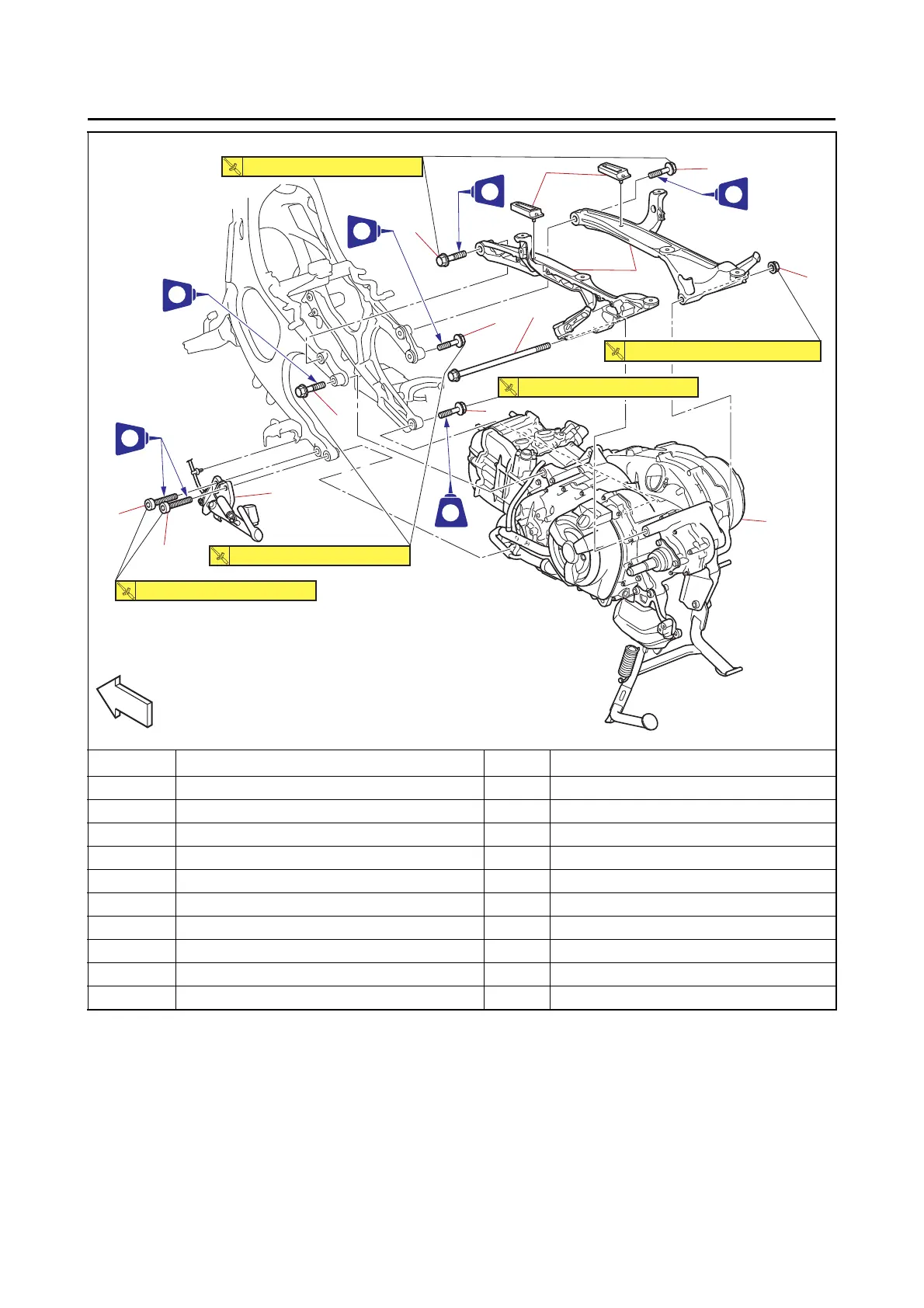

ENGINE REMOVAL
Removing the engine
Order Job/Parts to remove Q’ty Remarks
1 Damper 2
2 Rear frame bolt 2
3 Engine mounting nut (rear side) 1
4 Engine mounting bolt (rear side) 1
5 Rear frame 2
6 Engine mounting bolt (front left lower side) 2
7 Sidestand 1
8 Engine mounting bolt (front right lower side) 1
9 Engine mounting bolt (front upper side) 2
10 Engine 1
LT
LT
LT
LT
LT
LT
78 N·m (7.8 kgf·m, 58 lb·ft)
T.R.
83 N·m (8.3 kgf·m, 61 lb·ft)
T.R.
105 N·m (10.5 kgf·m, 77 lb·ft)
T.R.
70 N·m (7.0 kgf·m, 52 lb·ft)
T.R
.
77 N·m (7.7 kgf·m, 57 lb·ft)
T.R.
FWDFWD
1
2
2
3
4
5
6
6
7
8
9
9
10
