7-5
THROTTLE BODY
EAS20070
THROTTLE BODY

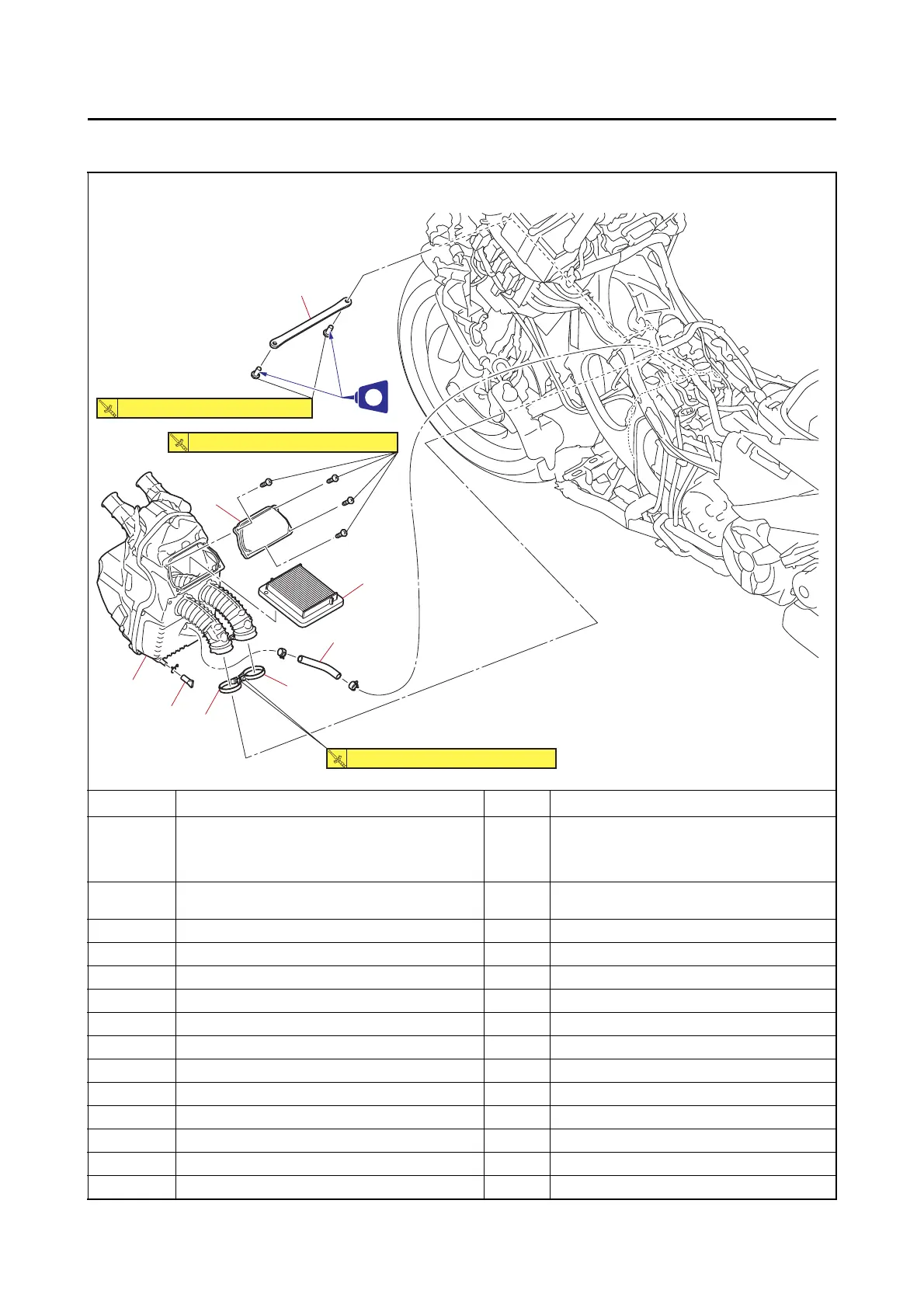

Removing the air filter case
Order Job/Parts to remove Q’ty Remarks
Windshield/Front cover/Windshield inner panel/
Meter assembly/Rearview mirror/Bottom side
cowling/Side panel/Front cowling assembly/Leg
shield assembly
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover/Rear side cowling assembly/Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Fuel tank Refer to “FUEL TANK” on page 7-1.
Throttle body assembly Refer to “THROTTLE BODY” on page 7-5.
Cylinder head cover Refer to “CAMSHAFTS” on page 5-12.
Front wheel Refer to “FRONT WHEEL” on page 4-22.
Front fender Refer to “FRONT FORK” on page 4-81.
1Plate 1
2 Cylinder head breather hose 1
3 Air filter case joint clamp 2 Loosen.
4 Air filter case cover 1
5 Air filter element 1
6 Air filter case 1
7 Air filter case check hose 1
6
7
3
3
2
1
5
4
LT
1.8 N・m (0.18 kgf・m, 1.3 lb・ft)
3.0 N・m (0.30 kgf・m, 2.2 lb・ft)
34 N・m (3.4 kgf・m, 25 lb・ft)
To Next Page
