Yamaha TMAX TECH MAX 2020 - Page 152

4-23
FRONT WHEEL

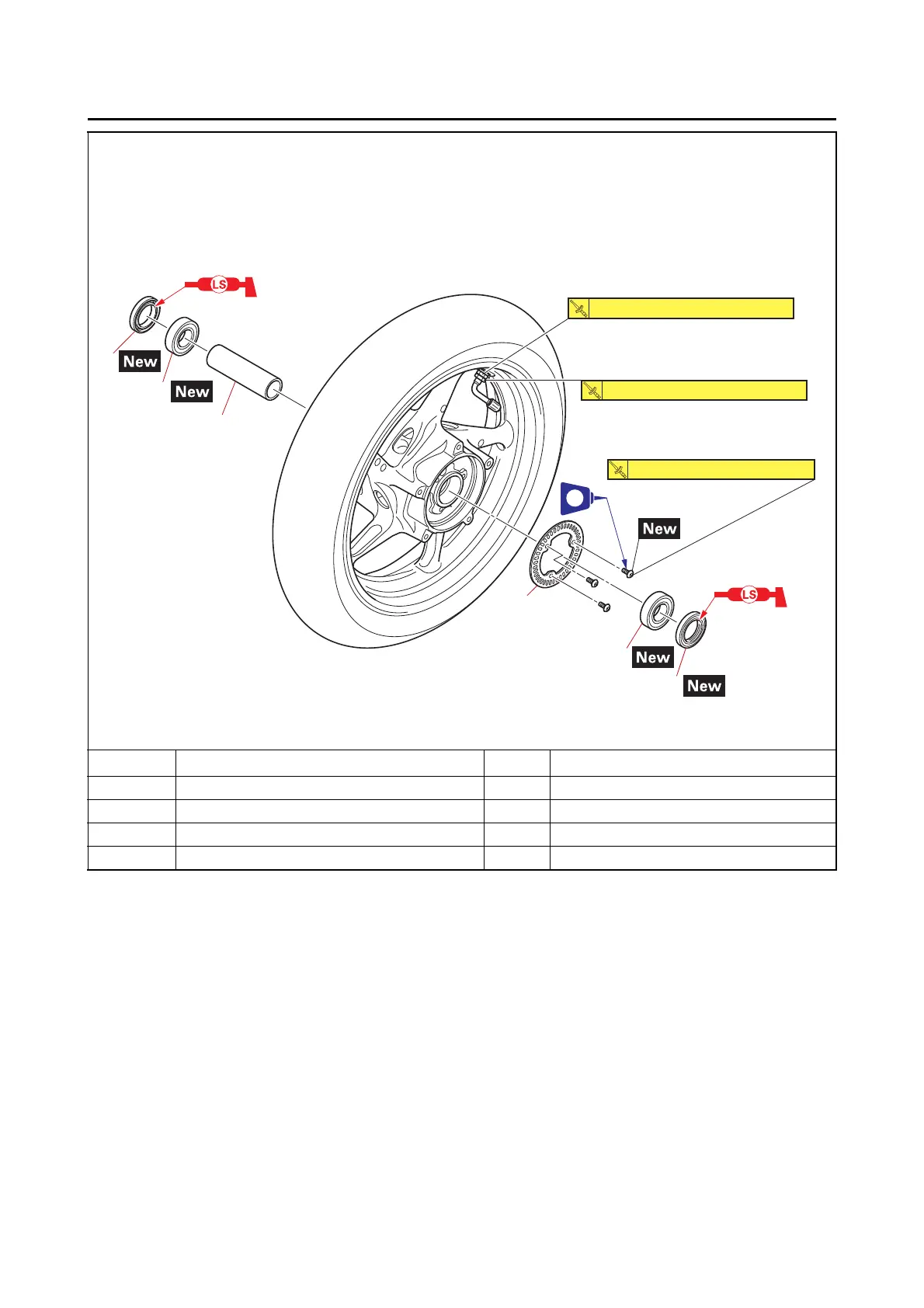

Disassembling the front wheel
Order Job/Parts to remove Q’ty Remarks
1 Front wheel sensor rotor 1
2 Oil seal 2
3 Wheel bearing 2
4Collar 1
LT
8 N・m (0.8 kgf・m, 5.9 lb・ft)
2.0 N・m (0.20 kgf・m, 1.5 lb・ft)
3.0 N・m (0.30 kgf・m, 2.2 lb・ft)
1
2
3
4
2
3
