7-2
FUEL TANK

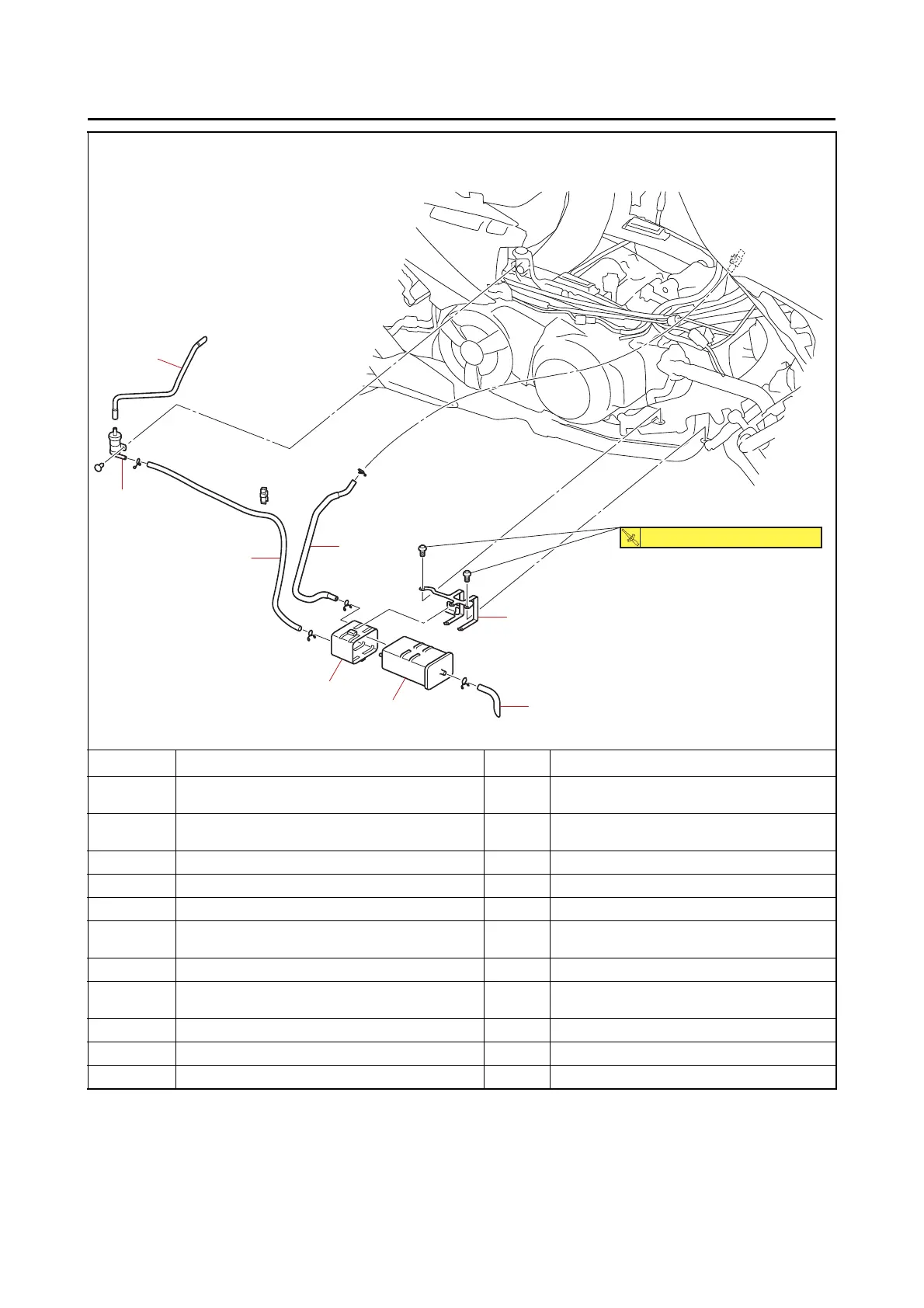

Removing the rollover valve and canister
Order Job/Parts to remove Q’ty Remarks
Bottom side cowling/Side panel/Bottom center
cowling
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
Center cover/Fuel tank cover assembly/Side
cover/Rear side cowling assembly/Footboard
Refer to “GENERAL CHASSIS (2)” on
page 4-11.
Fuel tank Refer to “FUEL TANK” on page 7-1.
1 Canister breather hose 1
2 Canister purge hose (hose joint to canister) 1
3
Fuel tank breather hose (rollover valve to canis-
ter)
1
4 Rollover valve 1
5
Fuel tank breather hose (fuel tank to rollover
valve)
1
6 Canister bracket 1
7 Canister holder 1
8 Canister 1
1
6
2
5
3
4
8
7
••
7 N m (0.7 kgf m, 5.2 lb
•
ft)
T.R.
To Next Page
