4-3
GENERAL CHASSIS (1)

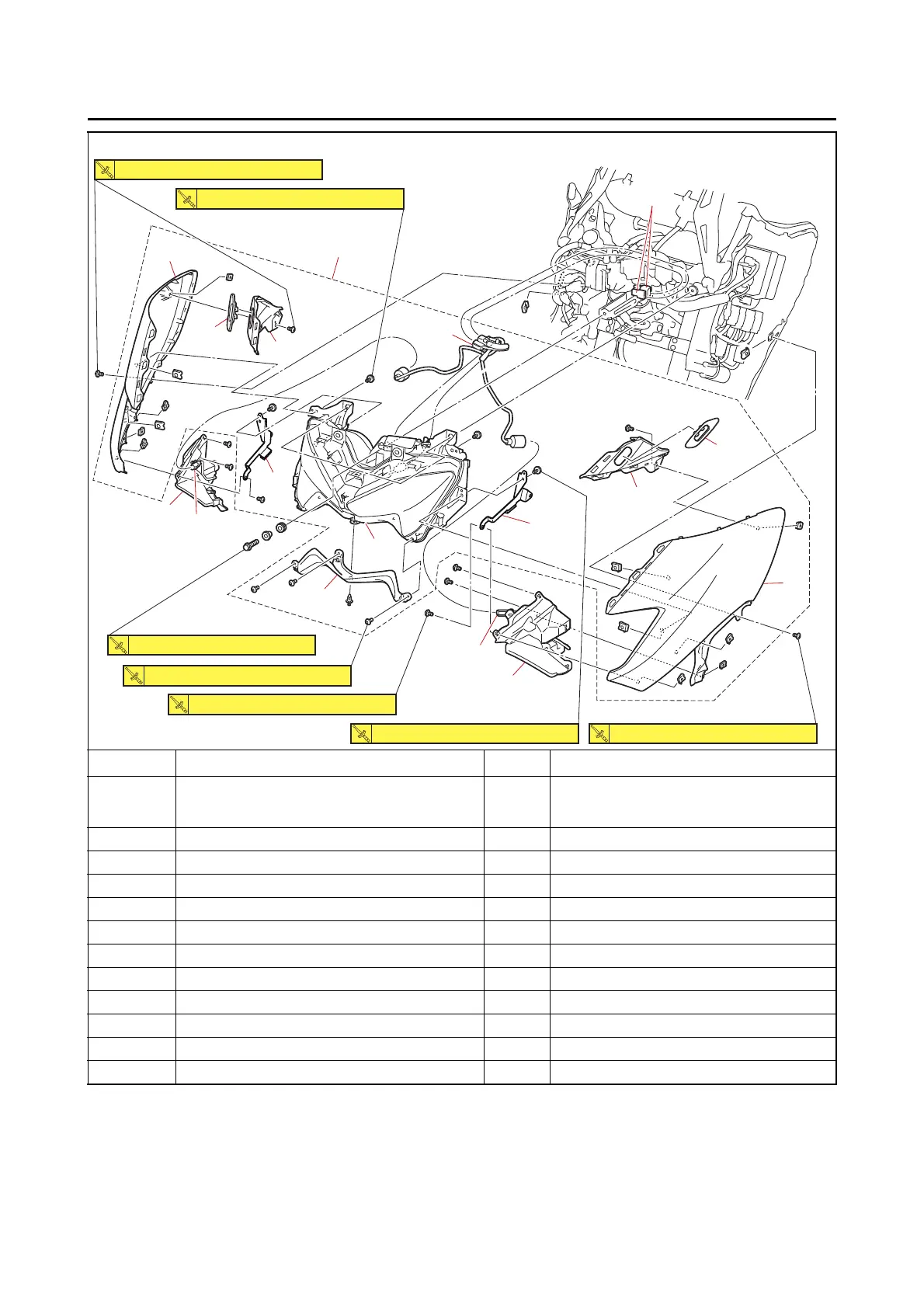

Removing the front turn signal light and front cowling assembly
Order Job/Parts to remove Q’ty Remarks
Windshield/Front cover/Rearview mirror/Wind-
shield inner panel/Bottom side cowling/Side
panel
Refer to “GENERAL CHASSIS (1)” on
page 4-1.
1 Front turn signal light coupler 2 Disconnect.
2 Front turn signal light 2
3 Headlight assembly coupler 2 Disconnect.
4 Front cowling assembly 1
5 Side cowling 2
6 Front turn signal light bracket 2
7 Headlight under panel 1
8 Headlight sub-wire harness 1
9 Headlight 1
10 Plate 2
11 Rearview mirror adaptor 2
1
2
1
2
3
4
5
5
6
6
7
8
9
10
11
10
11
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
4.0 N・m (0.40 kgf・m, 3.0 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
4.0 N・m (0.40 kgf・m, 3.0 lb・ft)
2.8 N・m (0.28 kgf・m, 2.1 lb・ft)
7 N・m (0.7 kgf・m, 5.2 lb・ft)
To Next Page
