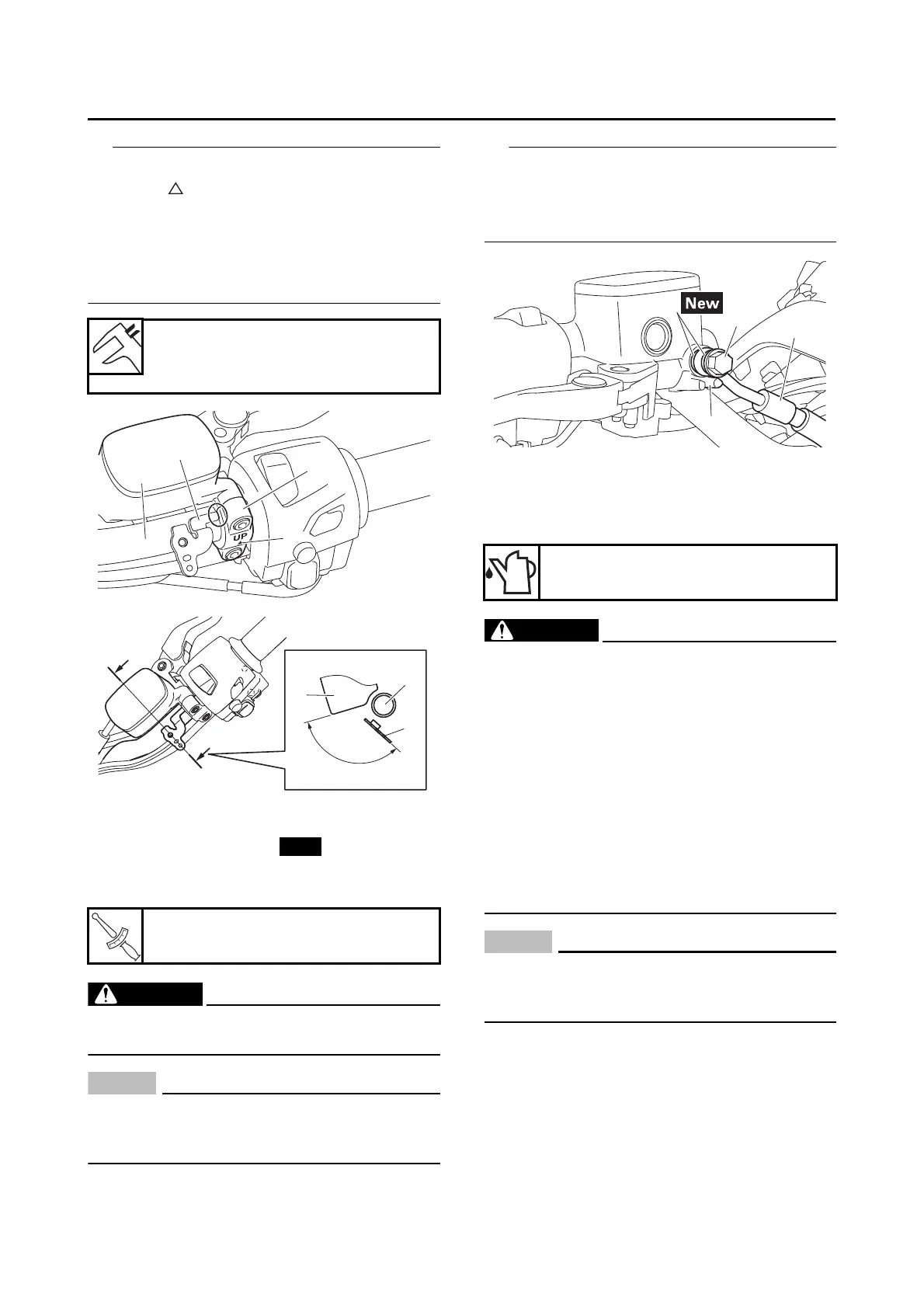

4-48
FRONT BRAKE
• Install the front brake master cylinder holder
with the “ ” mark “a” facing up.
• Make sure that brake master cylinder assem-
bly touches the end of handlebar bracket “b”.
• Install the brake master cylinder assembly to
the handlebar “3” at the specified angle “c”.
• First, tighten the upper bolt, then the lower bolt.
2. Install:
• Brake hose gasket “1”
• Brake hose “2”
• Brake hose union bolt “3”
EWA13531
Proper brake hose routing is essential to in-
sure safe vehicle operation.
ECA14160
When installing the brake hose onto the
brake master cylinder, make sure the brake
pipe touches the projection “a” as shown.
Turn the handlebar to the left and right to make
sure the brake hose does not touch other parts
(e.g., wire harness, cables, leads). Correct if
necessary.
3. Fill:
• Brake master cylinder reservoir
(with the specified amount of the specified
brake fluid)
WARNING
EWA13540
• Use only the designated brake fluid. Other
brake fluids may cause the rubber seals to
deteriorate, causing leakage and poor
brake performance.
• Refill with the same type of brake fluid that
is already in the system. Mixing brake fluids
may result in a harmful chemical reaction,
leading to poor brake performance.
• When refilling, be careful that water does
not enter the brake master cylinder reser-
voir. Water will significantly lower the boil-
ing point of the brake fluid and could cause
vapor lock.
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean up
any spilt brake fluid immediately.
4. Bleed:
• Brake system
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-16.
Angle “c” (brake master cylinder
and handlebar bracket)
120.1–122.7
Front brake hose union bolt
30 N·m (3.0 kgf·m, 22 lb·ft)
1
3
b
c
Specified brake fluid
DOT 4
To Next Page
