7-14
THROTTLE BODY
• Yamaha diagnostic tool (A/I) (90890-03264) in-
cludes YDT sub harness (6P) (90890-03266).
• If you already have Yamaha diagnostic tool (A/
I) (90890-03262), YDT sub harness (6P)
(90890-03266) is separately required.
• For information about using the YDT, refer to
the operation manual that is included with the
tool.
e. Diagnostic code number “01” is selected.

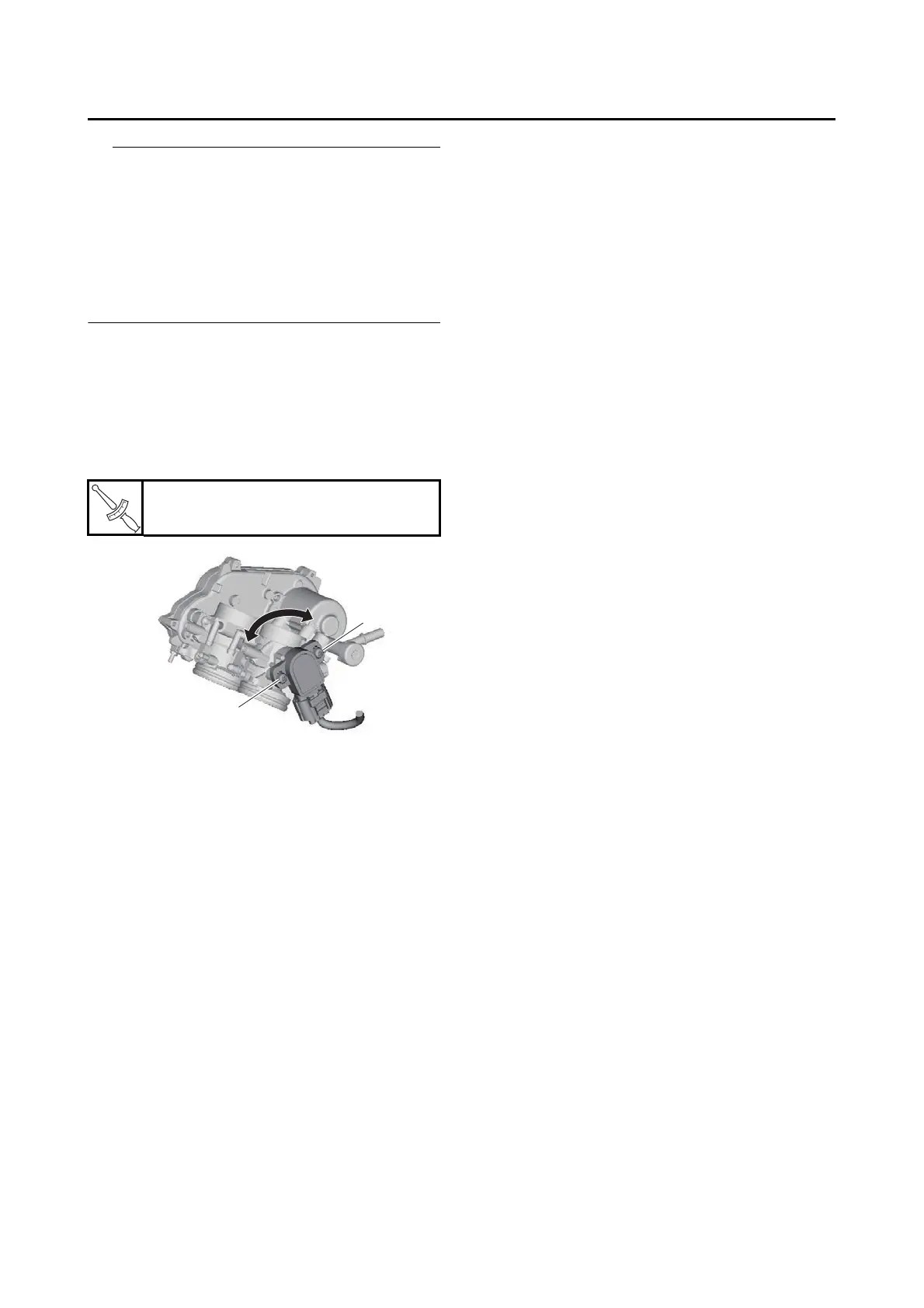

f. Adjust the position of the throttle position
sensor angle so that 11–20 can appear in
the YDT screen.
g. After adjusting the throttle position sensor
angle, tighten the throttle position sensor
screws “2”.
Throttle position sensor screw
3.5 N·m (0.35 kgf·m, 2.6 lb·ft)
