9-78
P0107, P0108
Short circuit check
TIP
Disconnect the ECU related connectors before checking.
Refer to “PARTS CONNECTED TO THE ECU” on page 9-3.
Ground short circuit check “A”
Lines short circuit check “B”

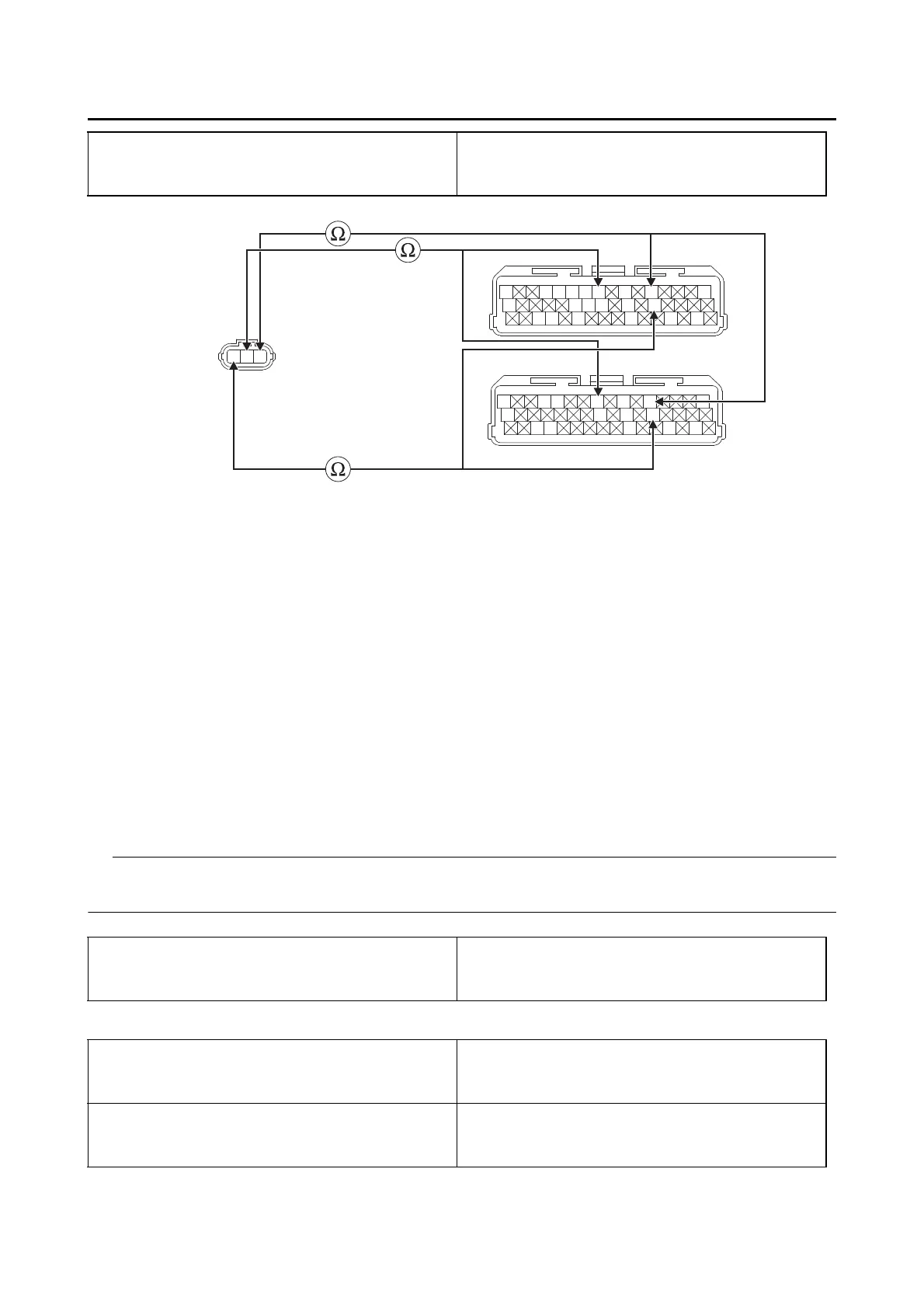

Between intake air pressure sensor coupler “1”
and ECU coupler “2”
[P0108] black/blue–black/blue
[P0107, P0108] pink–pink
[P0108] blue–blue
B/Y
L
Y/G
P
Lg/L
O/WW/G
Y/L
Lg/W
B/L
Br/W
Gy/G
G/L
R/G
Lg/L
W/G
W/Y
G/R
Lg/B
L/W
Lg
B/Y
L
Y/G
P
W/G
Y/L
Lg/W
B/L
Br/W
Gy/G
Lg/L
W/G
W/Y
G/RL/W
Lg
B/L
PL
1
2
*
2
**
*. XP560D
**. XP560E
Is resistance 0 ?
YES
Go to “Short circuit check”.
NO
a. Replace the wire harness.
b. Push the ON/start switch, and then check the condition of the DTC using the malfunction mode
of the YDT.
Is it in the “Recovered” condition?
YES
Go to step 7, and complete the service.
NO
Go to “Short circuit check”.
Between intake air pressure sensor coupler “1”
and ground
[P0108] black/blue–ground
[P0107, P0108] pink–ground
[P0108] blue–ground
Intake air pressure sensor coupler “1”
[P0108] black/blue–any other coupler terminal
[P0107, P0108] pink–any other coupler terminal
[P0108] blue–any other coupler terminal
ECU coupler “2”
[P0108] black/blue–any other coupler terminal
[P0107, P0108] pink–any other coupler terminal
[P0108] blue–any other coupler terminal
