P0112, P0113
4. Installed condition of intake air temperature sensor.
• Check for looseness or pinching.
Refer to “GENERAL CHASSIS (3)” on page 4-17.
5. Defective intake air temperature sensor.
• Execute the diagnostic mode. (Code D05)
• When engine is cold: Displayed temperature is close to the ambient temperature.
• The displayed temperature is not close to the ambient temperature Check the intake air tempera-
ture sensor.
Refer to “CHECKING THE INTAKE AIR TEMPERATURE SENSOR” on page 8-111.
B/Y
L
Y/G
P
Lg/L
O/WW/G
Y/L
Lg/W
B/L
Br/W
Gy/G
G/L
R/G
Lg/L
W/G
W/Y
G/R
Lg/B
L/W
Lg
B/Y
L
Y/G
P
W/G
Y/L
Lg/W
B/L
Br/W
Gy/G
Lg/L
W/G
W/Y
G/RL/W
Lg
B/L
Br/W
B/L
Br/W
A B
11
2
*
2
**
*. XP560D
**. XP560E

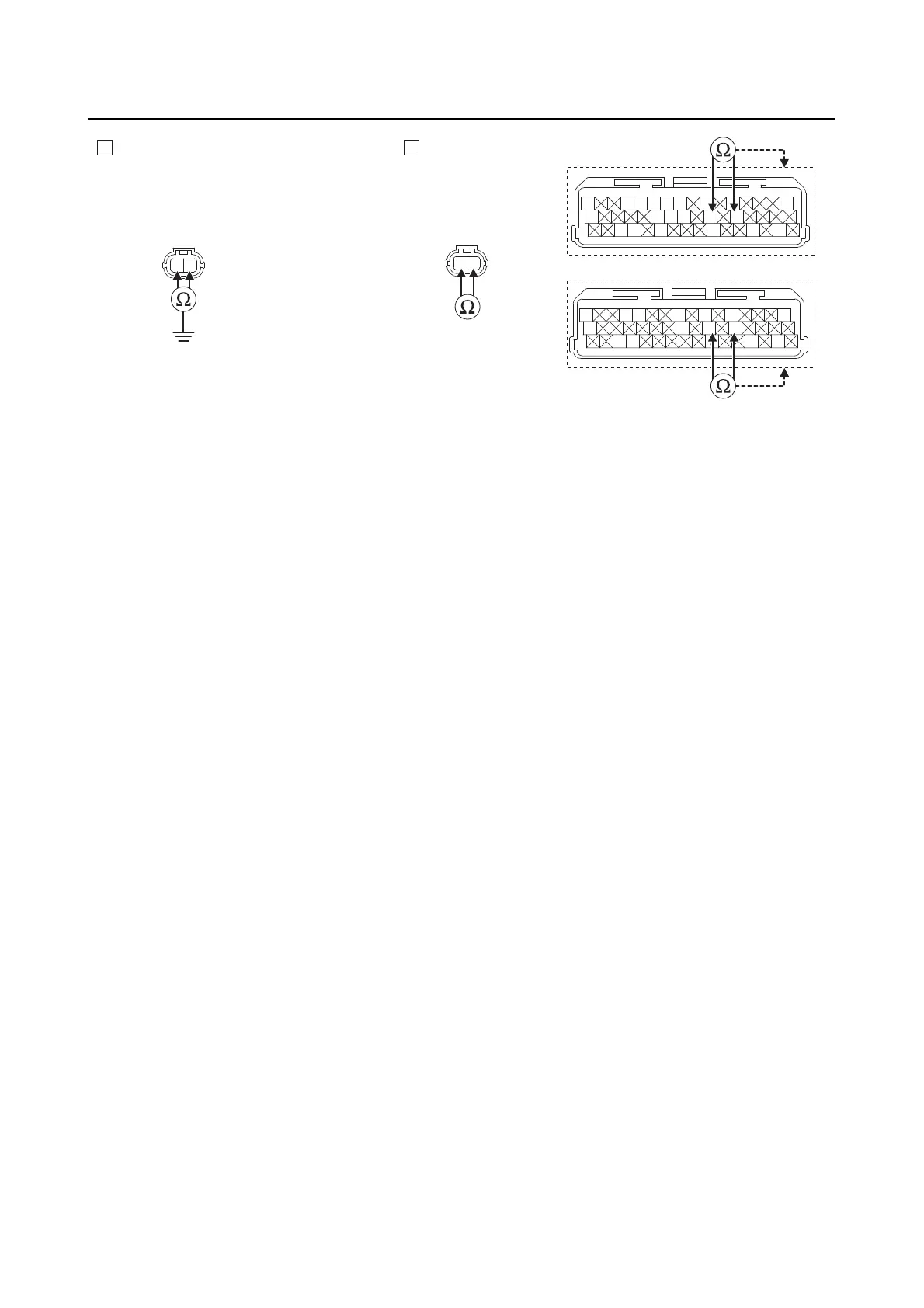

Is resistance ?
YES
Go to step 4.
NO
a. Replace the wire harness.
b. Push the ON/start switch, and then check the condition of the DTC using the malfunction mode
of the YDT.
Is it in the “Recovered” condition?
YES
Go to step 7, and complete the service.
NO
Go to step 4.
Is check result OK?
YES
Go to step 5.
NO
a. Reinstall the sensor.
b. Push the ON/start switch, and then check the condition of the DTC using the malfunction mode
of the YDT.
Is it in the “Recovered” condition?
YES
Go to step 7, and complete the service.
NO
Go to step 5.
To Next Page
