6.3 Drive Alarms, Faults, and Errors
262 YASKAWA ELECTRIC SIEP C710616 35D YASKAWA AC Drive E1000 Technical Manual
■ Minor Faults and Alarms
Table 6.6 give an overview of possible alarm codes. As conditions such as overvoltage can trip both a fault and alarm, it
is important to distinguish between faults and alarms in order to find the right corrective action.
If an alarm is detected, the ALM LED will blink and the alarm code display flashes. The majority of alarms will trigger a
digital output programmed for alarm output (H2- = 10). If the ALM LED lights without blinking, this means that a
fault has been detected (not an alarm). Information on fault codes can be found in Faults on page 261.

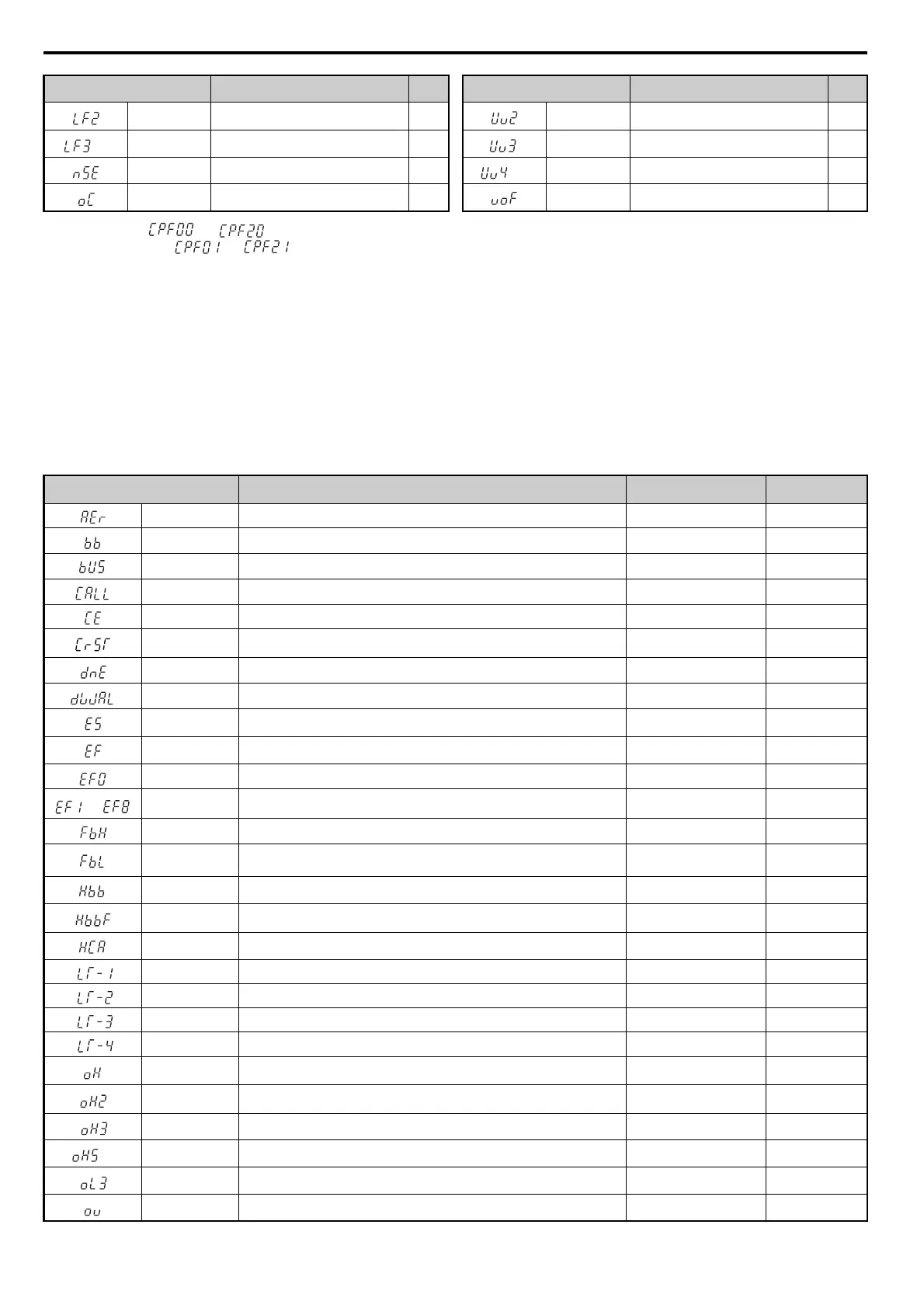

Table 6.6 Minor Fault and Alarm Displays
LF2 Current Imbalance 268 Uv2 Control Power Supply Undervoltage 274
<2>
LF3 Power Unit Output Phase Loss 3 268 Uv3 Soft Charge Circuit Fault 274
nSE Node Setup Error 269
<2>
Uv4 Gate Drive Board Undervoltage 274
oC Overcurrent 269 voF Output Voltage Detection Fault 274
<1> Displayed as or when occurring at drive power up. When one of the faults occurs after successfully starting the drive, the
display will show or .
<2> Occurs in models CIMR-E4A0930 and 4A1200.
<3> Valid from the drive software version S8001 and later.
Digital Operator Display Name
Minor Fault Output
(H2- = 10)
Page
AEr Station Number Setting Error (CC-Link, CANopen, MECHATROLINK-II) YES 275
bb Drive Baseblock No output 275
bUS Option Card Communications Error YES 275
CALL Serial Communication Transmission Error YES 275
CE MEMOBUS/Modbus Communication Error YES 275
CrST Cannot Reset YES 276
dnE Drive Disabled YES 276
dWAL DriveWorksEZ Alarm YES 266
E5 SI-T3 Watchdog Timer Error YES 267
EF Run Command Input Error YES 276
EF0 Option Card External Fault YES 276
to
EF1 to EF8 External Fault (input terminal S1 to S8) YES 276
FbH Excessive PI Feedback YES 276
FbL PI Feedback Loss YES 277
Hbb Hardwire Baseblock Signal Input YES 277
HbbF Hardwire Baseblock Signal Input YES 277
HCA Current Alarm YES 277
LT-1 Cooling Fan Maintenance Time No output <1> 277
LT-2 Capacitor Maintenance Time No output
<1> 277
LT-3 Soft Charge Bypass Relay Maintenance Time No output
<1> 277
LT-4 IGBT Maintenance Time (50%) No output
<1> 277
oH Heatsink Overheat YES 278
oH2 Drive Overheat Alarm YES 278
oH3 Motor Overheat YES 278
<2>
oH5 Motor Overheat (NTC Input) YES 278
oL3 Overtorque 1 YES 278
ov Overvoltage YES 278
Digital Operator Display Name Page Digital Operator Display Name Page
