Output
frequency
L4-02
Frequency
Detection 1 <1>
ON
OFF
L4-02
L4-01
L4-01

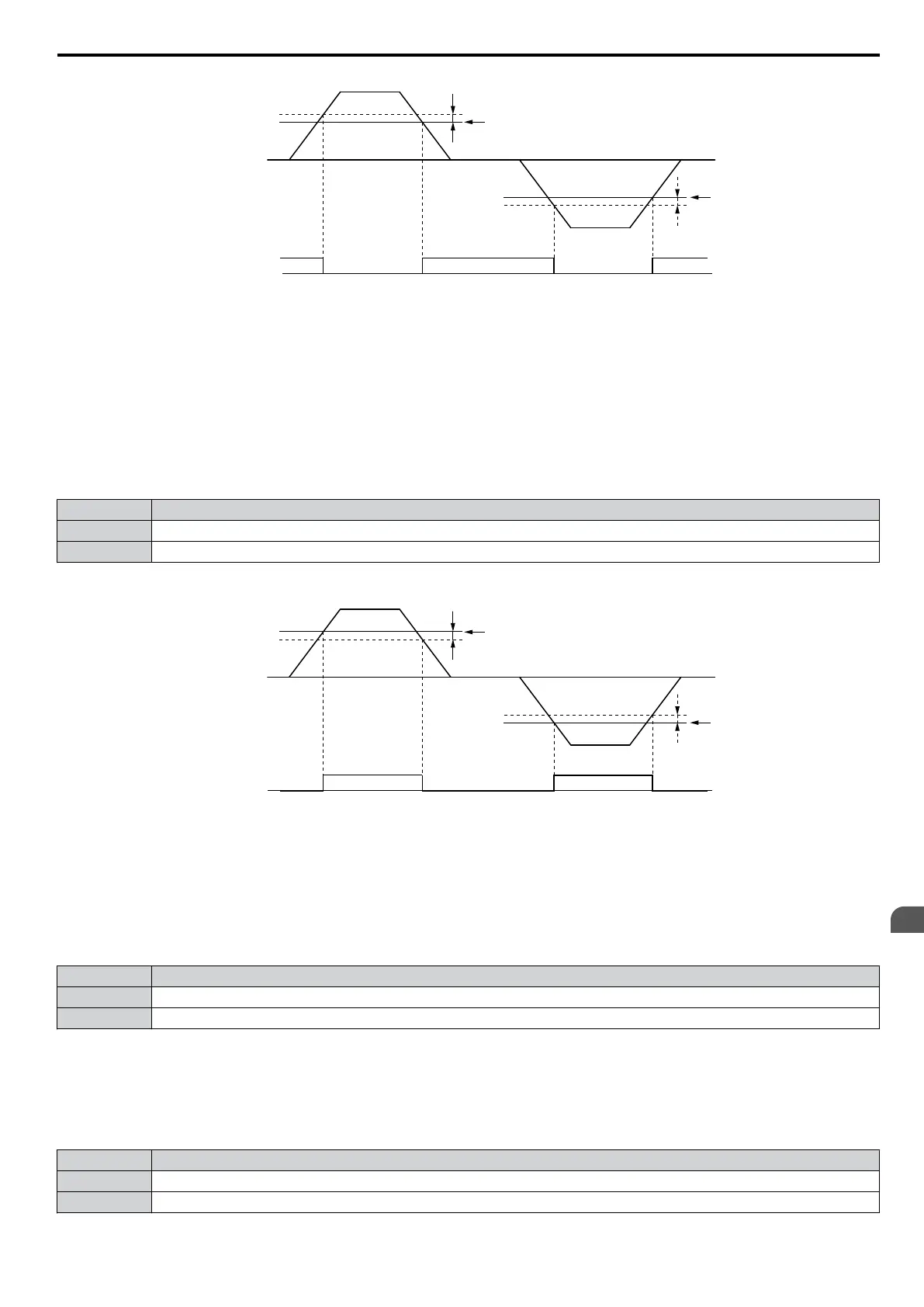

Figure 5.59 Frequency Detection 1 Time Chart
<1> This is the time chart when L4-07, Speed Agree Detection Selection, is set to 1 (Detection always enabled). The
default setting for L4-07 is 0 (No detection
during baseblock). When L4-07 is set to 0, the terminal opens during baseblock.
Refer to L4-01/02: Speed Agreement Detection Level and Detection Width on page 216 for details on setting the detection
width.
Setting 5: Frequency Detection 2
Output closes whenever the output frequency is equal to or above the detection level set in L4-01. The output opens when
the output frequency falls below L4-01 minus the hysteresis set in L4-02.
Status Description
Open Output frequency is below L4-01 minus L4-02 or has not exceeded L4-01.
Closed Output frequency exceeded L4-01.
Note: The detection works in both forward and reverse. The value of L4-01 will be used as the detection level for both directions.
Output
frequency
L4-02
Frequency
Detection 2
ON
OFF
L4-02
L4-01
L4-01
Figure 5.60 Frequency Detection 2 Time Chart
Refer to L4-01/02: Speed Agreement Detection Level and Detection Width on page 216 for details on setting the detection
width.
Setting 6: Drive Ready
Output closes whenever the drive is ready to operate the motor.
Status Description
Open During power up, initialization, fault or in Programming Mode (while b1-08 = 0 or 2).
Closed Drive is ready for operation.
Refer to b1-08: Run Command Selection while in Programming Mode on page 122 for details on the setting of b1-08.
Setting 7: DC Bus Undervoltage
Output closes whenever the DC bus voltage or control circuit power supply drops below the trip level. The undervoltage
trip level is determined by L2-05. A fault
in the DC bus charge circuit will also cause the DC Bus Undervoltage output to
close.
Status Description
Open DC bus voltage is above the level set to L2-05
Closed DC bus voltage has fallen below the trip level set to L2-05.
5.7 H: Terminal Functions
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
189
5
Parameter Details
