L4-02
L4-02
Frequency
reference
Output
frequency
Speed agree 1
ON
OFF

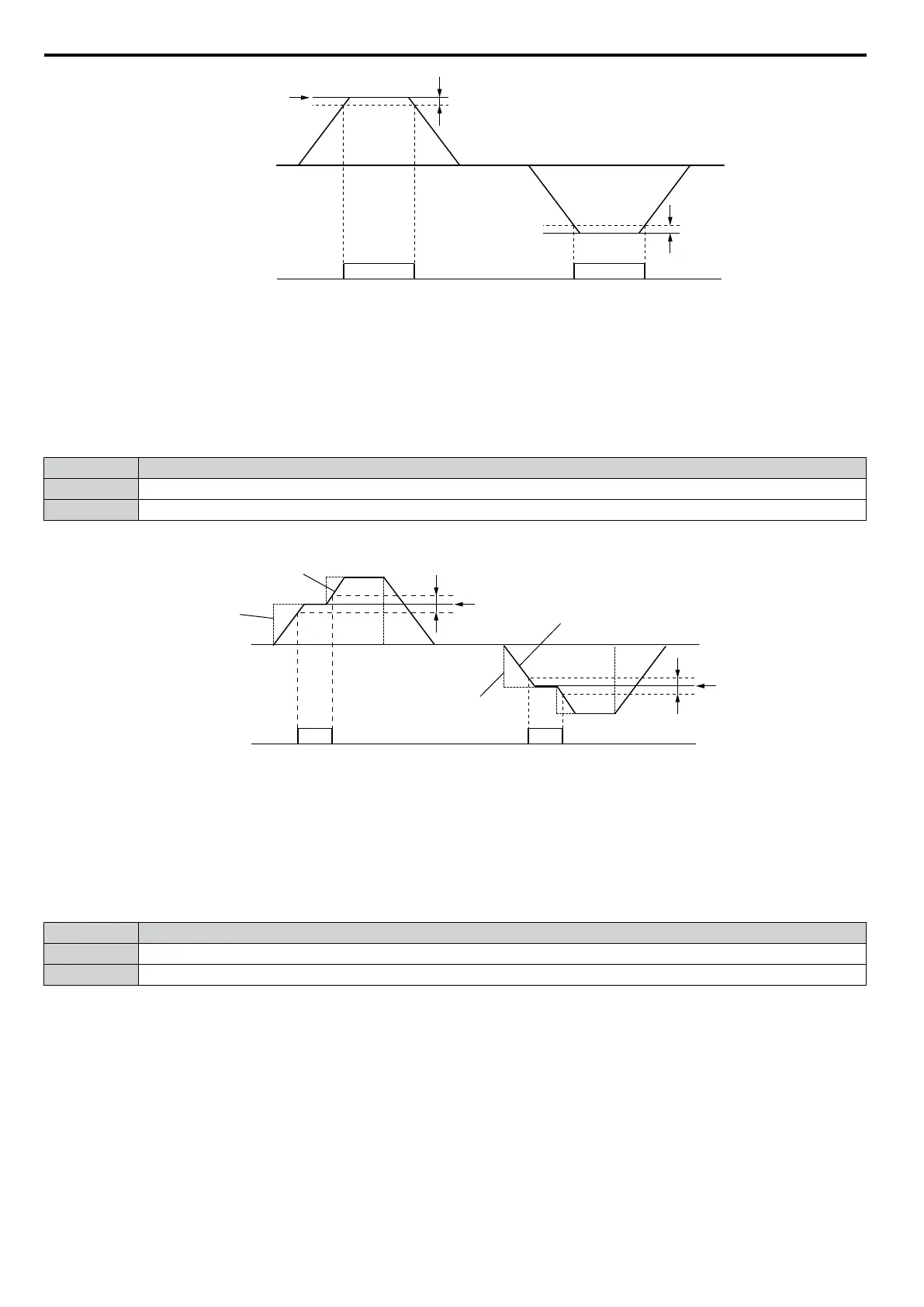

Figure 5.57 Speed Agree 1 Time Chart
Refer to L4-01/02: Speed Agreement Detection Level and Detection Width on page 216 for details on setting the detection
width.
Setting 3: User Set Speed Agree 1 (f
ref
/f
set
Agree 1)
Closes whenever the actual output frequency and the frequency reference are within the Speed Agree Width (L4-02) of
the programmed Speed Agree Level (L4-01).
Status Description
Open Output frequency or frequency reference are outside the range of L4-01 ± L4-02.
Closed Output frequency and the frequency reference are both with in the range of L4-01 ± L4-02.
Note: The detection works in both forward and reverse. The value of L4-01 will be used as the detection level for both directions.
Output
frequency
User Set
Speed Agree 1
OFF
ON
Frequency
reference
OFF
ON
Frequency
reference
Output
frequency
L4-01
+/- L4-02
L4-01
+/- L4-02
Figure 5.58 User Set Speed Agree 1 Time Chart
Refer to L4-01/02: Speed Agreement Detection Level and Detection Width on page 216 for details on setting the detection
width.
Setting 4: Frequency Detection 1
Output is
closed as long as the output frequency is below the detection level set in L4-01 plus the hysteresis set in L4-02.
It closes when the output frequency falls below L4-01.
Status Description
Open Output frequency exceeded L4-01 + L4-02.
Closed Output frequency is below L4-01 or has not exceeded L4-01 + L4-02.
Note: The detection works in both forward and reverse. The value of L4-01 will be used as the detection level for both directions.
5.7 H: Terminal Functions
188
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
