Setting 12: Timer Output
This setting configures a digital output terminal as output for the timer function. Refer to b4: Delay Timers on page 130
for details.
Setting 13: Speed Agree 2 (f
ref
/f
out
Agree 2)
Closes whenever the actual output frequency is
within the Speed Agree Width (L4-04) of the current frequency reference
regardless of the direction.
Status Description
Open Output frequency does not match the frequency reference while the drive is running
Closed Output frequency is within the range of frequency reference ± L4-04
Note: The detection works in both forward and reverse.
L4-04
L4-04
Frequency
reference
Output
frequency
Speed Agree 2
ON
OFF

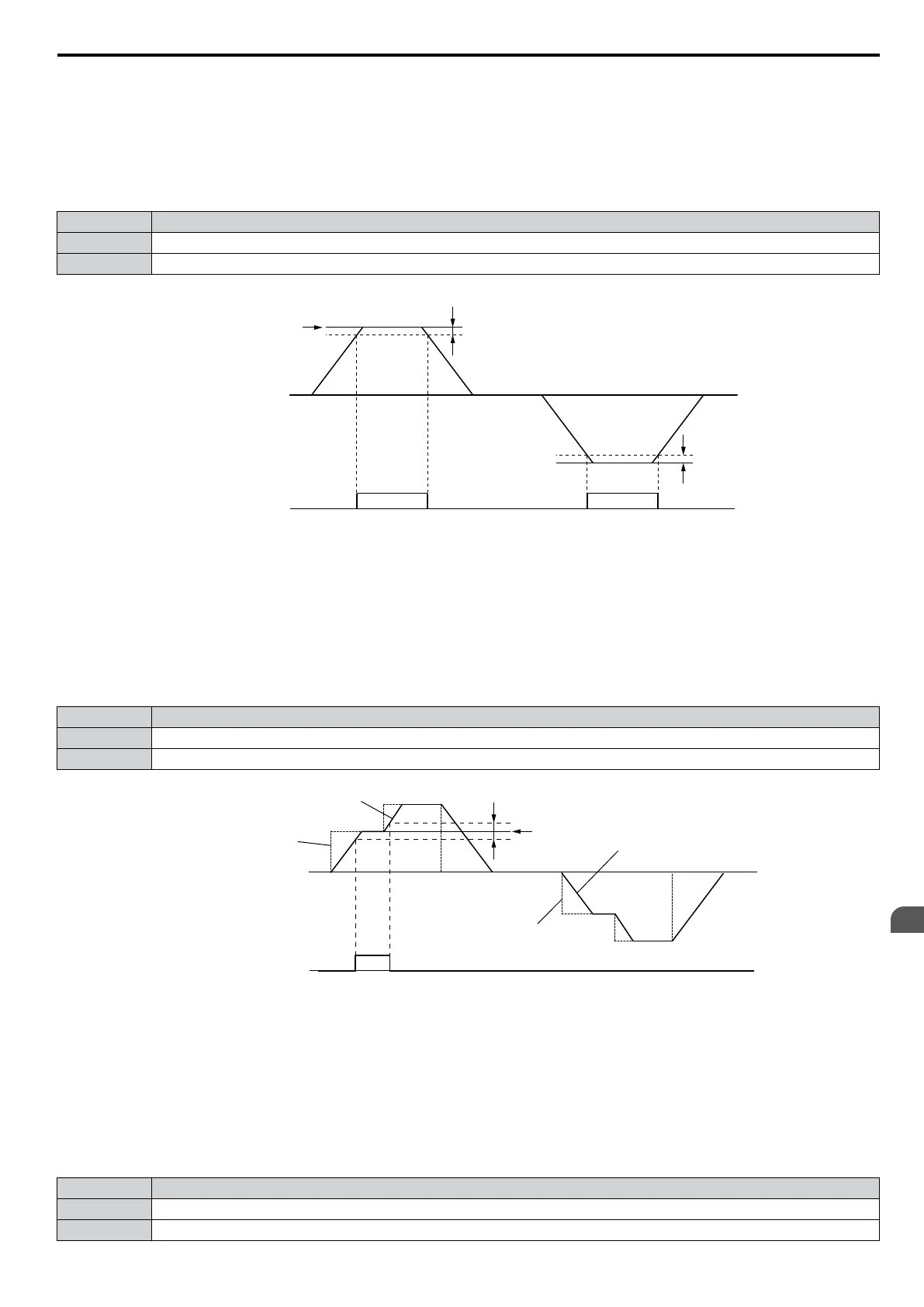

Figure 5.61 Speed Agree 2 Time Chart
Refer to L4-03/04: Speed Agreement Detection Level and Detection Width (+/-) on page 216 for details on setting the
detection width.
Setting 14: User Set Speed Agree 2 (f
ref
/f
set
Agree 2)
Closes whenever the actual output frequency and the frequency reference are within the Speed Agree Width (L4-04) of
the programmed Speed Agree Level (L4-03). As the
detection level L4-03 is a signed value, detection works in the specified
direction only.
Status Description
Open Output frequency or frequency reference are outside the range of L4-03 ± L4-04
Closed Output frequency and the frequency reference are both with in the range of L4-03 ± L4-04
+/- L4-04
L4-03
Output
frequency
User Set
Speed Agree 2
OFF
ON
Frequency
reference
Frequency
reference
Output
frequency
Figure 5.62 User Set Speed Agree 2 Example with Positive L3-04 Value
Refer to L4-03/04: Speed Agreement Detection Level and Detection Width (+/-) on page 216 for details on setting the
detection width.
Setting 15: Frequency Detection 3
Output is closed as long as the output
frequency is below the detection level set in L4-03 plus the hysteresis set in L4-04.
It closes when the output frequency falls below L4-03. As the detection level L4-03 is a signed value, the detection works
in the specified direction only.
Status Description
Open Output frequency exceeded L4-03 plus L4-04.
Closed Output frequency is below L4-03 or has not exceeded L4-03 plus L4-04 yet.
5.7 H: Terminal Functions
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
191
5
Parameter Details
