Output
frequency
L4-04
Frequency
detection 3 <1>
ON
OFF
L4-03

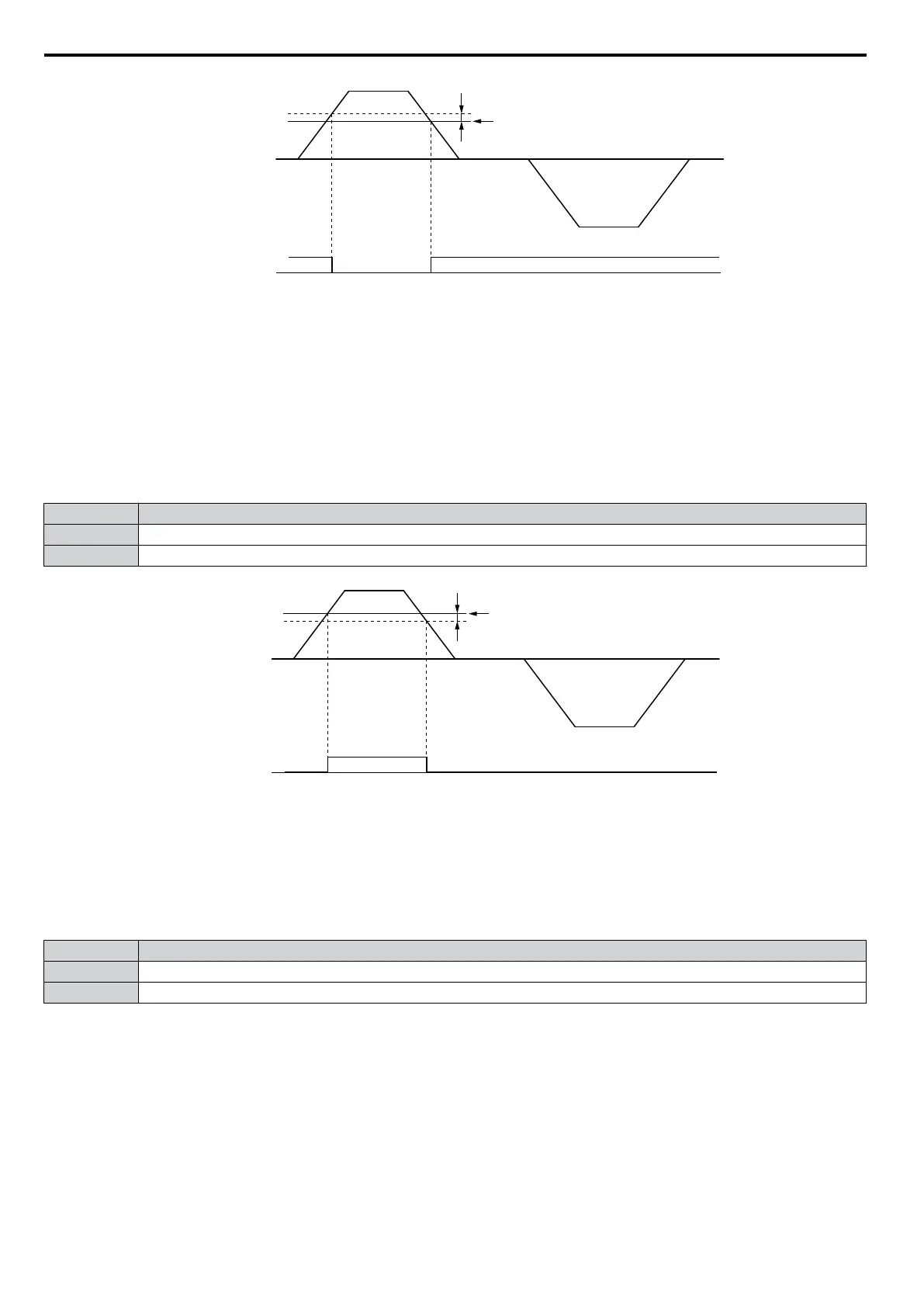

Figure 5.63 Frequency Detection 3 Example with Positive L3-04 Value
<1> This is the time chart when L4-07, Speed Agree Detection Selection, is set to 1 (Detection always enabled). The
default setting for L4-07 is 0 (No detection
during baseblock). When L4-07 is set to 0, the terminal opens during baseblock.
Refer to L4-03/04: Speed Agreement Detection Level and Detection Width (+/-) on page 216 for details on setting the
detection width.
Setting 16: Frequency Detection 4
Output closes whenever the output frequency is equal to or above the detection level set in L4-03. The output opens when
the output frequency falls below L4-03 minus the hysteresis set in L4-04. As the detection level L4-03 is a signed value,
the detection works in the specified direction only.
Status Description
Open Output frequency is below L4-03 minus L4-04 or has not exceeded L4-03 yet.
Closed Output frequency exceeded L4-03.
Output
frequency
L4-04
Frequency
Detection 4
ON
OFF
L4-03
Figure 5.64 Frequency Detection 4 Example with Positive L3-04 Value
Refer to L4-03/04: Speed Agreement Detection Level and Detection Width (+/-) on page 216 for details on setting the
detection width.
Setting 1A: During Reverse
The During Reverse digital output will close whenever the drive is turning the motor in the reverse direction.
Status Description
Open Motor is driven in the forward direction or stopped.
Closed Motor is driven in reverse.
5.7 H: Terminal Functions
