YASKAWA V1000 Technical Manual

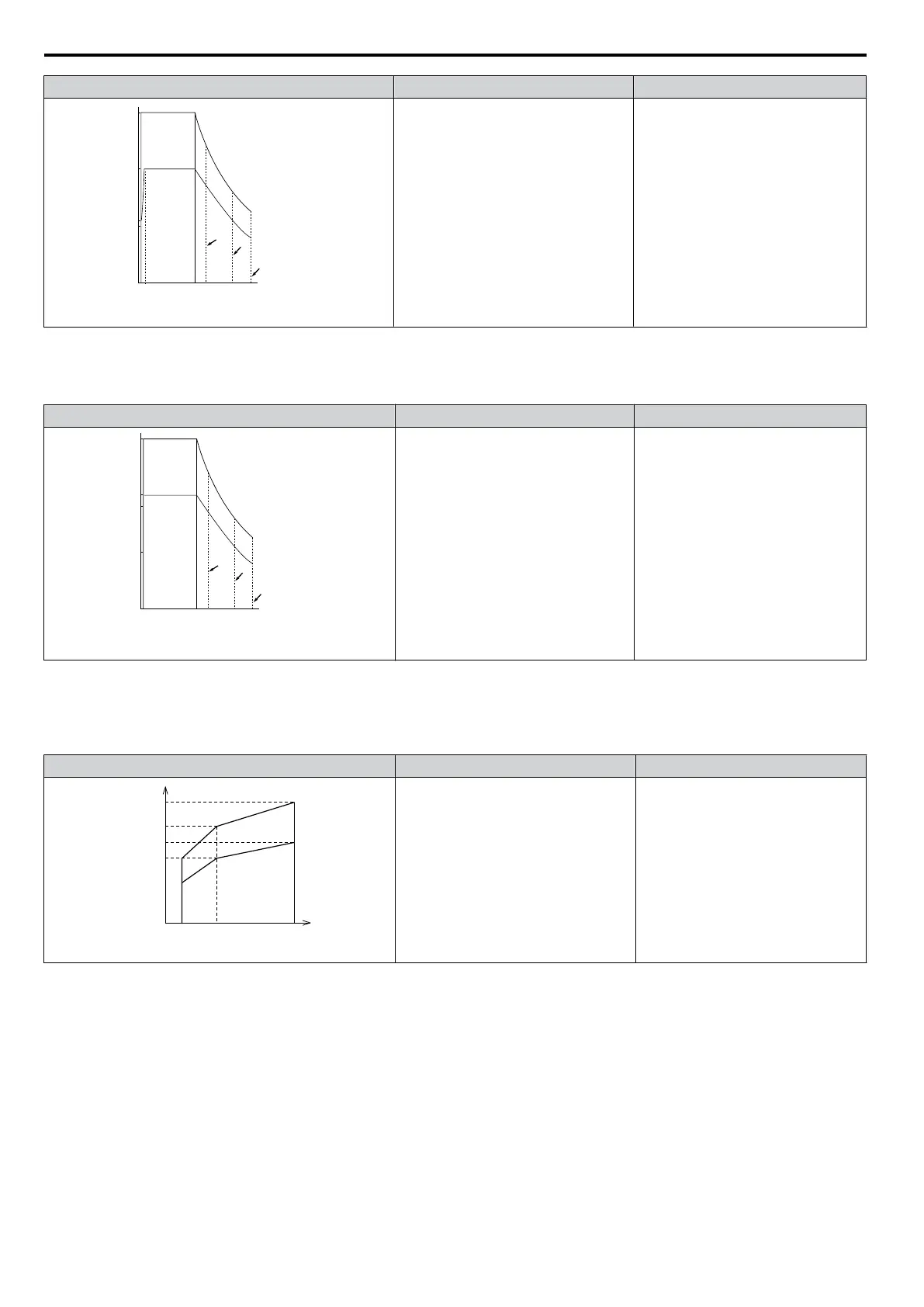

Overload Tolerance Cooling Ability Overload Characteristics
100
150
1
10
100120
167 200
55
50
0
Rated Speed=100% Speed
60 sec.
Continuous
A
D
B
(60 Hz)
Speed (%)
Torque (%)
Motor is designed to effectively cool
itself at speeds as low as 6 Hz.
Continuous operation with 100%
load from 6 Hz to 50/60 Hz.
Setting 3: Vector Motor (constant torque, 1:100)
Use this setting when operating a drive dedicated motor with a torque ratio of 1:100. This motor type is allowed to run
with 100% load from 1% up to 100% speed. Running slower speeds with full load can trigger an overload fault.
Overload Tolerance Cooling Ability Overload Characteristics
150
100
90
50
0
1
100
120
167
200
A
B
D
Continuous
Speed (%)
(60 Hz)
Rated Speed=100% Speed
Torque (%)
60 sec.
Motor is designed to effectively cool
itself at speeds as low as
approximately 0.6 Hz.
Continuous operation with 100%
load from 0.6 Hz to 50/60 Hz.
Setting 4: PM Derated Torque Motor
This setting is for operating a PM motor.
PM motors for derated torque have a self-cooling design, so the overload tolerance
drops as the motor slows. Electronic thermal overload is triggered in accordance with the motor overload characteristics,
providing overheat protection across the entire speed range.
Overload Tolerance Cooling Ability Overload Characteristics
150
Continuous
60 sec.
Motor Speed (%)
10 33
100
120
100
80
50
0
Torque (%)
Motor is designed to produce 100%
torque at base speed. Built with
effective cooling capabilities.
Reaching 100% when operating at
below the base frequency causes a
motor overload fault (oL1). The
drive fault output closes and the
motor coasts to stop.
Setting 6: General-Purpose Motor
Note: General-purpose motors are designed with a base speed that operates at line frequency (50/60 Hz depending on geographic region).
Because the motor is self-cooled, the overload tolerance
drops when the motor speed is lowered. The drive appropriately
adjusts the electrothermal trigger point according to the motor overload characteristics and protects the motor from overheat
throughout the entire speed range.
5.8 L: Protection Functions
204
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
