Setting 2: Fast-stop
If an overheat alarm occurs, the drive decelerates
to stop using the Fast-stop time (C1-09). If a digital output is programmed
for “fault” (H2-01/02/03 = E), this output will be triggered.
Setting 3: Alarm Only
If an overheat alarm occurs, an alarm is output and the drive continues operation.
Setting 4: Operation with Reduced Speed
If an overheat alarm occurs, the operation is continued but the speed is reduced to the level set in parameter L8-19. If after
10 s the oH alarm is still present, the speed is reduced once more. The amount of reduction depends on how often the alarm
repeats. If the oH alarm disappears while the drive is operating at a reduced speed, then the drive will switch back to the
previous speed it was reduced to before. Figure 5.90 explains the operation with reduced speed during an oH alarm. A
digital output programmed for 4D is switched when the oH alarm is still active after ten reduction cycles.
10 s
etc.
time
10 s 10 s 10 s 10 s 10 s 10 s
f
ref
× (L8-19)
f
ref
× (L8-19)
2
f
ref
× (L8-19)
4
f
ref
× (L8-19)
3
f
ref
Output frequency
Reset oH
Alarm
Reset oH
Alarm
Digital ouput (4D)
oH
Alarm
oH
Alarm
oH
Alarm
oH
Alarm
oH alarm number

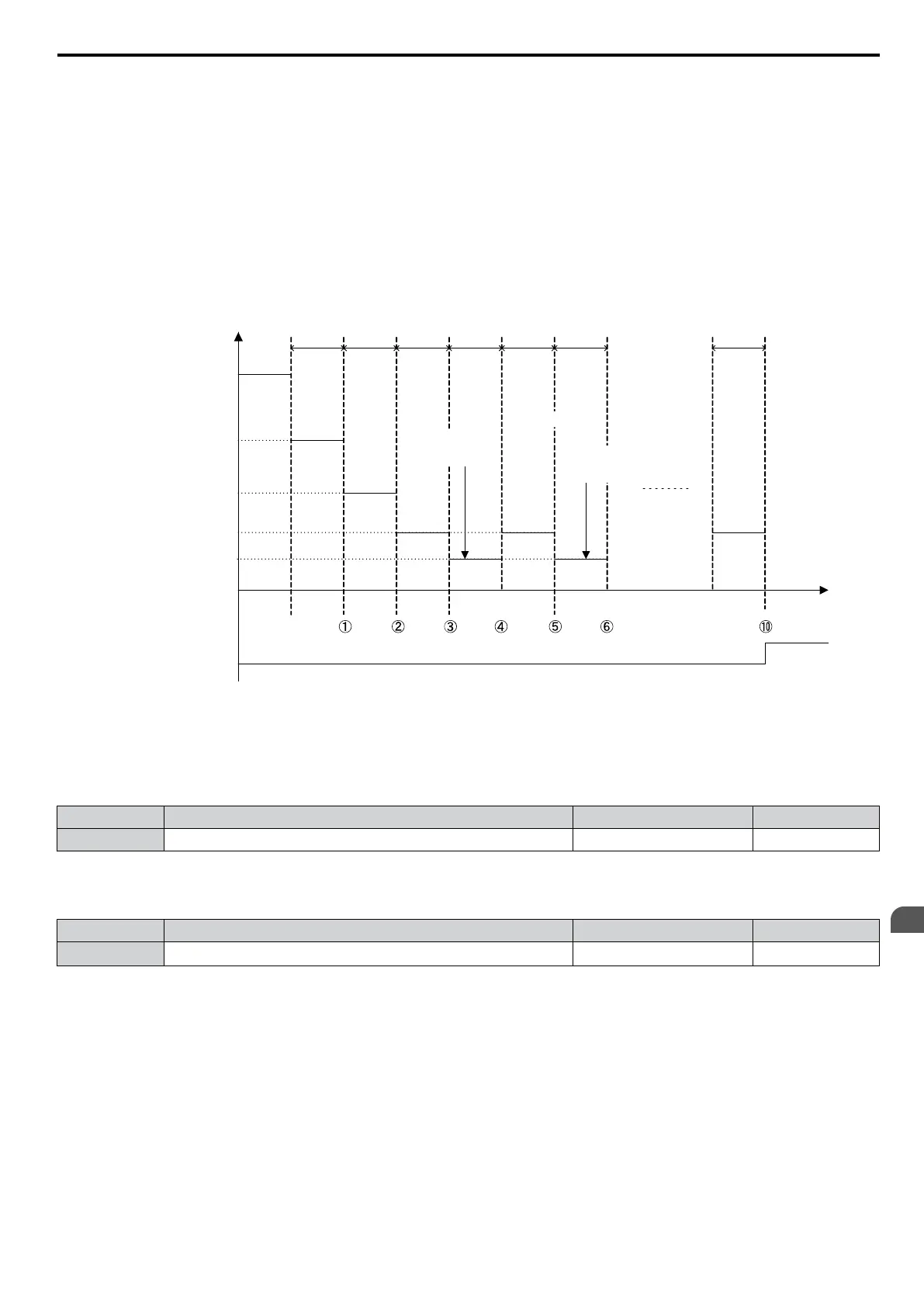

Figure 5.90 Output Frequency Reduction During Overheat Alarm
n
L8-19: Frequency Reduction Rate During Overheat Pre-Alarm
Specifies
how much the output frequency is reduced when L8-03 is set to 4 and an oH alarm is present. Set as a factor of
the maximum output frequency.
No. Name Setting Range Default
L8-19 Frequency Reduction Rate During oH Pre-Alarm 0.1 to 0.9 0.8
n
L8-05: Input Phase Loss Protection Selection
Enables or disables the input phase loss detection.
No. Name Setting Range Default
L8-05 Input Phase Loss Detection Selection 0 or 1
<1>
<1> Regional default settings:
Setting 0: Japan (Model code: CIMR-VAoA) and Asia (Model code: CIMR-VToA)
Setting 1: China (Model code: CIMR-VBoA)
Setting 0: Disabled
Setting 1: Enabled
Enables
the input phase loss detection. As detection
is performed by measuring the DC bus ripple, a phase loss fault (PF)
can also be triggered by power supply voltage imbalance or main circuit capacitor deterioration. Detection is disabled
when:
The drive is decelerating.
No Run command is active.
Output current is less than or equal to 30% of the drive rated current.
5.8 L: Protection Functions
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
225
