YASKAWA V1000 Technical Manual

Pull out the
ground terminal
pin in the direction
indicated by
the arrow.
Cable
Terminal

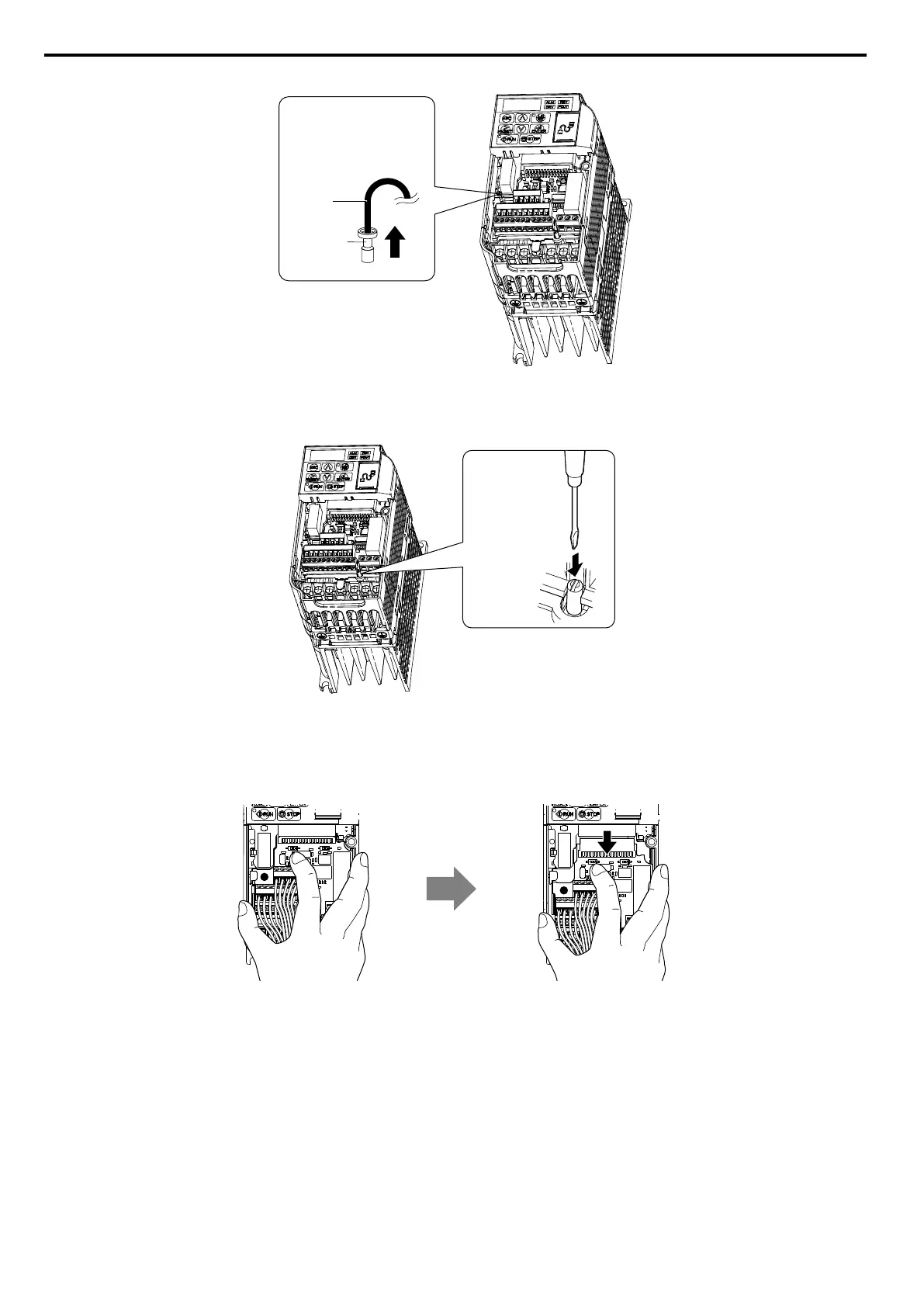

Figure 7.7 Pull Out the Ground Terminal
3.
Push down the installation pin on the terminal board with a screwdriver
Push down
the terminal
board locking
pin with a
screwdriver.
Figure 7.8 Depress the Plastic Tab
4.
While holding down the locking pin from step 3, slide the removable terminal block in the direction of the arrows
in Figure 7.9.
Figure 7.9 Remove the Terminal Board
7.5 Drive Replacement
300
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
