YASKAWA V1000 Technical Manual

Three-Phase 200 V / 400 V Class
C
D
H
D
I
E
J
B
F
G
A
L3
L2
L1
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
E
L1
PE
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
L3
L2
PE
A – Ground the cable shield
B
–
Enclosure panel
C
–
Metal plate
D
–
Grounding surface (remove any
paint or sealant)
E
–
Drive
F – Motor cable (braided shield cable,
max. 20 m)
G – Motor
H – Cable clamp
I – Wiring distance as short as
possible
J – EMC noise filter

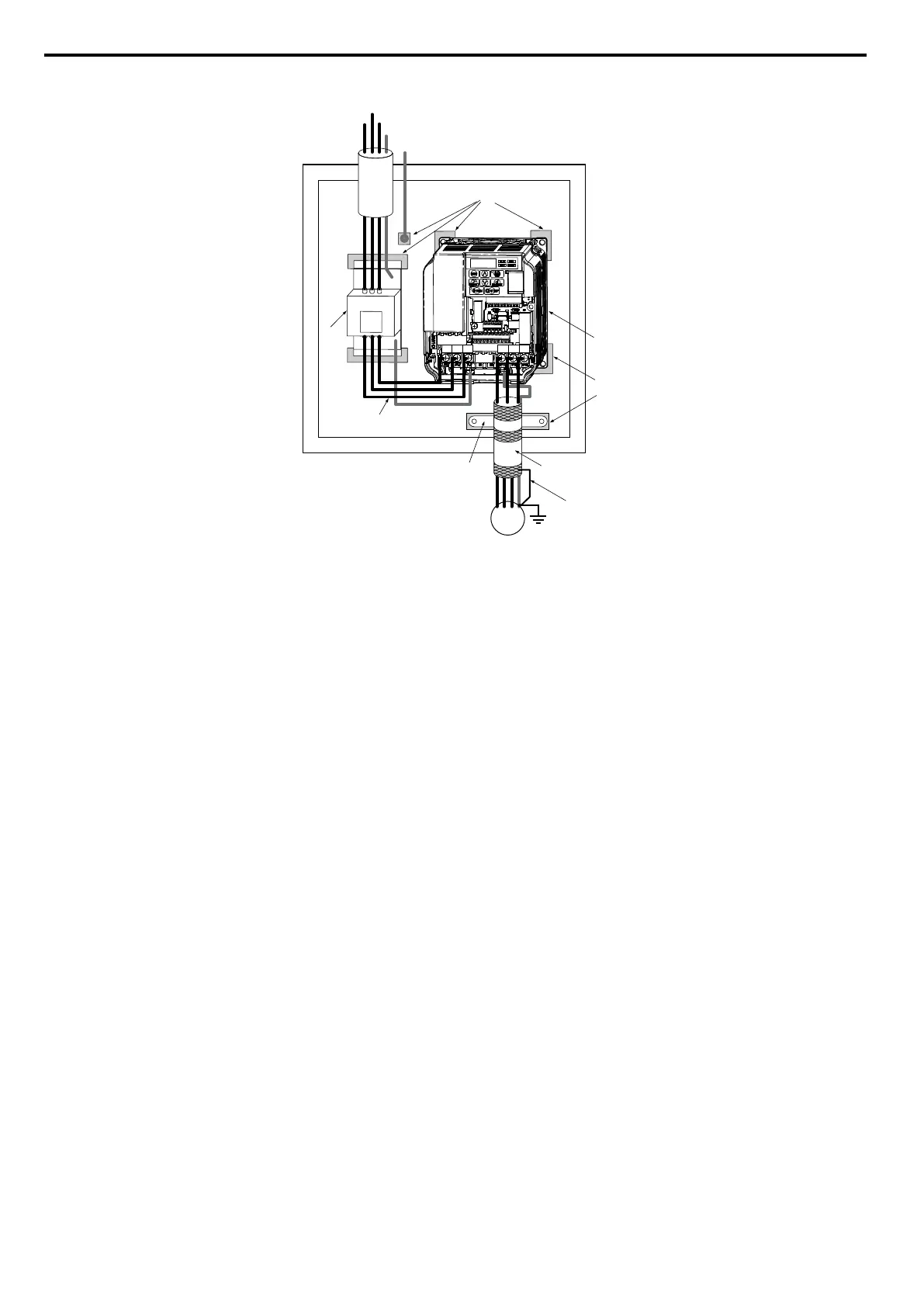

Figure D.5 EMC Filter and Drive Installation for CE Compliance
(Three-Phase 200 V / 400 V Class)
D.2 European Standards
438
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
