Single-Phase 200 V Class
C
D
D
I
E
J
B
G
A
F
H
N
L1
E
N
L1
PE
R/L1 S/L2 T/L3
U/T1 V/T2
W/T3
PE
A – Ground the cable shield
B – Enclosure panel
C – Metal plate
D – Grounding surface (remove any
paint or sealant)
E –
Drive
F – Motor cable (braided shield cable,
max. 20 m)
G – Motor
H – Cable clamp
I – Wiring distance as short as
possible
J – EMC noise filter

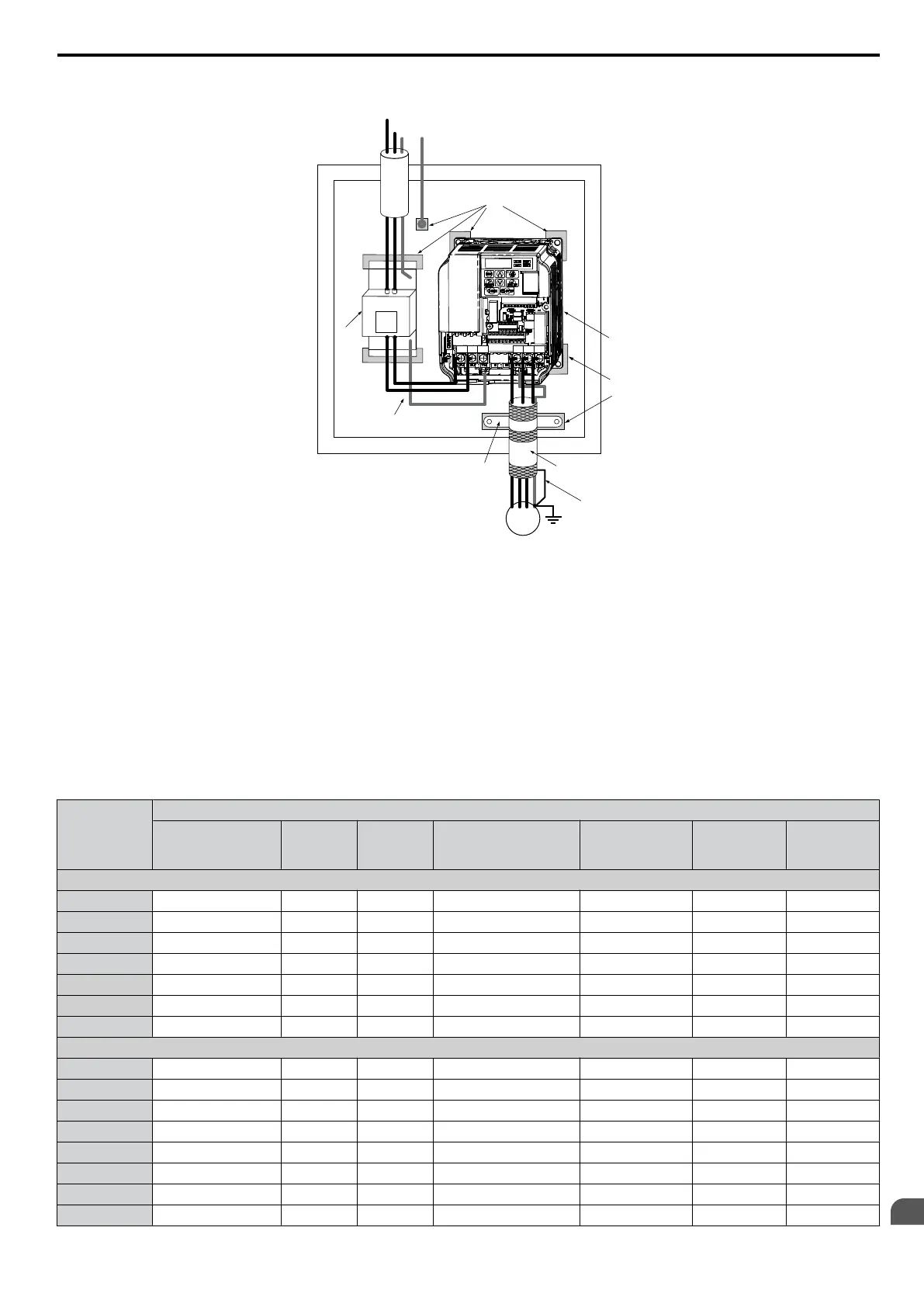

Figure D.6 EMC Filter and Drive Installation for CE Compliance (Single-Phase 200 V Class)
n
EMC Filters
The
drive should be installed with the EMC
filters listed below in order to comply with the IEC/EN 61800-3, category C1
requirements.
Table D.5 IEC/EN 61800-3 Category C1 Filters
Drive
Model
Filter Data (Manufacturer: Schaffner)
Type
Rated
Current
(A)
Weight
(kg)
Dimensions
[W x L x H] (mm)
Mounting
Dimensions
[Y x X] (mm)
Drive
Mounting
Screw A
Filter
Mounting
Screw
200 V Single-Phase Units
BA0001 FS23638-10-07 10 0.44 71 x 169 x 45 51 x 156 M4 M5
BA0002 FS23638-10-07 10 0.44 71 x 169 x 45 51 x 156 M4 M5
BA0003 FS23638-10-07 10 0.44 71 x 169 x 45 51 x 156 M4 M5
BA0006 FS23638-20-07 20 0.75 111 x 169 x 50 91 x 156 M4 M5
BA0010 FS23638-20-07 20 0.75 111 x 169 x 50 91 x 156 M4 M5
BA0012 FS23638-30-07 30 1.1 144 x 174 x 50 120 x 161 M4 M5
BA0018 FS23638-40-07 40 1.3 174 x 174 x 50 150 x 161 M4 M5
200 V Three-Phase Units
2A0001 FS23637-4-07 4 0.4 71 x 169 x 40 51 x 156 M4 M5
2A0002 FS23637-4-07 4 0.4 71 x 169 x 40 51 x 156 M4 M5
2A0004 FS23637-4-07 4 0.4 71 x 169 x 40 51 x 156 M4 M5
2A0006 FS23637-4-07 4 0.4 71 x 169 x 40 51 x 156 M4 M5
2A0008 FS23637-14-07 14 0.58 111 x 169 x 45 91 x 156 M4 M5
2A0010 FS23637-14-07 14 0.6 111 x 169 x 45 91 x 156 M4 M5
2A0012 FS23637-14-07 14 0.6 111 x 169 x 45 91 x 156 M4 M5
2A0018 FS23637-24-07 24 0.9 144 x 174 x 50 120 x 156 M4 M5
D.2 European Standards
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
439
D
Standards Compliance
