Drive
Model
Filter Data (Manufacturer: Schaffner)
Type
Rated
Current
(A)
Weight
(kg)
Dimensions
[W x L x H] (mm)
Mounting
Dimensions
[Y x X] (mm)
Drive
Mounting
Screw A
Filter
Mounting
Screw
2A0020 FS23637-24-07 24 0.9 144 x 174 x 50 120 x 161 M4 M5
2A0030 FS23637-52-07 52 2.0 137 x 304 x 56 100 x 289 M5 M5
2A0040 FS23637-52-07 52 2.0 137 x 304 x 56 100 x 289 M5 M5
2A0056 FS23637-68-07 68 2.6 175 x 340 x 65 130 x 325 M5 M6
2A0069 FS23637-80-07 80 3.1 212 x 393 x 65 167 x 378 M6 M8
400 V Three-Phase Units
4A0001 FS23639-5-07 5 0.5 111 x 169 x 45 91 x 156 M4 M5
4A0002 FS23639-5-07 5 0.5 111 x 169 x 45 91 x 156 M4 M5
4A0004 FS23639-5-07 5 0.5 111 x 169 x 45 91 x 156 M4 M5
4A0005 FS23639-10-07 10 0.7 111 x 169 x 45 91 x 156 M4 M5
4A0007 FS23639-10-07 10 0.7 111 x 169 x 45 91 x 156 M4 M5
4A0009 FS23639-10-07 10 0.7 111 x 169 x 45 91 x 156 M4 M5
4A0011 FS23639-15-07 15 0.9 144 x 174 x 50 120 x 161 M4 M5
4A0018 FS23639-30-07 30 1.8 137 x 304 x 56 100 x 289 M5 M5
4A0023 FS23639-30-07 30 1.8 137 x 304 x 56 100 x 289 M5 M5
4A0031 FS23639-50-07 50 2.7 175 x 340 x 65 130 x 325 M5 M6
4A0038 FS23639-50-07 50 2.7 175 x 340 x 65 130 x 325 M5 M6
Note: EMC filters for models BA0018 and 2A0030 through 2A0069 are in compliance with IEC/EN 61800-3, Category 2. All other models
comply with Category 1.
H
X
L
W
Y
LINE
A
PE
LOAD

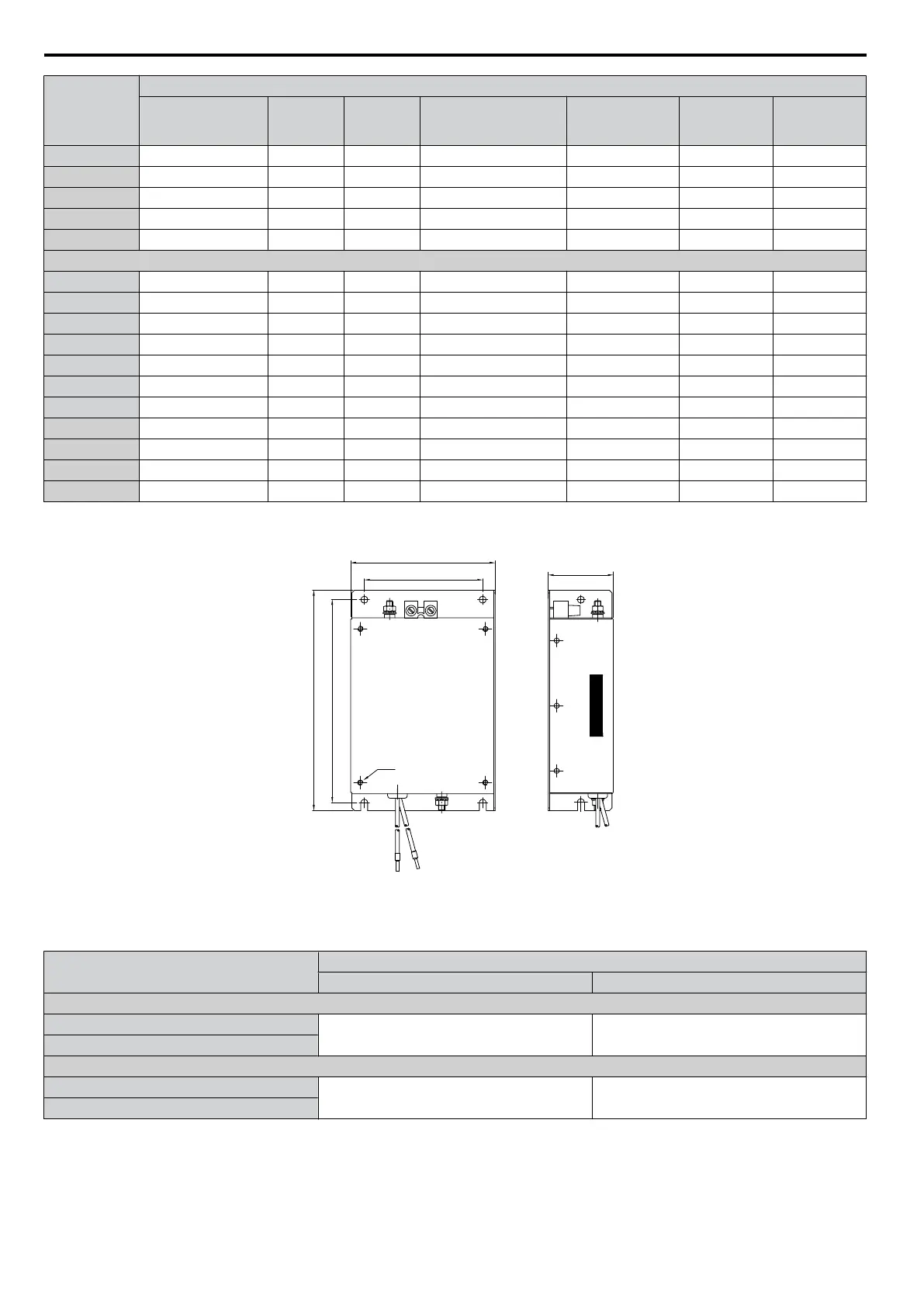

Figure D.7 EMC Filter Dimensions
n
DC Reactors for IEC/EN 61000-3-2 Compliance
Drive Model
DC Reactor
Model Rating
200V Three-Phase Units
2A0004
UZDA-B
5.4 A
8 mH
2A0006
400 V Three-Phase Units
4A0002
UZDA-B
3.2 A
28 mH
4A0004
Note: Models not listed in the above table do not require a DC reactor for EMC compliance.
D.2 European Standards
440
YASKAWA ELECTRIC SIEP C710606 16C YASKAWA AC Drive – V1000 Technical Manual
