YOKOGAWA ADMAG TI Series User Manual

<5. Functions>
105
IM 01E21A02-03EN

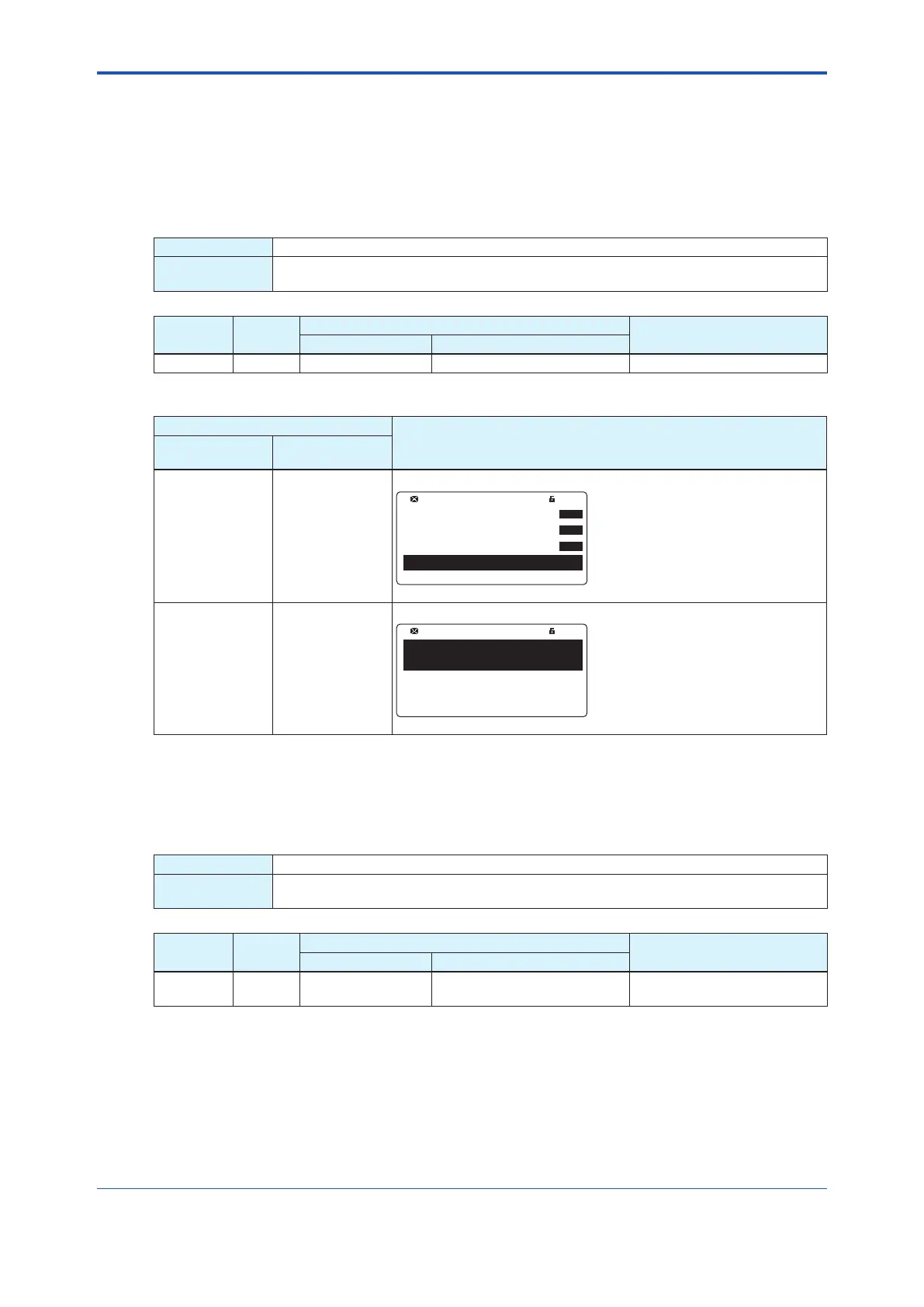

5.6.4 Alarm Display Setting
(1) Alarm display
If an error occurs on this product, an alarm appears on the display. The alarm display modes
areclassiedintotwotypes:onemodetodisplayaprocessvalueandalarmname,andanother
mode to display an alarm name and action.
If multiple alarms occur on this product, they will be displayed in sequence on the display.
Thesettingcanbeconguredwiththefollowingparameter.
Display Devicesetup►Detailedsetup►Displayset►Optionalcong
F
OUNDATION
Fieldbus
DeviceConguration►LTB►DeviceConguration►Conguration►DisplayOperation
Conguration►(seebelow)
Block
Name
Relative
Index
Parameter
Description
Display F
OUNDATION Fieldbus
LTB 30 Alarm display Display Alarm Speciesthealarmdisplay.
From the table below, select the alarm display.
Selection
Description
Display
F
OUNDATION
Fieldbus
Normal Normal Displays the process value and alarm name.
F0425.ai
01 : 00
VEL
AO1
FLP
SET SFT INC
0.00000 m/s
mA4.000
018: Coil open
0.0 %
Detail Detail Displays the alarm name and action.
F0426.ai
01 : 00
SET SFT INC
System Alarm
Cut the power and
check coil & EX cable.
018: Coil open
(2) Alarm display based on NAMUR NE107
AprexcanbeassignedtothealarmnamebasedonNAMURNE107.
Thesettingcanbeconguredwiththefollowingparameter.
Menu path
Display Devicesetup►Detailedsetup►Displayset►Optionalcong►(seebelow)
F
OUNDATION
Fieldbus
DeviceConguration►LTB►DeviceConguration►Conguration►DisplayOperation
Conguration►(seebelow)
Block
Name
Relative
Index
Parameter
Description
Display F
OUNDATION Fieldbus
LTB 29 NE107 display Display NE107
Sets the alarm display based
on NAMUR NE107.
