Block Start Index
DI3 function block 6200
PID function Block 8000
MAO function block 10000
IT1 function block 16000
IT2 function block 16100
AR function block 17500
2.3 Logical Structure of Each Block
ADMAG TI
Fieldbus
System/Network management VFD
FBAP VFD
Link Master
PD tag
Resource Block
Block tag
Parameters
Parameters
VCR
Node address
Function block
schedule
Local display
Transducer block
Block tag
Parameters
Diagnostic
Transducer block
Block tag
Parameters
Maintenance
Transducer block
Block tag
Parameters
Indicator
From
sensor
Sensor
Transducer block
Block tag
Parameters
PID function block
AR function block
IT function block (x 2)
DI function block (x 3)
MAO function block
AI function block
（AXG: x 4、AXW: x 3）
To/From
other block
OUT
Block tag
Parameters
F0201.ai

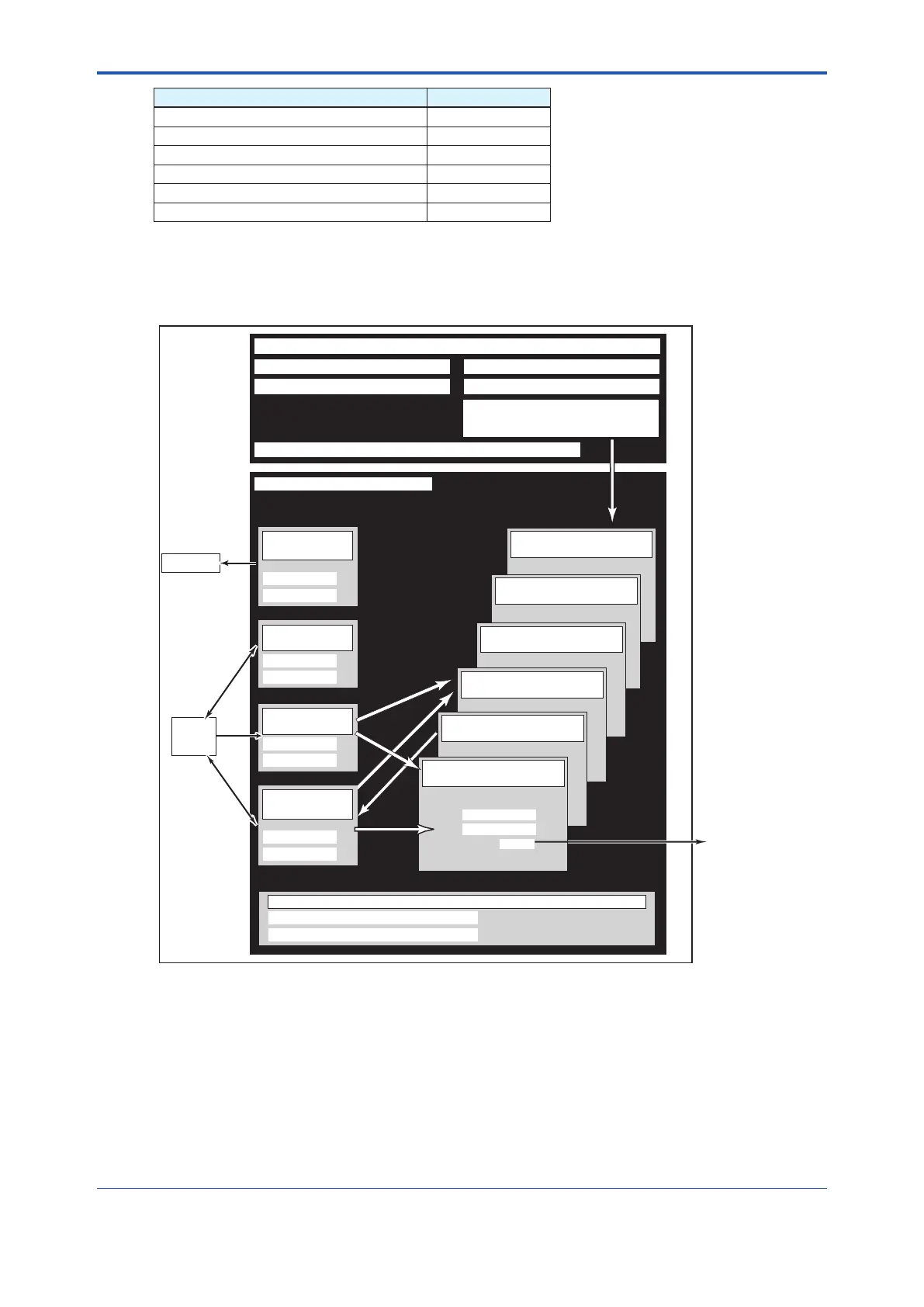

Figure 2.1 Logical Structure of Each Block
Settingofvariousparameters,nodeaddress,andPDTag(Physicaldevicetag)showninFigure
2.1isrequiredbeforestartingoperation.Forsettingmethod,referto“GETTINGSTARTED”in
Chapter 3 and later.
