YOKOGAWA ADMAG TI Series User Manual

<5. Functions>
79
IM 01E21A02-03EN
5.3.2 Connection of Contact Point Output to DI Function
ThecontactpointoutputsatSTBandDTBareoutputtospecicchannels,respectively.By
selecting the channel to use in the DI function block, it is connected to the contact point.
The relation of the channel for each contact point output and the channel which can be selected
fromeachDIfunctionblockisshowninthegurebelow.
DTB
STB
Velocity1 Hi/Lo Limit
Velocity2 Hi/Lo Limit
Volume1 Hi/Lo Limit
Adhesion1 Hi/Lo Limit
ElectrodeA2 Hi/Lo Limit
Flow Noise1 Hi/Lo Limit *
Adhesion Warning Status
Adhesion Alarm Status
Flow Noise Warning Status *
Channel 21
Channel 22
Channel 23
Channel 30
Channel 34
Channel 38
Channel 39
Channel 40
DI1
DI2
DI3
Volume2 Hi/Lo Limit
Channel 24
Mass1 Hi/Lo Limit
Channel 25
Mass2 Hi/Lo Limit
Channel 26
Calorie1 Hi/Lo Limit *
Channel 27
Calorie2 Hi/Lo Limit *
Channel 28
Adhesion2 Hi/Lo Limit
ElectrodeA1 Hi/Lo Limit
Channel 31
ElectrodeB2 Hi/Lo Limit
Channel 33
ElectrodeB1 Hi/Lo Limit
Channel 32
Flow Noise2 Hi/Lo Limit *
Channel 35
Conductivity1 Hi/Lo Limit *
Channel 36
Conductivity2 Hi/Lo Limit *
Channel 37
Flow Noise Alarm Status *
Low Conductivity Warning Status *
Channel 41
Channel 43
Channel 29
Channel 42
F0446.ai
* for AXG

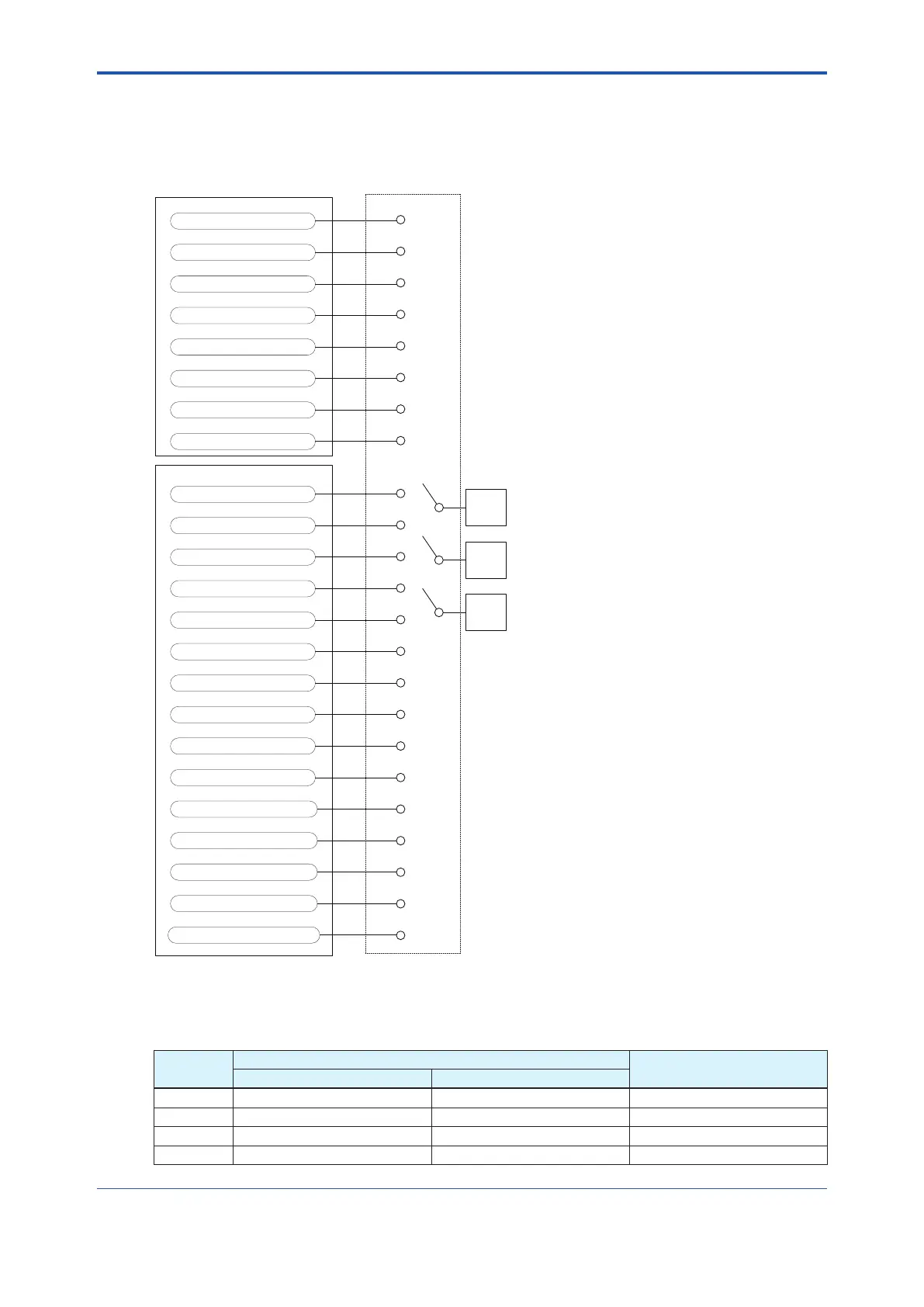

Figure 5.3.2 Relation of Process Value of STB and DTB and DI Function Block
Theinformationofthegureabovecanbeorganizedbelow.
Table 5.3.1 List of Relation of Contact Point Output and DI Function Block
CHANNEL
number
Channel Selection
Model
Display F
OUNDATION Fieldbus
21 Velocity1 Hi/Lo Limit Velo.1 AXG / AXW
22 Velocity2 Hi/Lo Limit Velo.2 AXG / AXW
23 Volume1 Hi/Lo Limit VolFlw.1 AXG / AXW
24 Volume2 Hi/Lo Limit VolFlw.2 AXG / AXW
