YOKOGAWA ADMAG TI Series User Manual

<5. Functions>
129
IM 01E21A02-03EN

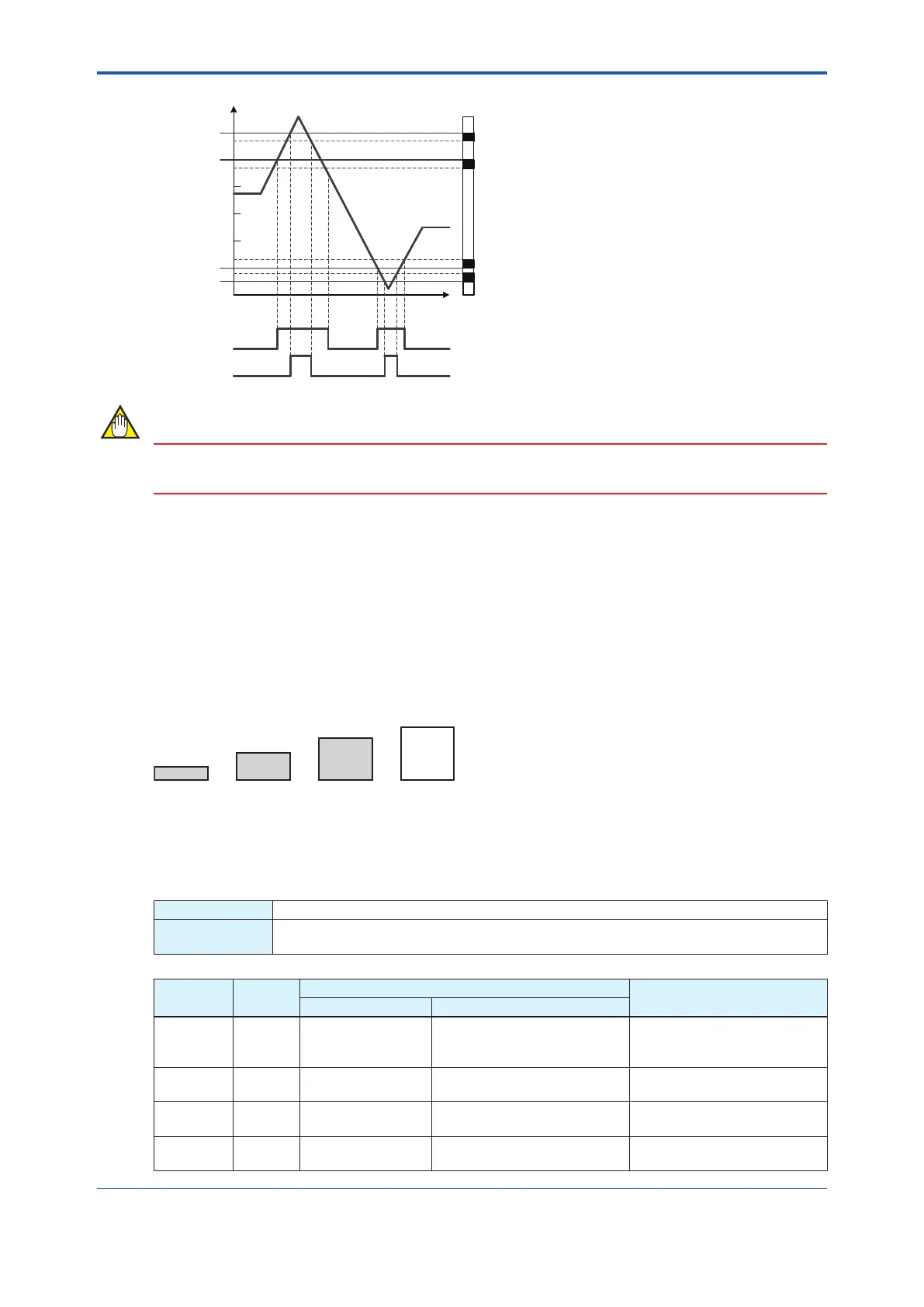

F0433.ai
Time
Flow rate[m
3
/h]
300
250
50
25
65
40
285
235
Low Limit
Low-Low
Limit
High Limit
High-High
Limit
Hysteresis
Status Output
(High/Low limit)
Status Output
(High-High/
Low-Low limit)
NOTE
When the physical quantity to be output is changed, set the high/low limits to judge an alarm
again.
5.9.3 Electrode Adhesion Detection
The electrode adhesion detecting function diagnoses an electrode adhesion with the resistance
value of the electrode, and displays a warning or alarm if an adhesion is detected.
The electrode adhesion detection is displayed on the display in four levels: level 1 to level 4.
Avaluetojudgeeachlevelcanbespeciedindividually.Displayawarningwhenadhesion
exceeds level 3, and an alarm when adhesion exceeds level 4.
For details about the alarm and warning, refer to Subsection 5.6.1. Also, for the resistance value
of the electrode, refer to Subsection 5.1.3.
F0434.ai
Alarm
Level 4
Warning
Level 3
Level 2Level 1
Thesettingcanbeconguredwiththefollowingparameters.
Menu path
Display Devicesetup►Diag/Service►Diagnosis►Adhesion►(seebelow)
F
OUNDATION
Fieldbus
Diagnostic►DTB►DeviceDiagnostics►Diagnostics/Alerts►Diagnostics►Adhesion
►(seebelow)
Block
Name
Relative
Index
Parameter
Description
Display F
OUNDATION Fieldbus
DTB 24 Function Adhesion Check
Speciestheuseofthe
electrode adhesion detecting
function.*1
DTB 25 Threshold level 1 Adhesion Level1
Speciesthevaluetojudge
level 1.
DTB 26 Threshold level 2 Adhesion Level2
Speciesthevaluetojudge
level 2.
DTB 27 Threshold level 3 Adhesion Level3
Speciesthevaluetojudge
level 3.
