<5. Functions>
51
IM 01E21A02-03EN
STB
DTB
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
Channel 7
Channel 8
Channel 9
Channel 10
AI1
AI2
AI3
AI4 *
Channel 11
F0445.ai
Velocity
Volume flow
Mass flow
Calorie *
Totalizer1
Totalizer2
Adhesion
Electrode A
Electrode B
Flow noise *
Conductivity *
* for AXG

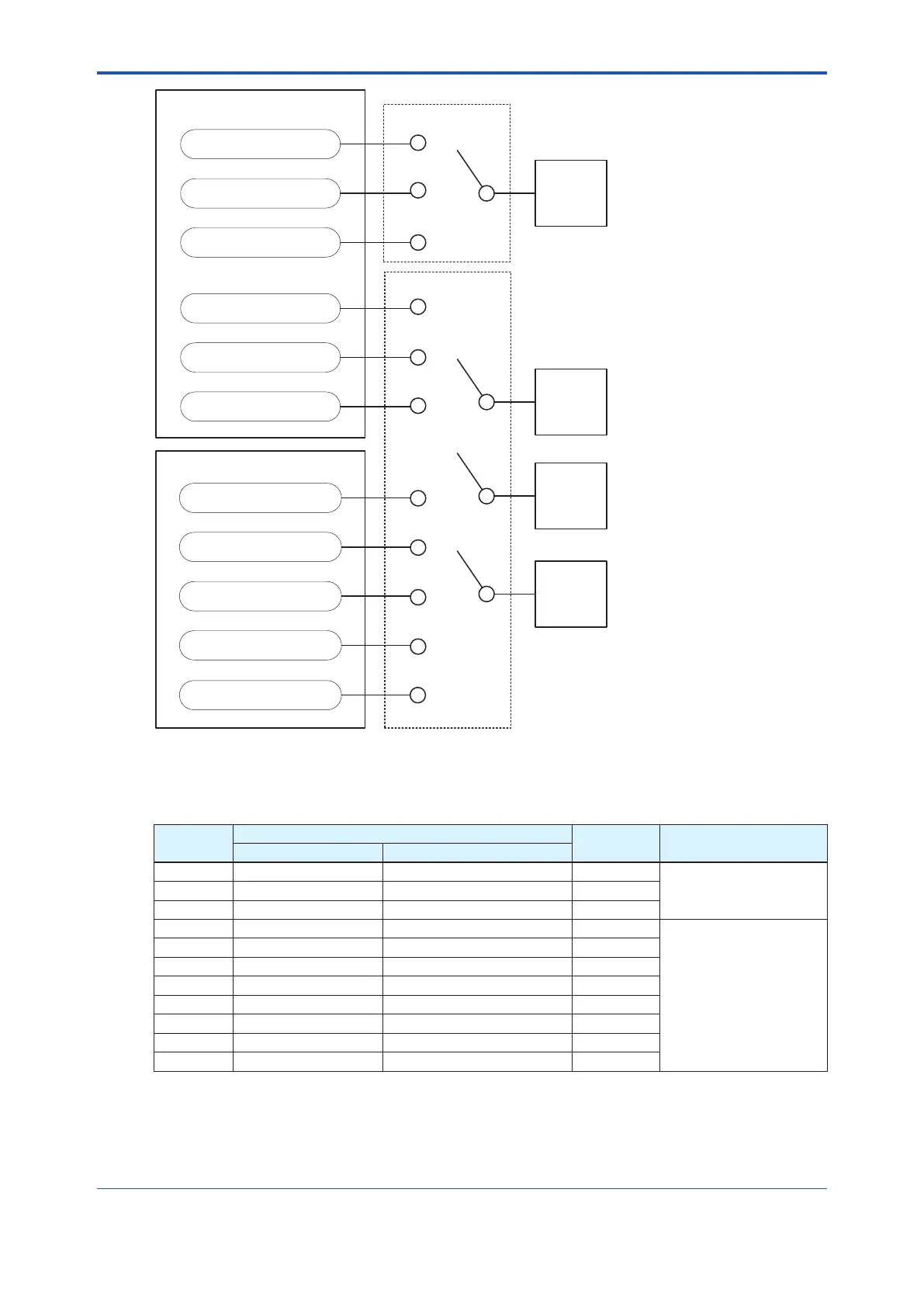

Figure 5.1.2.1 Relation of Process Value of STB and DTB and AI Function Block
Theinformationofthegureabovecanbeorganizedbelow.
Table 5.1.2.1 List of Relation of Process Value and AI Function Block
CHANNEL
number
Selection
Model
Supported AI function
block
Display F
OUNDATION Fieldbus
1 Velocity Velocity AXG / AXW
AI12 Volumeow Volumeow AXG / AXW
3 Massow Massow AXG / AXW
4 Calorie Calorie AXG
AI2
AI3
AI4
(AI4supportsonlyAXG)
5 Totalizer 1 Total1 AXG / AXW
6 Totalizer 2 Total2 AXG / AXW
7 Adhesion Adhesion AXG / AXW
8 Electrode A Electrode A AXG / AXW
9 Electrode B Electrode B AXG / AXW
10 Flow noise Flow Noise AXG
11 Conductivity Conductivity AXG
A channel can be selected in each AI function block with the following parameters. Please note
that it needs to change to the O/S mode to change the channel.
