YOKOGAWA MW100 User Manual

3-9
IM MW100-01E
Setting and Data acquisiton
3

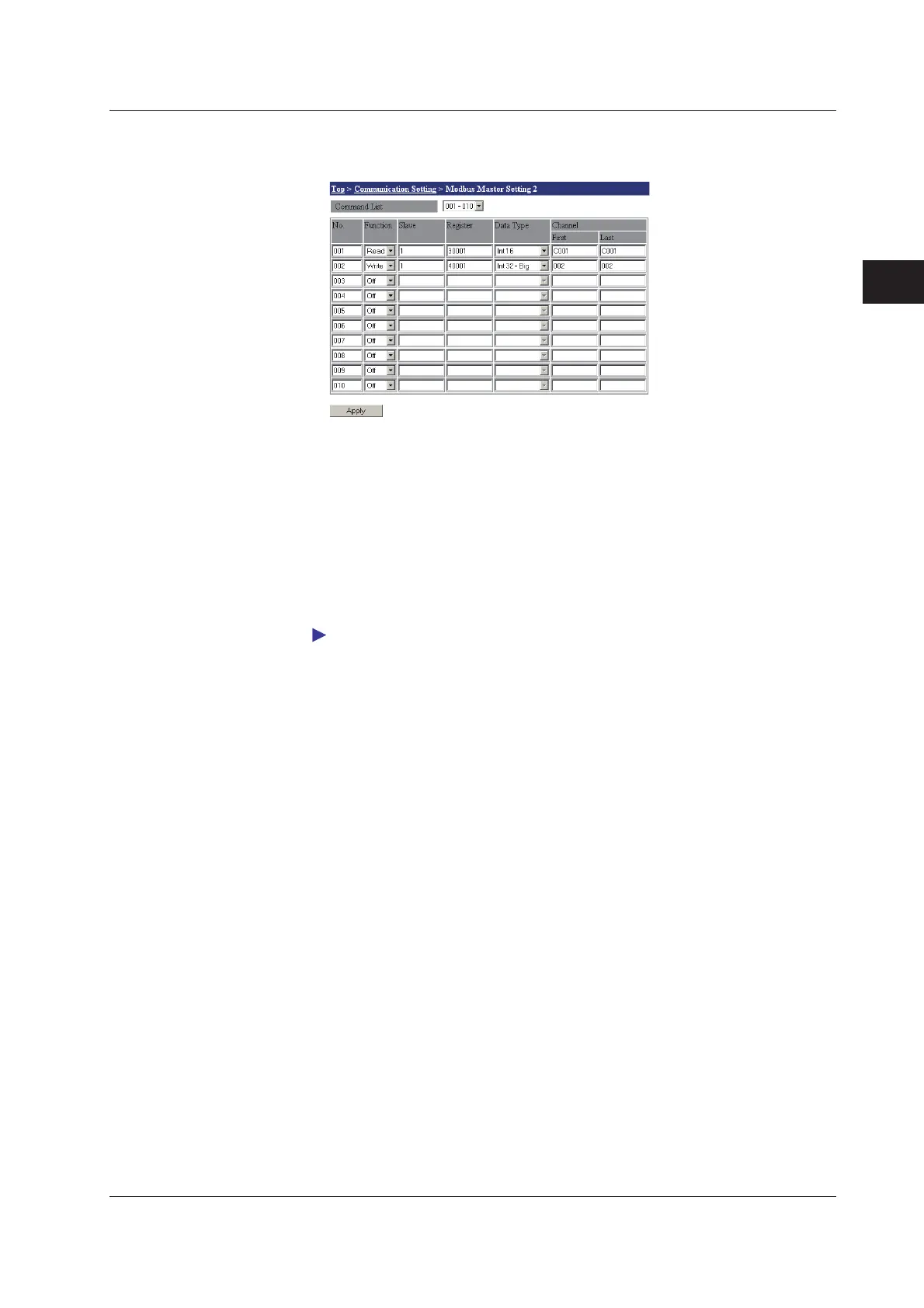

Modbus Master Setting 2
1.
From the Top screen, click Communication Setting > Modbus Master Setting 2.
2.
Select the command number group to be set from the Command List list.
3.
Select READ/WRITE in the Function box.
4.
Enter the address of the slave device in the Slave box.
5.
Enter the numbers of the used registers in the Register box. When specifying
multiple registers, enter the first register number.
6.
Select a data type in the Data Type list.
7.
Enter the channel numbers used in the Channel boxes.
8.
Click the Apply button. The setting changes take effect.
For details on the registers and data types, see “Modbus Master Function” in “Modbus
Protocol Specifications” in section 5.2.
3.2 Connection to the MW100
