5-25
IM MW100-01E
Specification
5

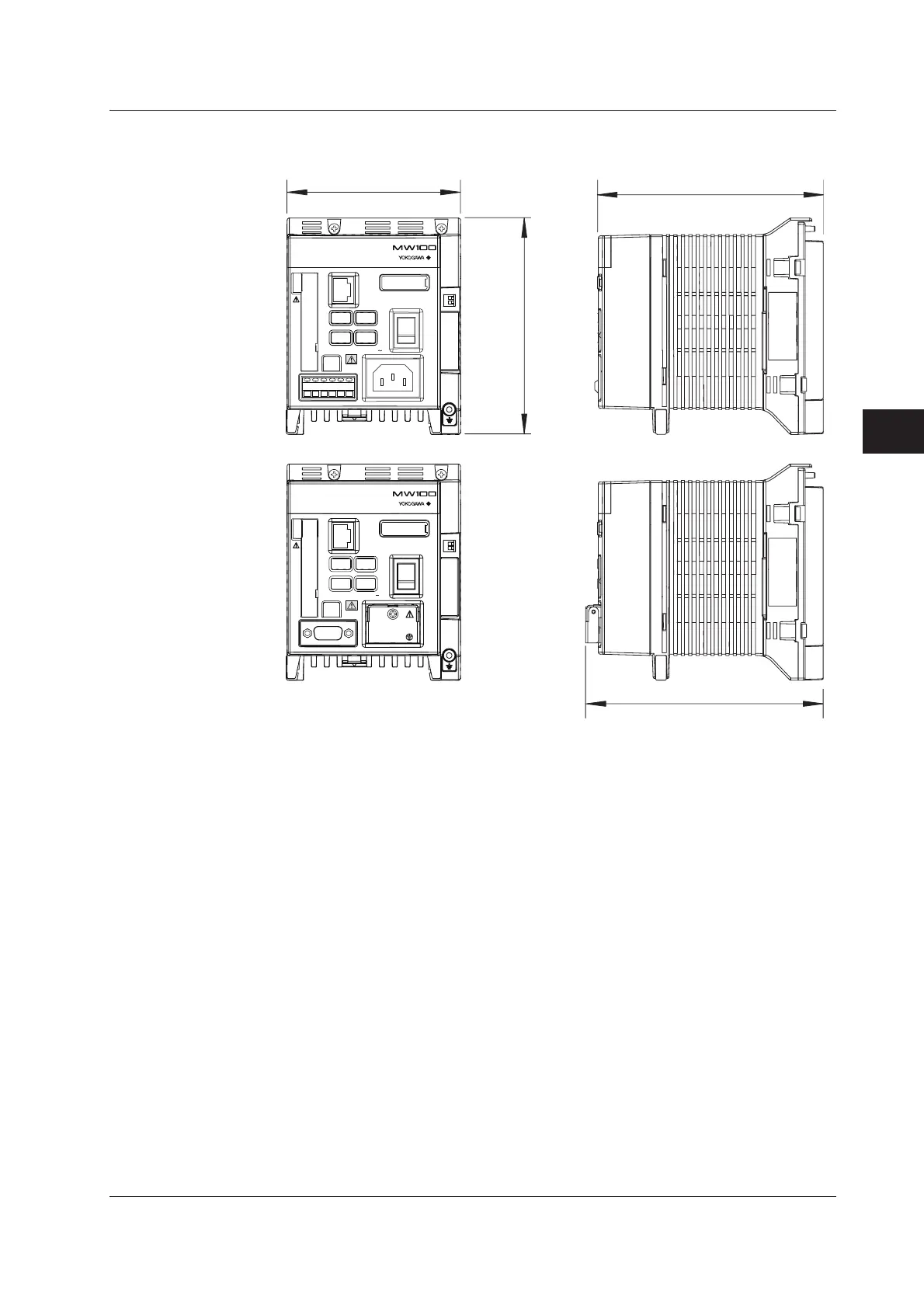

External Dimensions
Units: mm
105
137
131
144.4
100-240V AC
70VA
MAX 50/60Hz
DAT
A ACQUISITION UNIT
MEASURE
RECORD
SERIAL RD
ETHERNET
STAR
T
STOP
USER 2
USER 1
POWER
SW
ON
12
8
7
6
5
4
3
MATH
ALARM
TERMN
ON
OFF
SERIAL COMM
FG
SDB
SDA
RDB
RDA
SG
12-28V DC
- - -
35VA
MAX
MEASURE
RECORD
SERIAL RD
ETHERNET
10BASE - T
100BASE - TX
10BASE - T
100BASE - TX
STAR
T
STOP
USER 2
USER 1
POWER
SW
ON
12
8
7
6
5
4
3
MATH
ALARM
SERIAL COMM
+
-
DAT
A ACQUISITION UNIT
If not specified, the tolerance is ±3%. However
, in cases of less than 10 mm, the
tolerance is ±0.3 mm.
5.2 Main Module Specifications
209
211
