YOKOGAWA MW100 User Manual

3-41
IM MW100-01E
Setting and Data acquisiton
3
3.11 Timer and Match Time Settings
The time up action function can be controlled through the specified time interval and time.
For a description of the timer and match time, see “Timer” or “Match Time” in section 1.3.
Setting Mode
Timer Settings

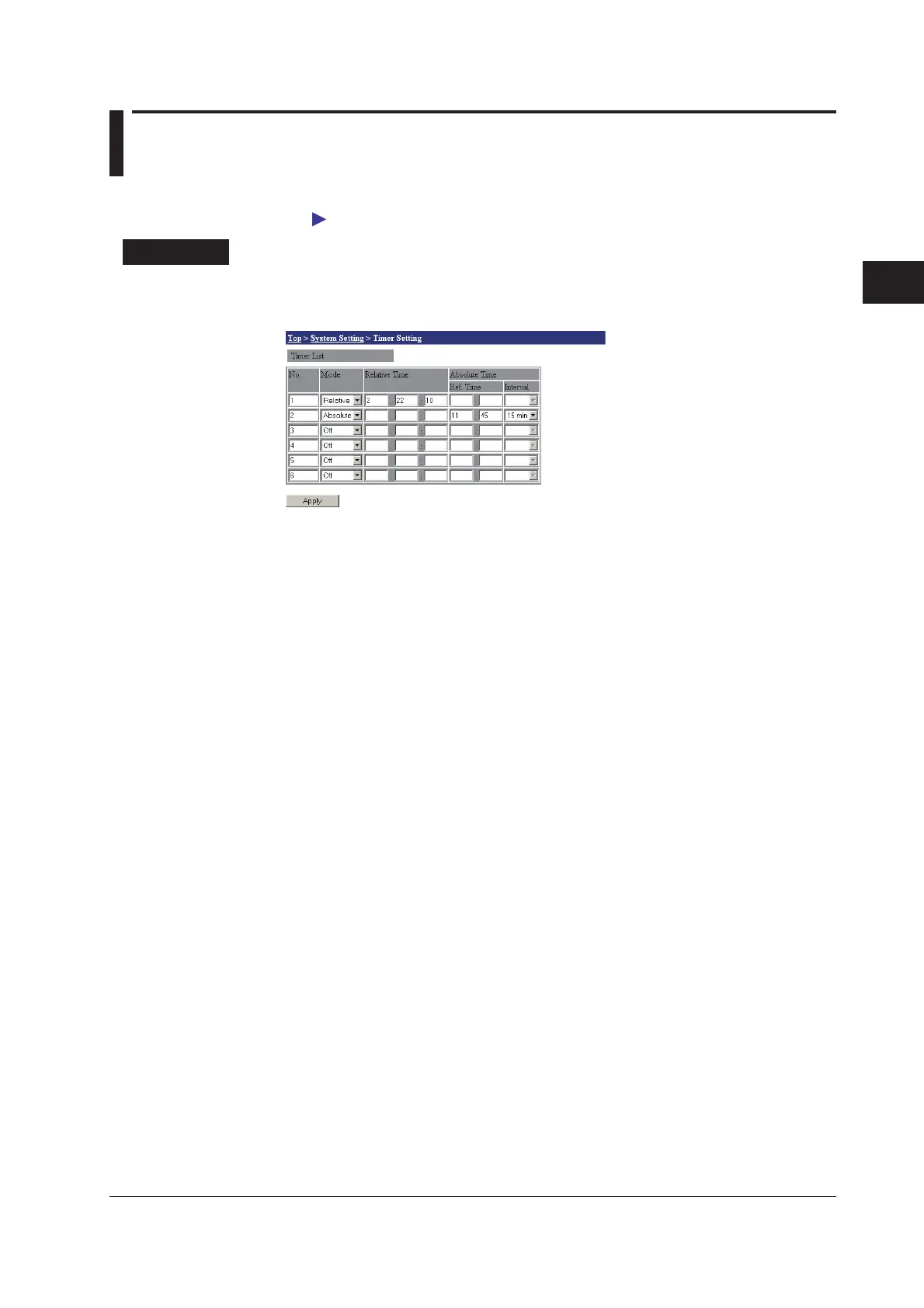

From the top screen, click System Setting > Timer Setting.
Relative Time Timer
1.
Select Relative in the Mode list.
2.
Enter the desired time interval in the Relative Time boxes. The day, hour, and
minute are arranged in order from the left.
3.
Click the Apply button. The setting changes take effect.
Absolute Time Timer
1.
Select Absolute in the Mode list.
2.
Enter the desired reference time in the Ref. Time boxes under Absolute Time.
The hour and minute are in order from the left in the box.
3.
Select the time interval you wish to set in the Interval list under Absolute Time. M
and H indicate the minute and hour respectively.
4.
Click the Apply button. The setting changes take effect.
