3-32
IM MW100-01E
Output Settings
6.
Turn output On/Of
f in the
Action
box.
7.
Enter an alarm output channel in the
Relay
box.
8.
Click
the
Apply
button. The setting changes take effect.

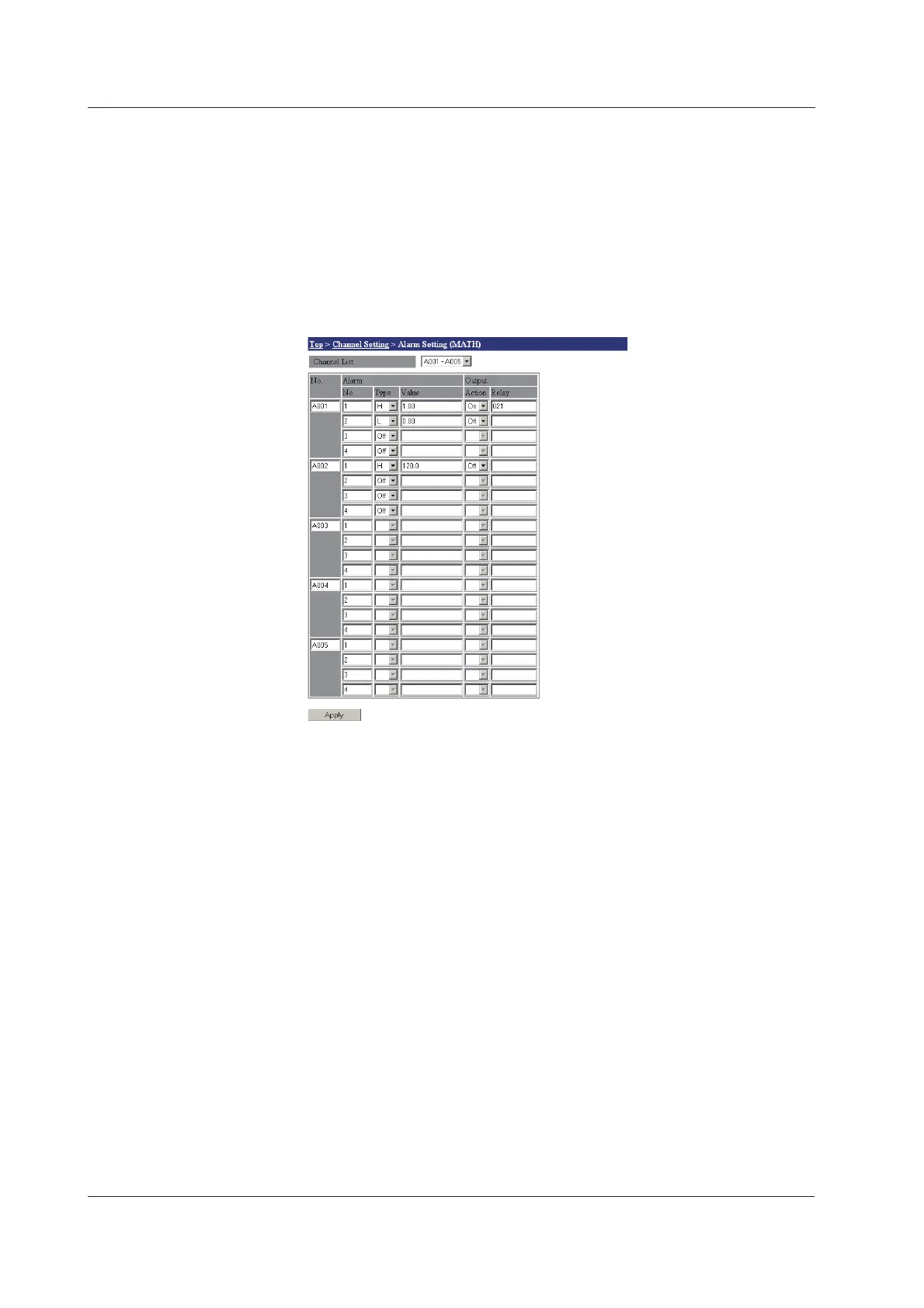

Alarm Setting (MA
TH)
Y
ou can set MA
TH channel alarms.
1.
From the top screen, click
Channel Setting
>
Alarm Setting (MA
TH)
.
2.
Below
, enter settings in the same manner as with measurement alarms. With
MA
TH alarms, there is no hysteresis setting.
3.7 Setting
Alarms
133
