3.15 Measured Data Monitor Display/Settings
You can monitor-display data measured on the MW100.
The screen consists of Screen display 1 and Screen display 2, and for each you can
select trend display, digital display, meter display, bar graph display, or overview display.
In addition, an alarm summary can be displayed in a separate window.
Meas. Mode
Monitor-Display of Measured Data
The measured data is displayed in single screen or dual screen. The next the display
is shown, the display is shown in the previous condition (you must enable the browser
cookies).

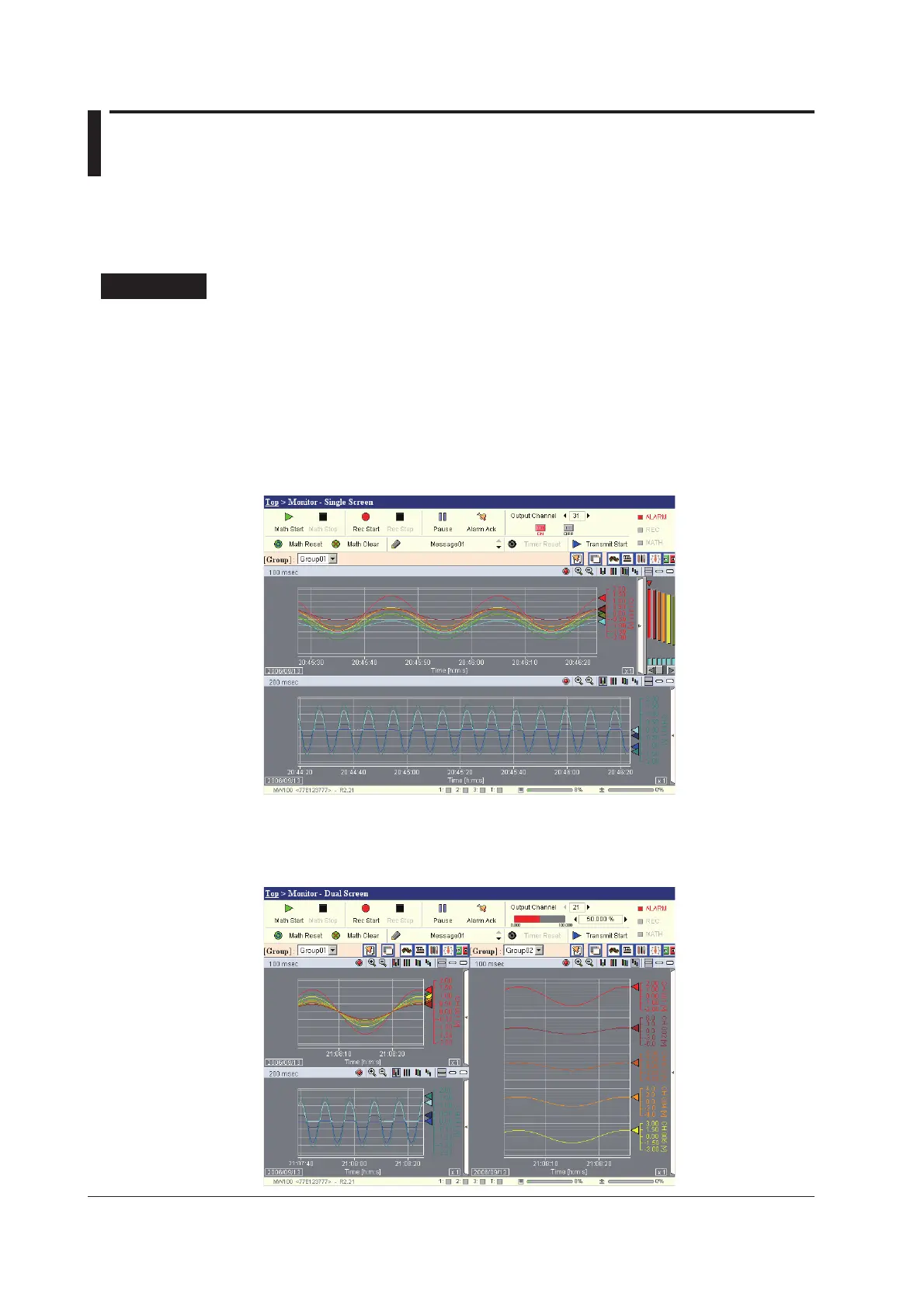

Single Screen
Use this when the monitor contains a single screen. You can display one group.
From the top screen, click Single Screen.
Dual Screen
Use this when the monitor contains two screens. You can display two groups.
From the top screen, click Dual Screen.
