Installation and Wiring
2
2.4 Connecting Signal Wires
Attaching and Removing the Terminal Block

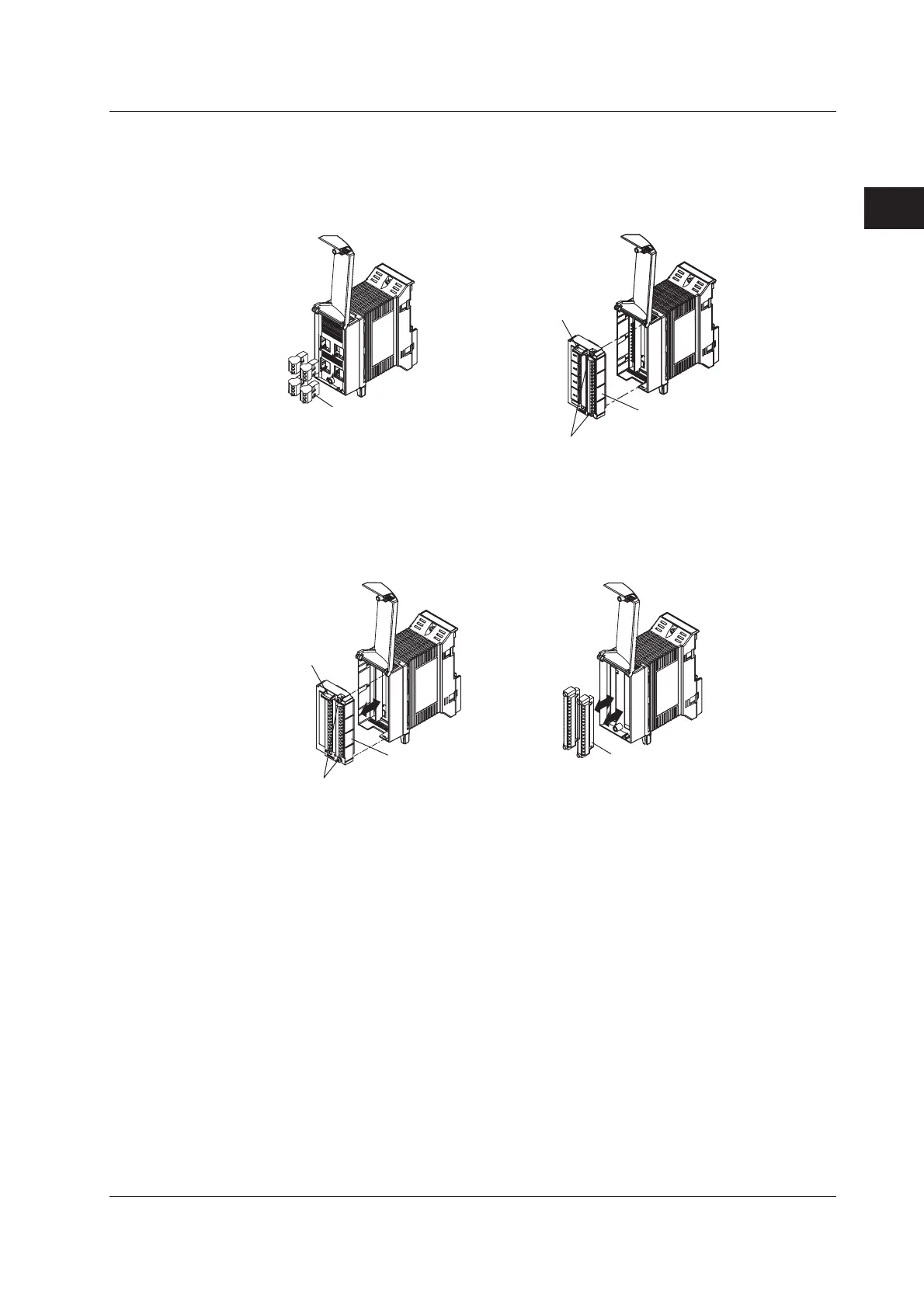

The I/O terminals can be removed as shown in the figure below.
Also, when the terminal cover is flipped up, you can remove it by forcing it back.
4-CH, High-Speed Universal
Input Module
The terminal block can
be attached and
detached.
4-CH, Medium-Speed Strain
Input Module (-B12, -B35)
Pull-out
handle
The terminal plate can be
attached and detached.
Attachment screw
(Loosen before removing the terminal plate.)
10-CH, Medium-Speed Universal Input Module/
6-CH, Medium-Speed 4-wire RTD Resistance
Input Module/
10-CH, High-Speed Digital Input Module
(-D05, -D24)
8-CH, Medium-Speed Analog
Output Module/
8-CH, PWM Output Module/
10-CH, Medium-Speed Digital
Output Module
The terminal plate can be
attached and detached.
Attachment screw
(Loosen before removing the terminal plate.)
Pull-out
handle
The terminal block can be
attached and detached
(fixed with screws).
