Preset Value
7.
In the Preset Value box, enter a preset value for the output operation when
turning on the power or when an error occurs. When a preset value is selected in
the output operation settings, the specified value is output.
For the procedure to set the output operation, see “Output Operation Settings” in this
section.
For a description of preset values, see “Output upon Startup and Error Occurrence” in
section 1.11.
Reference Channel Settings
This is set if TRANS is selected for the output action.
8.
Enter an input channel or MATH channel for transmission output in the Reference
Channel box.
9.
Click the Apply button. The setting changes take effect.
Output Range Settings (PWM Output)
You can set the output type, action, range, span, pulse interval, preset value, and
reference channel.
1.

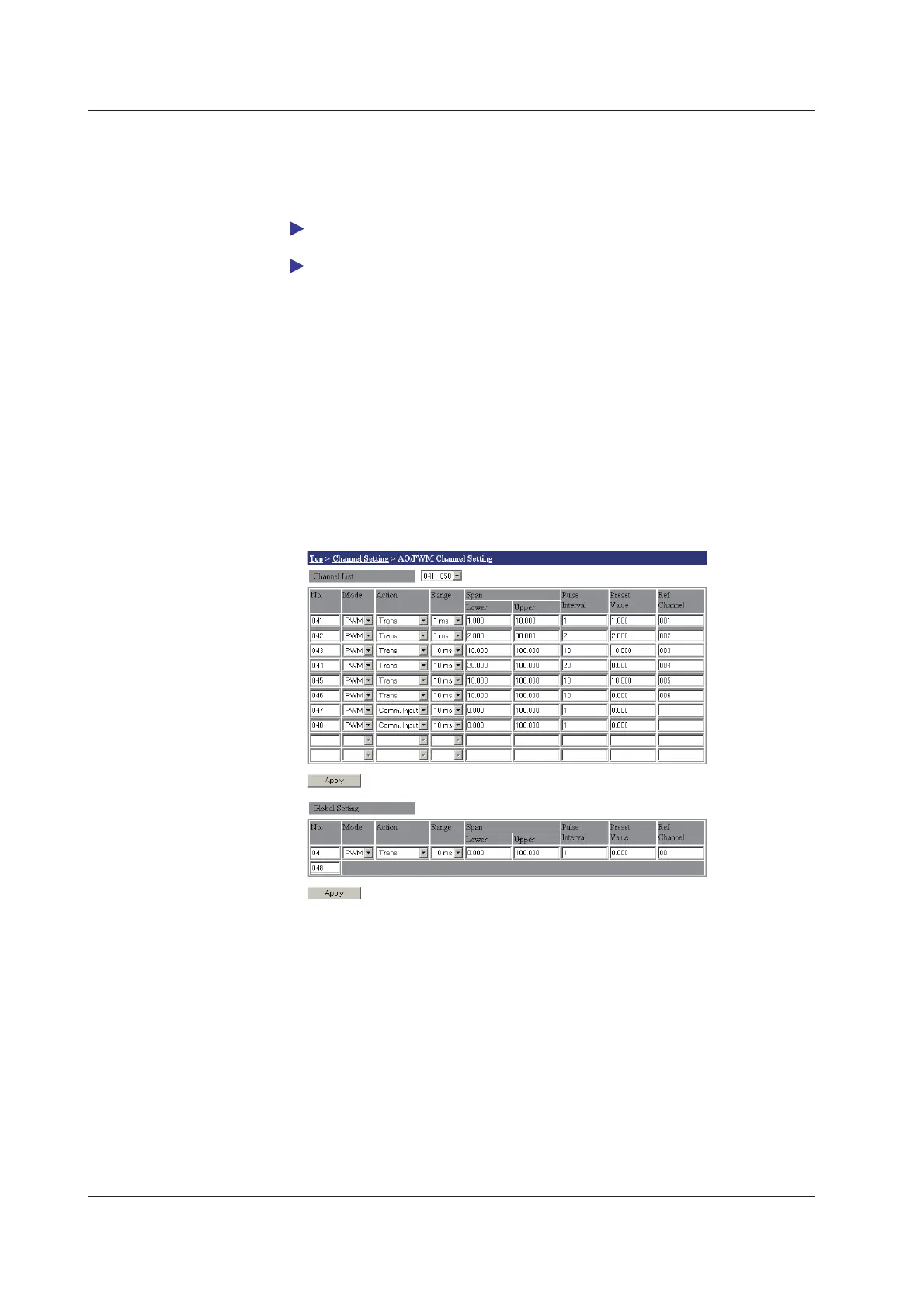

From the top screen, click Channel Setting > AO/PWM Channel Setting.
2.
In the Channel List list, select the channels you want to set.
Output Type
In the Mode box, select PWM to output or SKIP to not output.
Output Action Settings
Select Trans (transmission output) or Comm.Input (arbitrary output) in the Action box.
3.9 Analog/PWM Output Settings
