YOKOGAWA MW100 User Manual

App-19
IM MW100-01E
Appendix
App
Appendix 7 Using the Broken Line Data of Decimal
Values
Because the output value of a program channel is an integer, an expression is used to
output decimal values.
• Setting Example
A001=P01/K01
Here, MATH channel is A001, program channel is P01, and calculation constant is
K01.

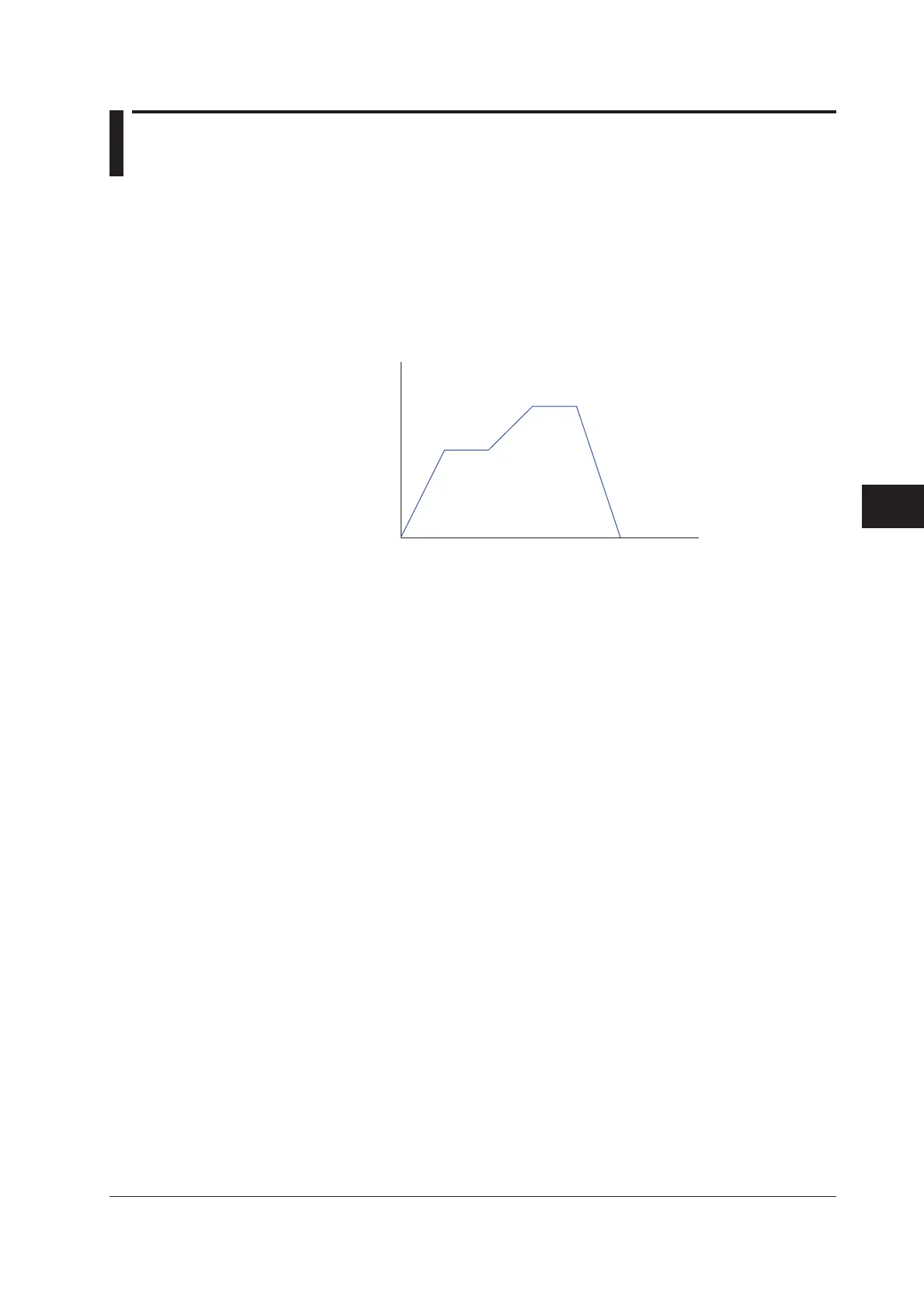

X: Time (s)
Y: Output value
A001
(0, 0.0)
(10, 1.5)
(20, 1.5)
(30, 2.2) (40, 2.2)
(50, 0.0)
• Entry Example
Set the calcuation constant as K01=10.
The broken line data P01 is as follows:
(0.0), (10.15), (20.15), (30.22), (40.22), (50.0), (-1.0)
