Global Expression Setting
If the expression to be assigned to the MATH channels is the same, you can collectively
apply the settings of the first channels to the specified range of channels. The range
for specifying the expression is A001 to A300. Set the last number greater than the first
number.
The operating procedure is the same as the global setting the measurement channels.
For a description of the global setting of channels, see “Global Channel Settings” in section
3.5.

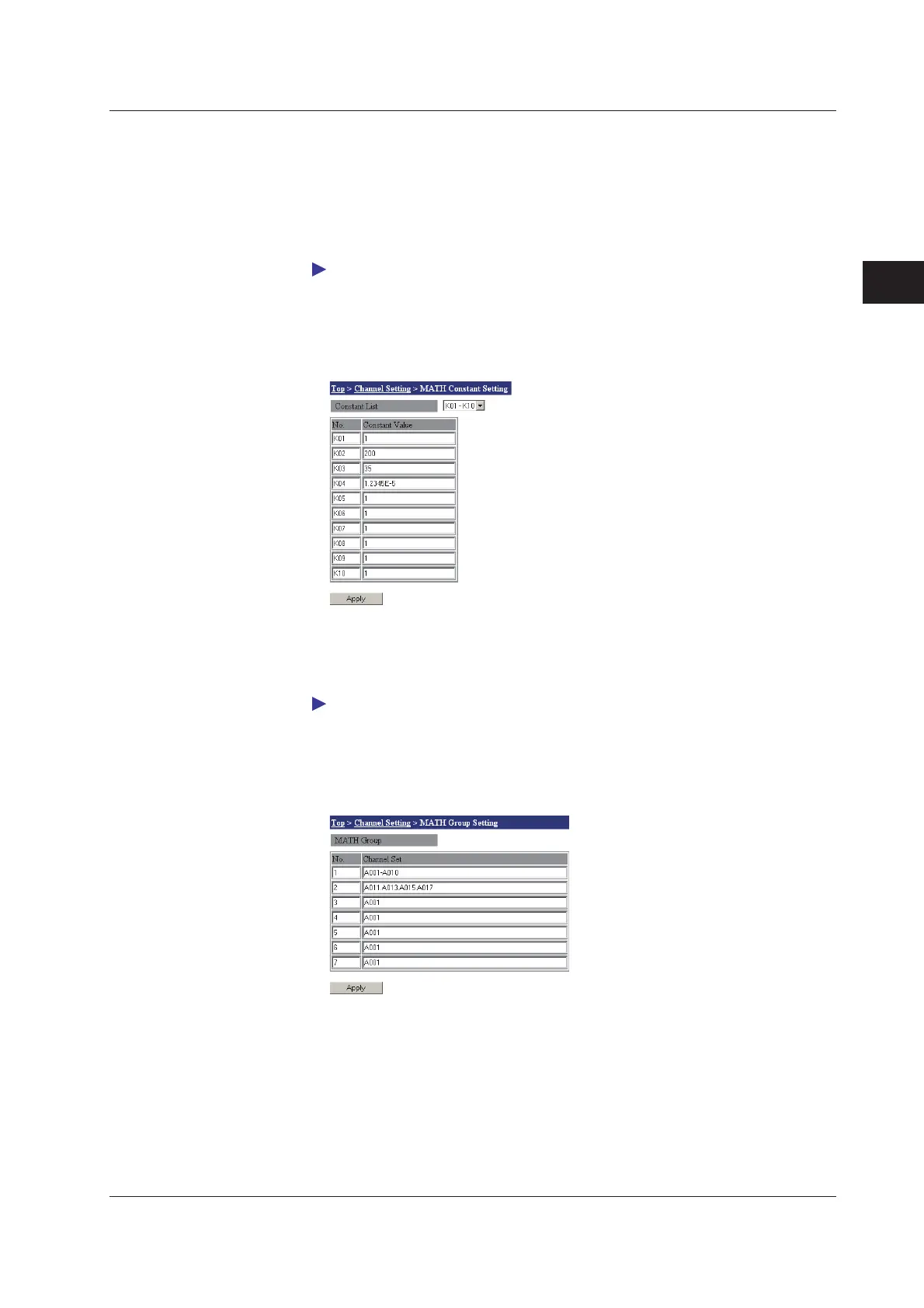

Setting MATH Constants
1.
From the top screen, click Channel Setting > MATH Constant Setting.
2.
Select the constant group you wish to set from the Constant List list.
3.
Enter a constant in the Constant List list.
4.
Click the Apply button. The setting changes take effect.
For a description of the MATH constants, see section 1.13, “MATH Function (/M1 Option)”
and “MATH Function Specifications (/M1 Option)” in section 5.2.
Setting MATH Groups
1.
From the top screen, click Channel Setting > MATH Group Settings.
2.
Enter the channel numbers to be grouped in the Channel Set box.
Specify channel numbers by delimiting them with dots as in A001.A003.A006, or
specify a range as in A004-A008.
3.
Click the Apply button. The setting changes take effect.
