YOKOGAWA MW100 User Manual

5-44
IM MW100-01E

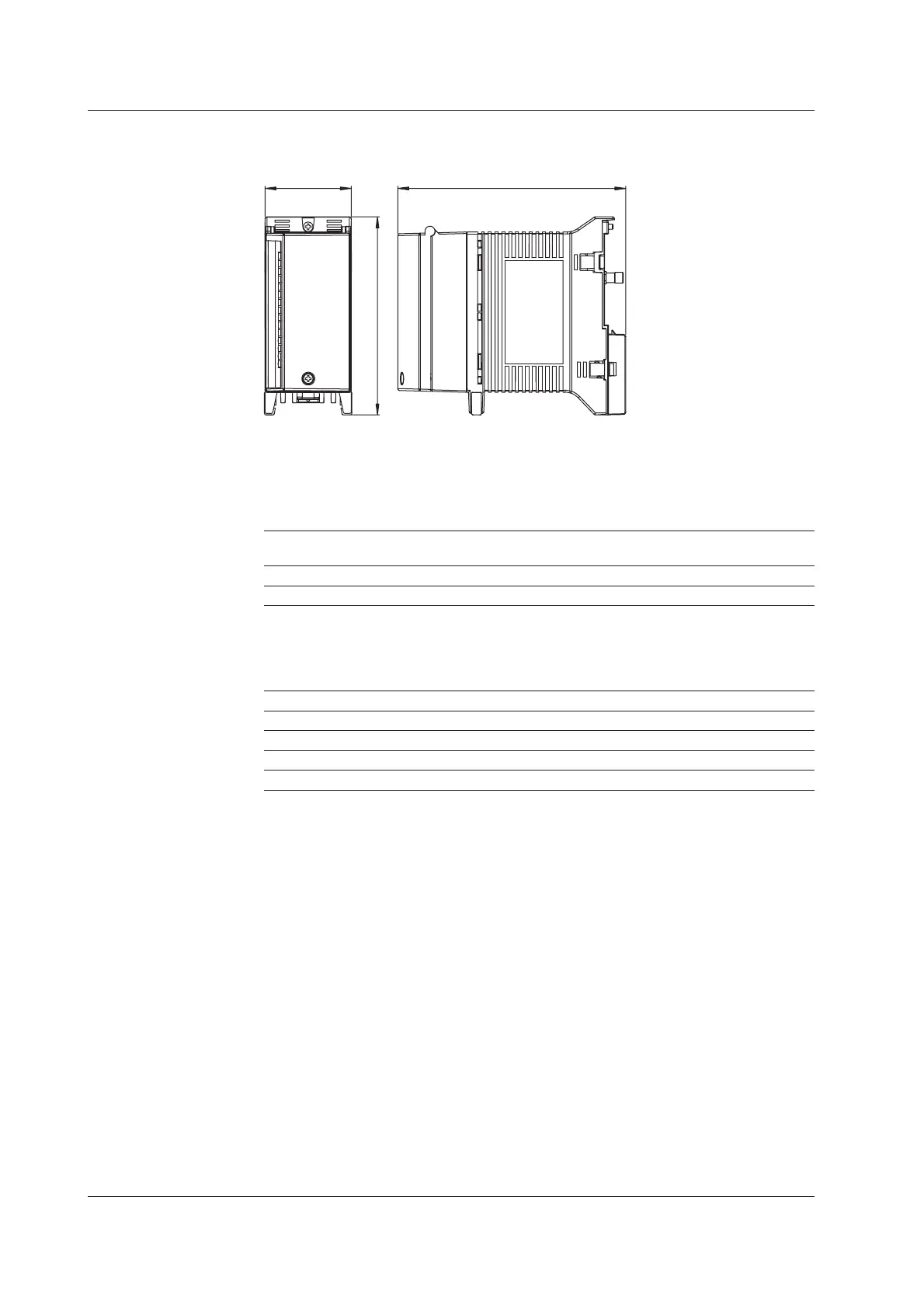

External Dimensions
Units: mm
57
131
150.8
If not specified, the tolerance is ±3%. However, in cases of less than 10 mm, the
tolerance is ±0.3 mm.
Output Span Setting
Limit value of V mode and mA mode
Modes Output Setting span Setting span Output
lower limit
*
lower limit upper limit upper limit
**
V mode –11[V] –10[V] +10[V] +11[V]
mA mode 0[mA] 0[mA] 20[mA] 22[mA]
* –OVER, preset value
** + OVER, preset value
Handling Abnormal Data
Abnormal Data Types Output value
Data upon startup Preset value or previously held value can be selected
Data upon error occurrence Preset value or previously held value can be selected
+OVER 5% of output Full Span
–OVER –5% of output Full Span
±OVER conditions
• When the input channel is ±OVER in the case of transmission output
• When outside the range of voltage –11 V to +11 V, or current 0 mA to 22 mA (accuracy
assured at 1 mA or more)
5.9 8-CH, Medium-Speed Analog Output Module Specifications
