2.4 Connecting Signal Wires

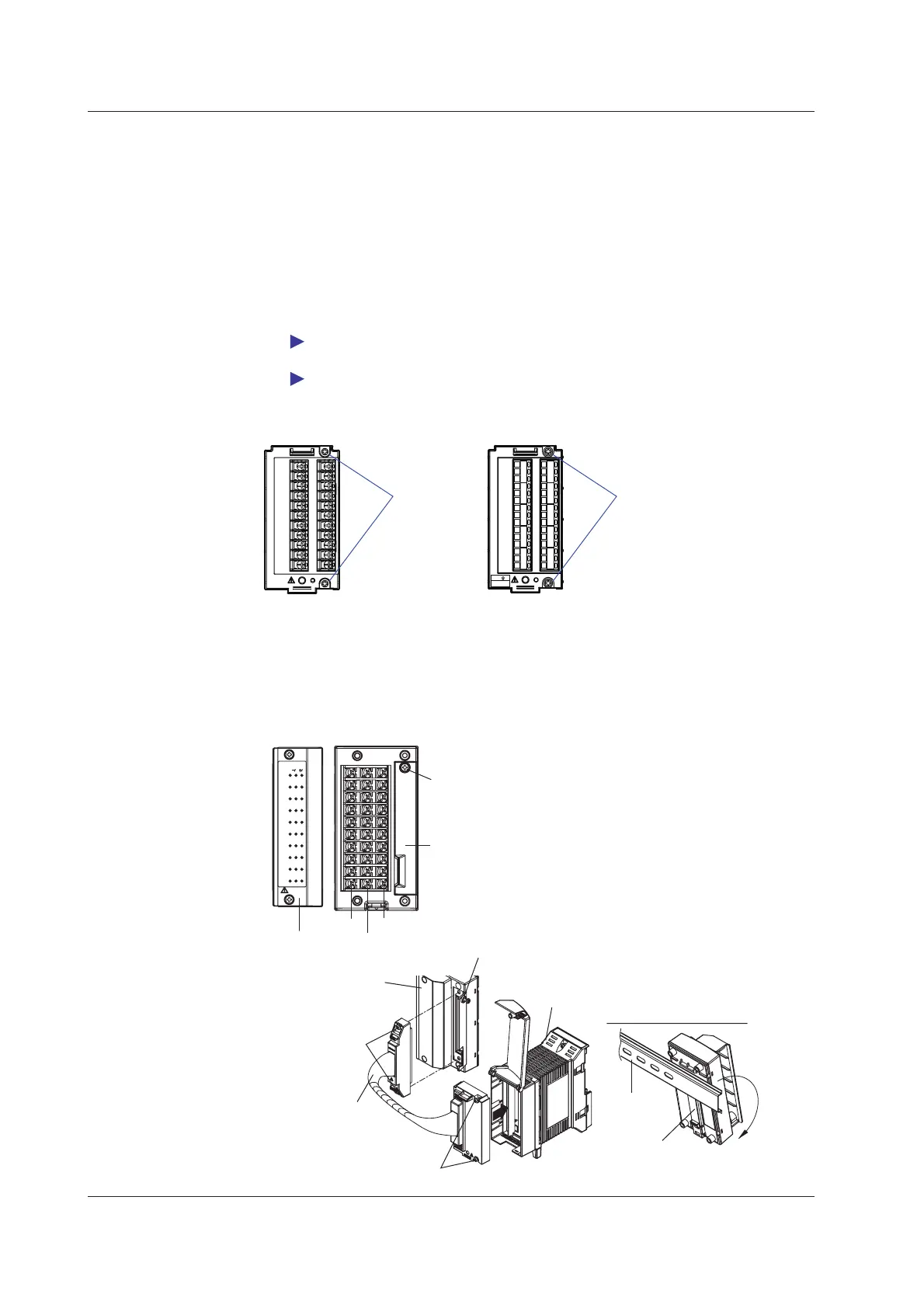

Attaching the Plate with Screw Terminal and Plate with Clamp Terminals for Current
A plate with screw terminal (model 772080, sold separately) can be attached to the
10-CH Medium Speed Universal Input Module and the 10-CH High Speed Digital
Input Module. In addition, the dedicated plate with clamp terminals for current (model
772081/772082/772083, sold separately) can be attached to the 10-CH Medium Speed
Universal Input Module.
The plate with screw terminal is attached and removed in the same manner as the screw
terminal block. Note that the terminal arrangement is different than that of the clamp
terminal plate. The proper arrangement is shown on the back of the terminal covers, so
be sure to replace the cover along with the terminal plate.
For the handling of the plate with screw terminal, see “Handling the MX100/MW100 10-CH
Plate with Screw Terminal” in IM MX100-77E.
For the handling of the plate with clamp terminals for current, see MX100/MW100 Setting
Up the Plate with Clamp Terminals for Current (772081/772082/772083) (IM MX100-78E.)
100mA
10
1
2
5
4
8
7
11
10
14
13
1
2
5
4
8
7
11
10
14
13
Attachment
screw
Plate with screw terminal
Attachment
screw
Plate with clamp terminals for current
Screw Terminal Block
The 10-CH, Medium-Speed Universal Input modules and 10-CH, High-Speed Digital
Input modules allow you to remove the terminal plate and connect a 10-channel screw
terminal block (accessory sold separately, M4 screws) that can be attached to a DIN rail
(see the figure below).
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
CH 9
CH 10
bBA
Terminal cover
b
+/A
-/B
10-CH screw terminal block (772061)
Connector cover
Attachment screw
for connector cover
10-CH, Medium-Speed Universal Input Module
/
10-CH, High-Speed Digital Input Module
DIN rail
Latch lever
(Pull down to detach.)
10-CH screw terminal
block (772061)
Connection cable
between the input module
and screw terminal block
(772062-0XXX*)
* Length: 050 or 100 cm.
Attachment to a DIN Rail
Loosen the attachment screw for the connector
cover and open the connector cover.
Attachment screw
Attachment screw
