General Specifications
Operating temperature range: –20 to 50°C
Operating humidity range: 20 to 80% RH for –20 to 40 °C
10 to 50% RH for 40 to 50°C

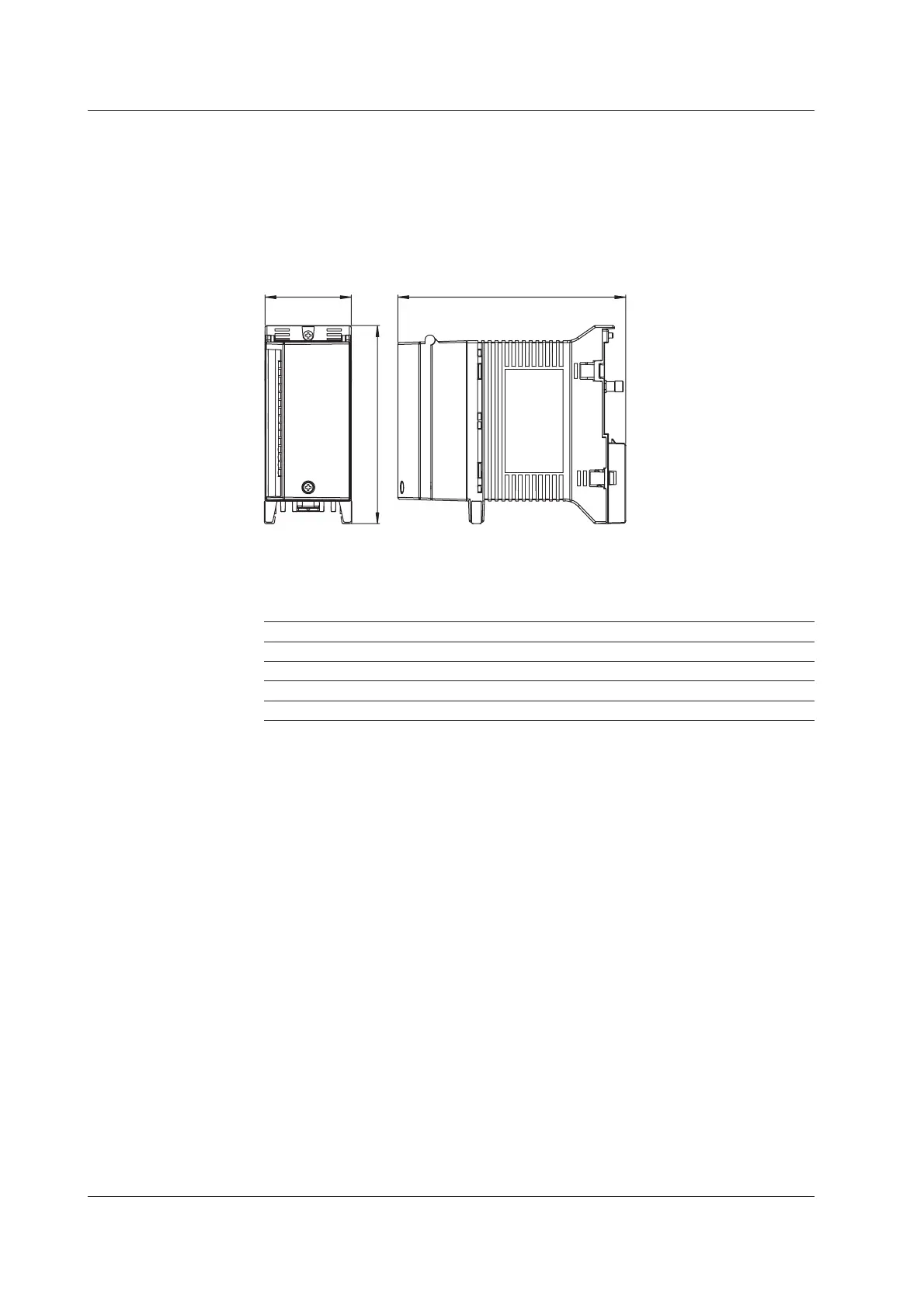

External Dimensions
Units: mm
57
131
150.8
If not specified, the tolerance is ±3%. However, in cases of less than 10 mm, the
tolerance is ±0.3 mm.
Handling Abnormal Data
Abnormal Data Types Output value
Data upon startup Preset value or previously held value can be selected
Data upon error occurrence Preset value or previously held value can be selected
+OVER Duty: +5% of the output Full Span
–OVER Duty: –5% of the output Full Span
±OVER conditions
• When duty exceeds 0.000 to 100.000%
• When the input channel is ±OVER in the case of transmission output
5.10 8-CH, Medium-Speed PWM Output Module Specifications
