5-42
IM MW100-01E
5.8 10-CH, High-Speed Digital Input Module
Specifications
Style number: S1(-D05), S2(-D24)
Input type: - D05: Contact (non-voltage contact, open collector) and LEVEL
(5-V logic)
-D24: LEVEL (24-V logic)
Number of inputs: 10
Input format: -D05: Pull up at approx. 5 V/approx. 5 kΩ, non-isolated
between channels
-D24: No isolation between channels
Measurement interval: Select 10 ms, 50 ms, 100 ms, 200 ms, 500 ms, 1 s, 2 s, 5 s, 10
s, 20 s, 30 s, or 60 s
Filter Measurement interval of 5 s or less: Use the wider of the ON/
OFF width of the detection period (approximately 75% to 90%
of the measurement interval)
Measurement interval of 5 s or more: Use the wider of the ON/
OFF width of approximately 4.5 s
Minimum detection pulse width: Twice the sampling interval or more
Input threshold level: -D05: Contact (non-voltage contact, open collector):
100 Ω or less, ON, 100 kΩ or more, OFF
LEVEL (5-V logic): OFF at 1 V or less and ON at 3 V or more
-D24: LEVEL (24-V logic): OFF at 6 V or less and ON at 16 V
or greater
Hysteresis width: -D05: Approx. 0.1 V -D24: Approx. 1.5 V
Contact transistor rating: 15 VDC or greater and 30 mA or greater
Transistor with a rating of Vce > 15 VDC and Ic > 30 mA
Maximum input voltage: -D05: ±10 V -D24: ±50 V
Insulation resistance: Between input terminals and ground: 20 MΩ or more (500
VDC)
Withstand voltage: 2300 VAC (50/60 Hz) for one minute between input and earth
Maximum common mode voltage: 250 VACrms (50/60 Hz)
Terminal type: Clamp
Power consumption: Approx. 1.5 W
Applicable wire size: 0.14 to 1.5 mm
2
(AWG26 to 16)
External dimensions: | Approx. 57 (W) × 131 (H) × 151 (D) mm (including the terminal
cover)
Weight: Approximately 0.5kg.
General Specifications
Operating temperature range: –20 to 60°C
Operating humidity range: 20 to 80% RH for –20 to 40 °C
10 to 50% RH for 40 to 50 °C
5 to 30% RH for 50 to 60 °C

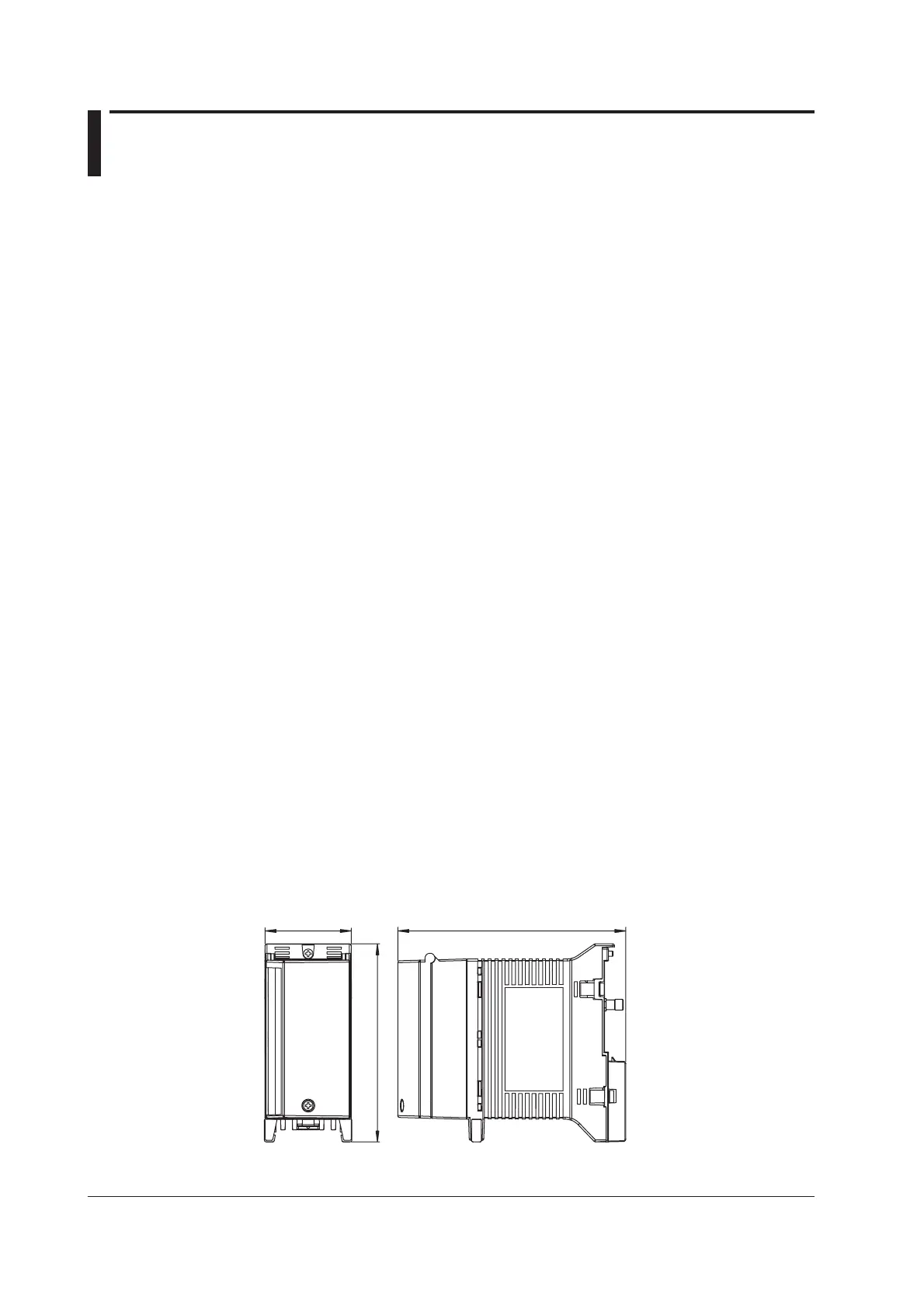

External Dimensions
Units: mm
57
131
150.8
If not specified, the tolerance is ±3%. However, in cases of less than 10 mm, the
tolerance is ±0.3 mm.
