Switches and Keys
The MW100 has the following switches and keys. Some are included with options.
• Start and Stop keys
• User function key 1
• User function key 2
• Dip switch 1
• Dip switch 2
• Terminator switch (/C3 option)
• Power switch
User Function Keys
Actions set up using the Event/Action function can be executed by pressing the user
function keys on the front panel of the MW100.
The keys are assigned as follows by default.
Key Display Action
User function key 1 USER1 Write to setting values file
User function key 2 USER2 Load setting values file

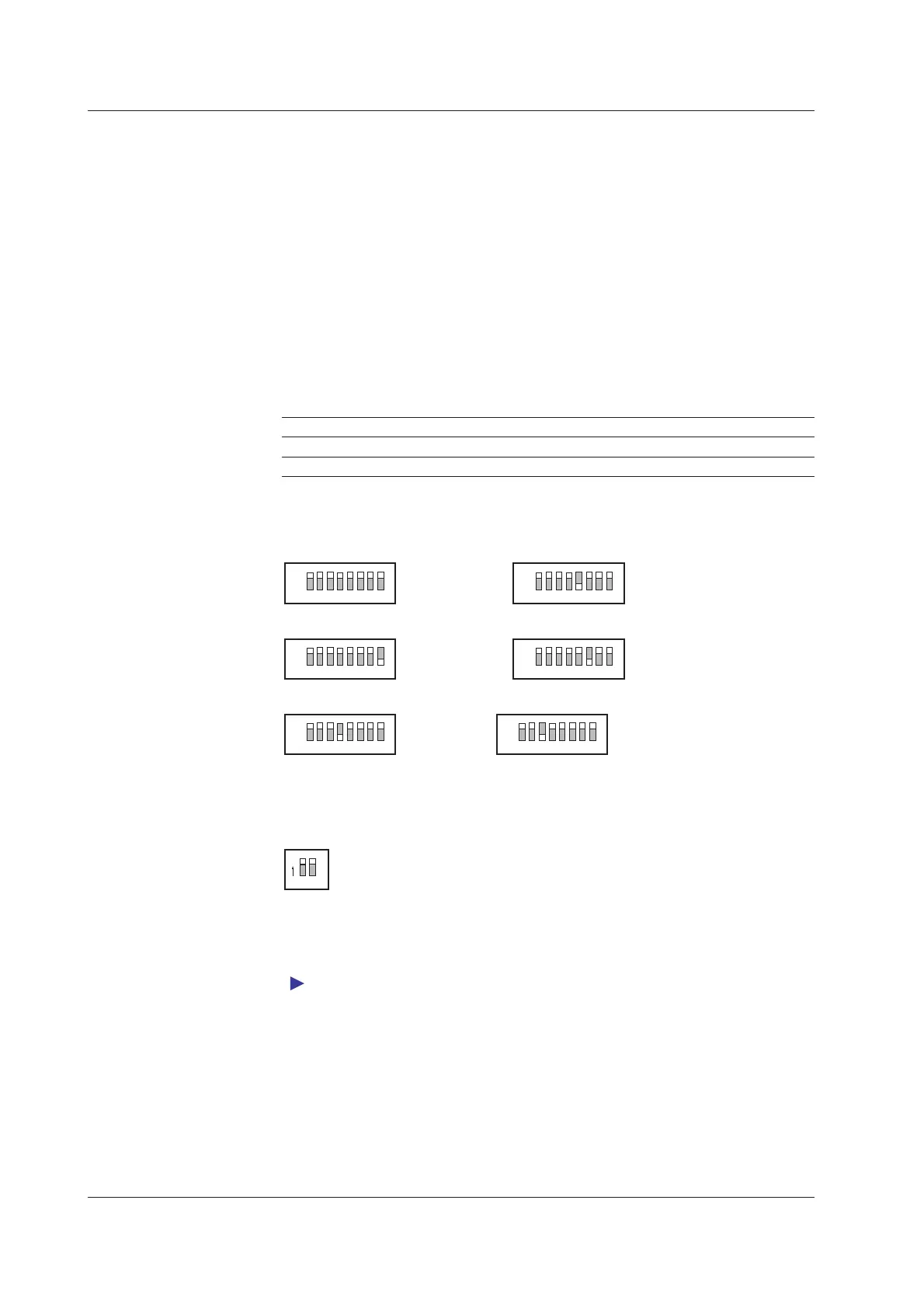

Dip Switch 1
Used to initialize the MW100 settings and for other functions.
• Normal operation • Initialization of IP addresses and other settings
12345678
ON
12345678
ON
• Fixed IP address (192.168.0.10) • 10-Mbps half-duplex Ethernet communication
12345678
ON
12345678
ON
• Firmware update
12345678
ON
12345678
ON
Main unit Web
Dip Switch 2
Turn all switches ON for normal operation. If the switches are set differently, the
instrument may not function correctly.
12
ON
Key Lock Function
You can apply a lock to the functions of the Start, Stop, and user function keys. The lock
prevents inadvertent execution of functions.
For setting the key lock, see “Other Settings” in section 3.3.
