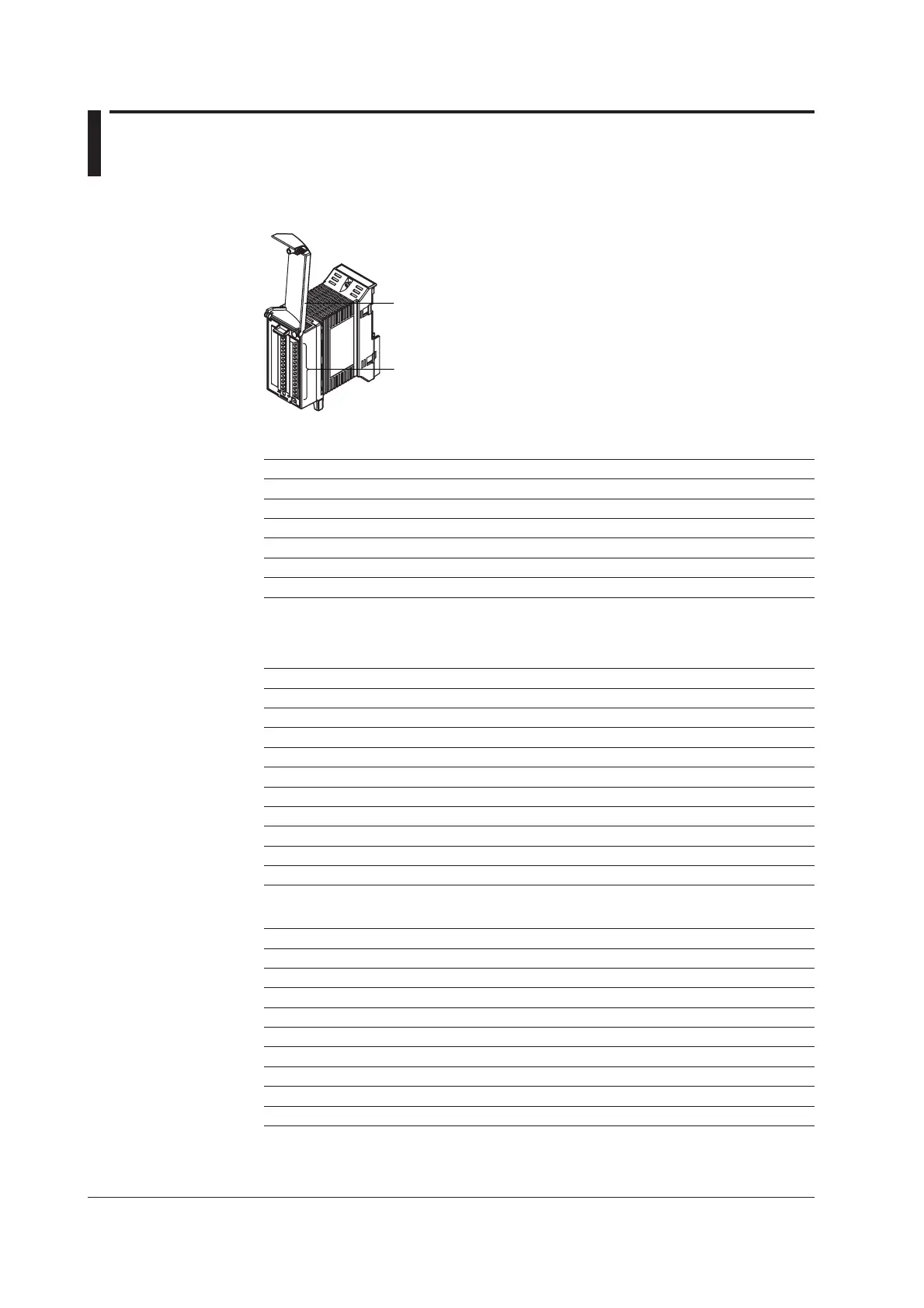

1.5 Functions of the 10-CH, Medium-Speed
Universal Input Module
This module allows up to ten inputs of DC voltage, thermocouple, 3-wire RTD, and digital
input (DI) at a minimum measurement interval of 100 ms.
Input terminal (clamp terminal)
Terminal cover
Measurement Input Types
Measurement Input Type Notation
No measurement SKIP
DC voltage VOLT
Thermocouple TC
Resistance temperature detector RTD
DI DI
Remote RJC RRJC
Measurement Range
DC Voltage
Measurement Range Notation Rated Measurement Range
20 mV 20 mV –20.000 to 20.000 mV
60 mV 60 mV –60.00 to 60.00 mV
200 mV 200 mV –200.00 to 200.00 mV
2 V 2 V –2.0000 to 2.0000 V
6 V 6 V –6.000 to 6.000 V
20 V 20 V –20.000 to 20.000 V
100 V 100 V –100.00 to 100.00 V
60 mV (high resolution) 60 mVH 0.000 to 60.000 mV
1 V 1 V –1.0000 to 1.0000 V
6 V (high resolution) 6 VH 0.0000 to 6.0000 V
Thermocouple
Measurement Range Notation Rated Measurement Range
Type-R R 0.0 to 1760.0°C
Type-S S 0.0 to 1760.0°C
Type-B B 0.0 to 1820.0°C
Type-K K –200.0 to 1370.0°C
Type-E E –200.0 to 800.0°C
Type-J J –200.0 to 1100.0°C
Type-T T –200.0 to 400.0°C
Type-N N 0.0 to 1300.0°C
Type-W W 0.0 to 2315.0°C
