YOKOGAWA MW100 User Manual

3-28
IM MW100-01E

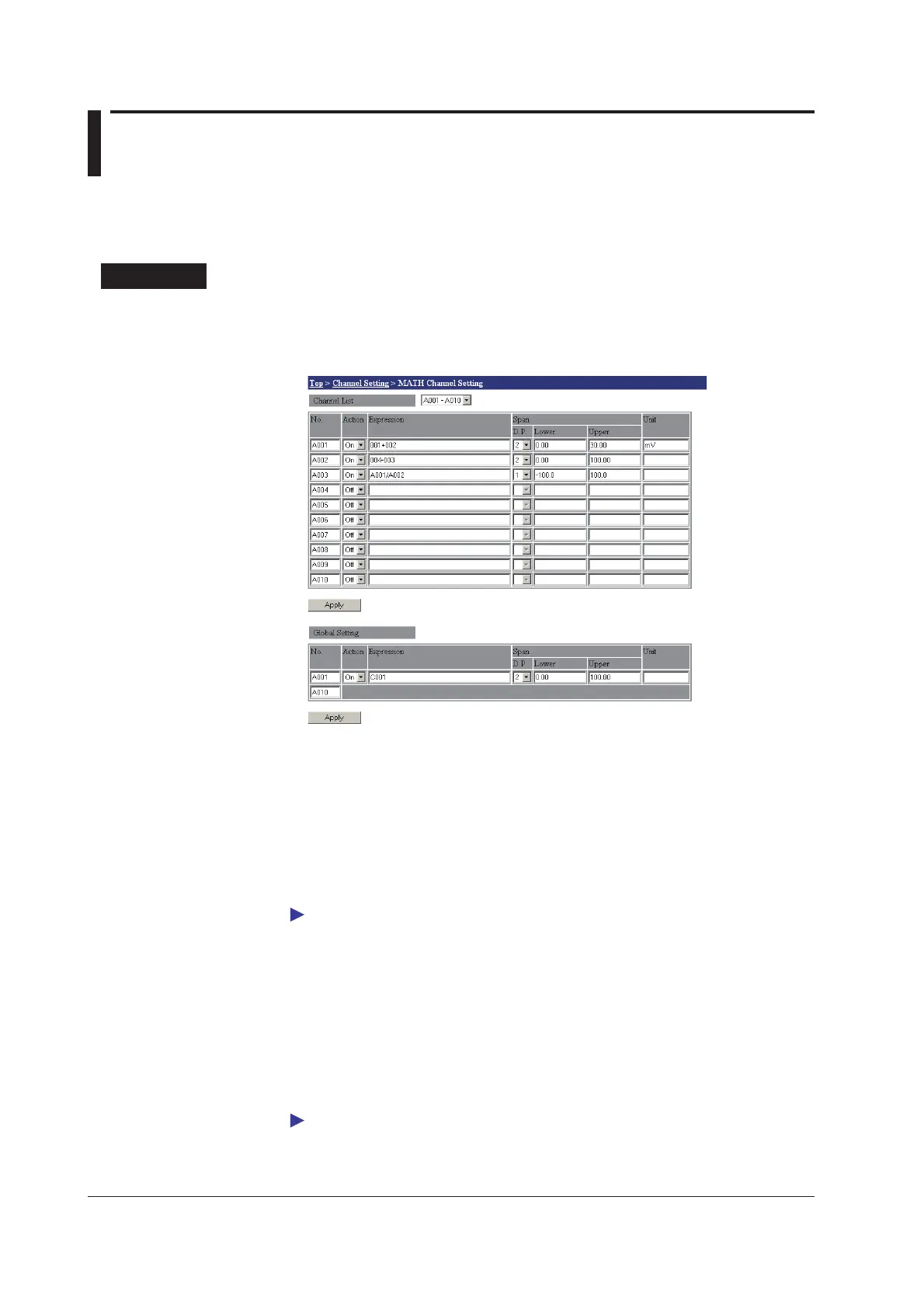

3.6 MATH Settings ( MATH Channel Settingsand
the /M1 Option)
You can set the MATH operation, expressions, MATH span, MATH coefficients,
and MATH groups. This section also explains settings for program channels and
communication input data.
Setting Mode
Entering Expressions
1.
From the top screen, click Channel Setting > MATH Channel Setting.
2.
Select the channel group you wish to set from the Channel List list.
Setting the MATH Operation
3.
Turn ON the MATH channels to be used in the Action list.
Entering Expressions
4.
Enter an expression in the Formula box.
For information about expressions, see section 1.13, “MATH Functions (/M1 Option).”
Setting the MATH Span
The method to enter the span value is the same as the method to enter the scale of a
measurement channel.
5.
Enter the lower or upper limit of the MATH span in the Lower or Upper box under
Span.
6.
Select the decimal place from the D.P. list under Span.
7.
Enter the scale conversion value in the Unit box.
For the procedure to enter the scale, see “Setting the Scale” in section 3.5.
8.
Click the Apply button. The setting changes take effect.
