Setting Mode
Display Settings
Tag Settings
Enter Tag names to assign to measurement and MATH channels. If the tag name display
is enabled, the tag names specified here are displayed.
For the procedure to switch to the tag name display, see “Other Settings” in this section.
1.

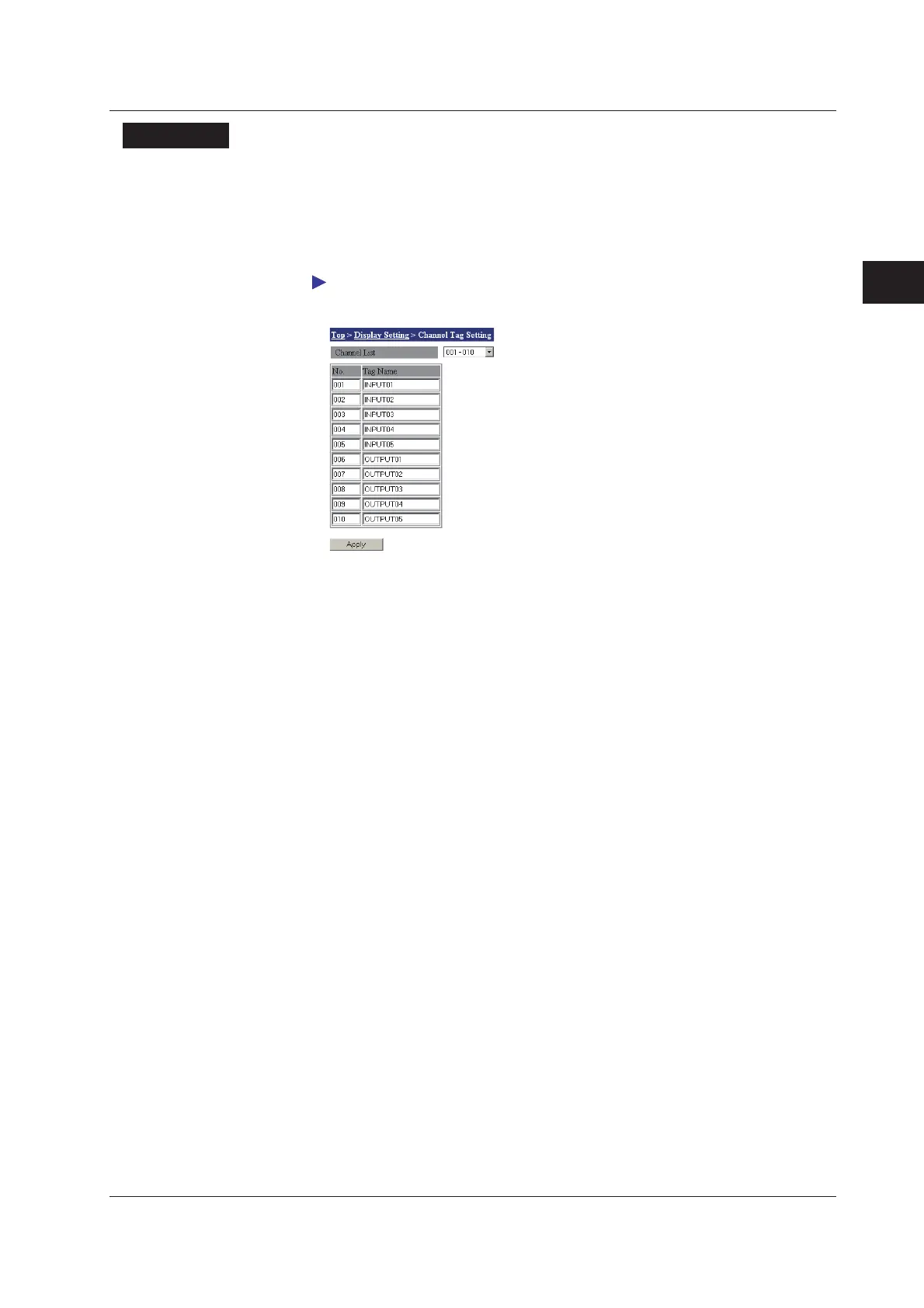

From the top screen, click Display Setting > Channel Tag Setting.
2.
Select the tag number group you wish to set from the Channel List list.
3.
Enter a tag name in the Tag box of each tag number.
You can use 15 alphanumeric characters. If you do not enter the tag names, the channel
numbers are displayed even if the tag name display is enabled.
4.
Click the Apply button. The setting changes take effect.
