3-60
IM MW100-01E

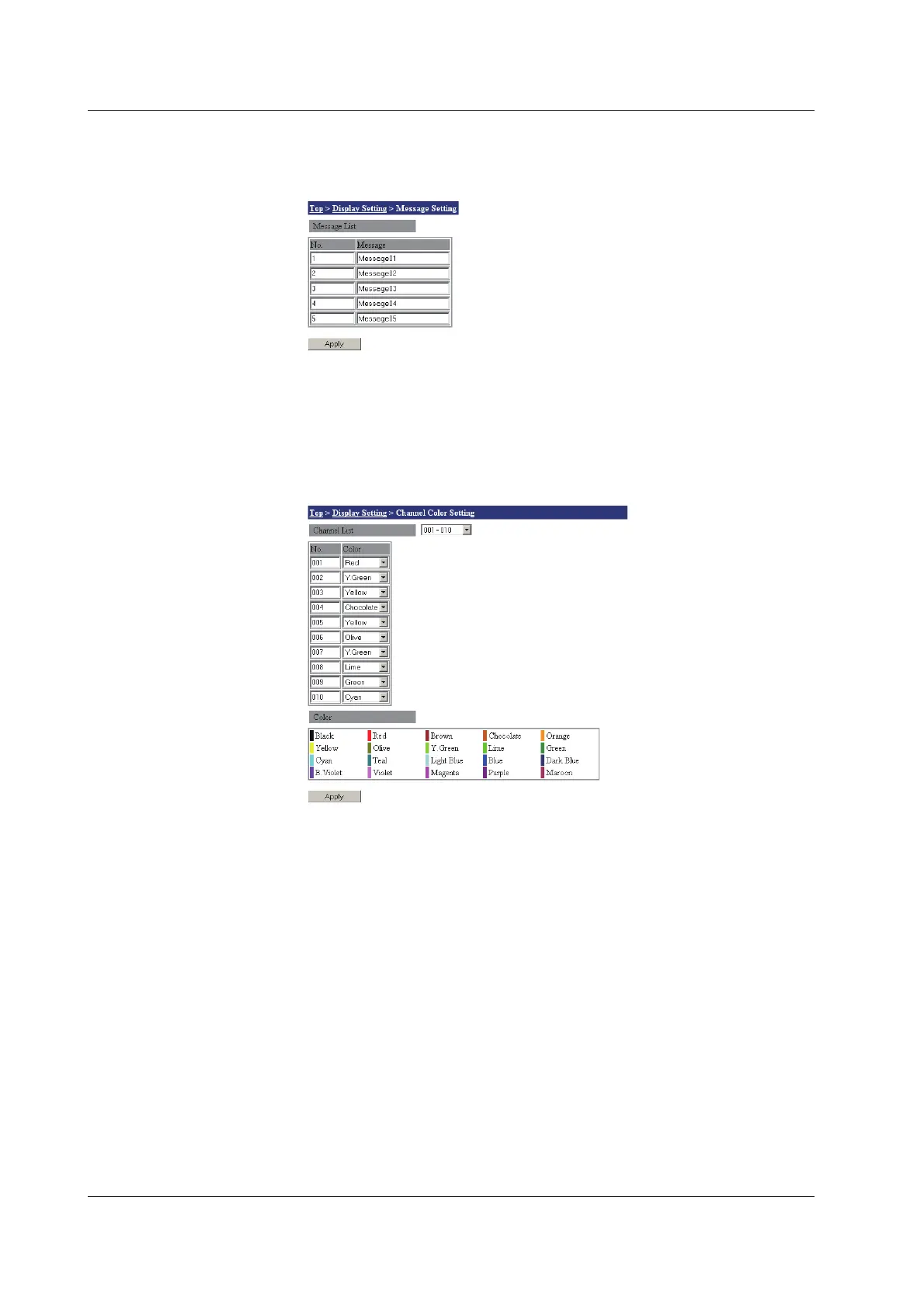

Message Settings
You can specify a message to be written along with data saving during recording.
1.
From the top screen, click Display Setting > Message Setting.
2.
Enter the message in the Message box in the Message List. You can use fifteen
alphanumeric characters.
3.
Click the Apply button. The setting changes take effect.
Setting Display Colors
1.
From the top screen, click Display Setting > Channel Color Setting.
2.
Select the channel group you wish to set from the Channel List list.
3.
Select the color you wish to assign in the Color list of each channel. Color
samples are shown towards the bottom of the screen
4.
Click the Apply button. The setting changes take effect.
3.15 Measured Data Monitor Display/Settings
