3-61
IM MW100-01E
Setting and Data acquisiton
3

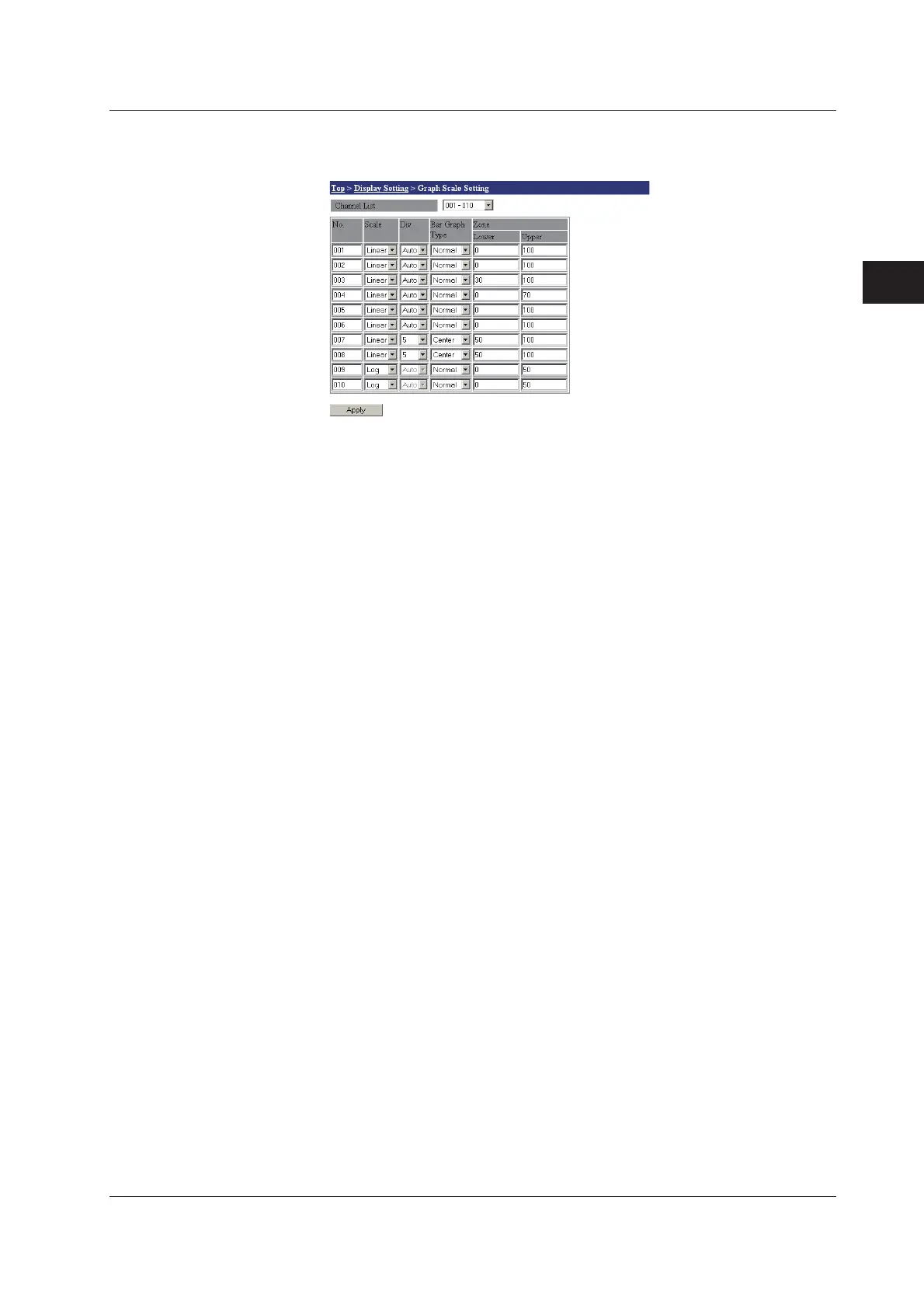

Graph Scale Settings
1.
From the top screen, click Display Setting > Graph Scale Setting.
2.
Select the channel group you wish to set from the Channel List list.
3.
Select Linear or Log in the Scale list.
4.
Select the number of divisions in the Div list. It can only be selected when
set to Linear display. If you select Auto, the number of divisions is determined
automatically from the scale or span of the specified channel.
5.
Select a display position of Normal or Center in the Bar Graph Type list. The
digital or bar graph display is updated accordingly.
6.
Specify a percentage from the top or bottom in the Zone boxes. Enter a Lower
value of 0 to 95 (%), and an upper value from 5 to 100 (%).
7.
Click the Apply button. The setting changes take effect.
3.15 Measured Data Monitor Display/Settings
To Next Page
