Setting and Data acquisiton
3
Other Settings (Selecting Channel Number Display or Tag Name Display)
1.

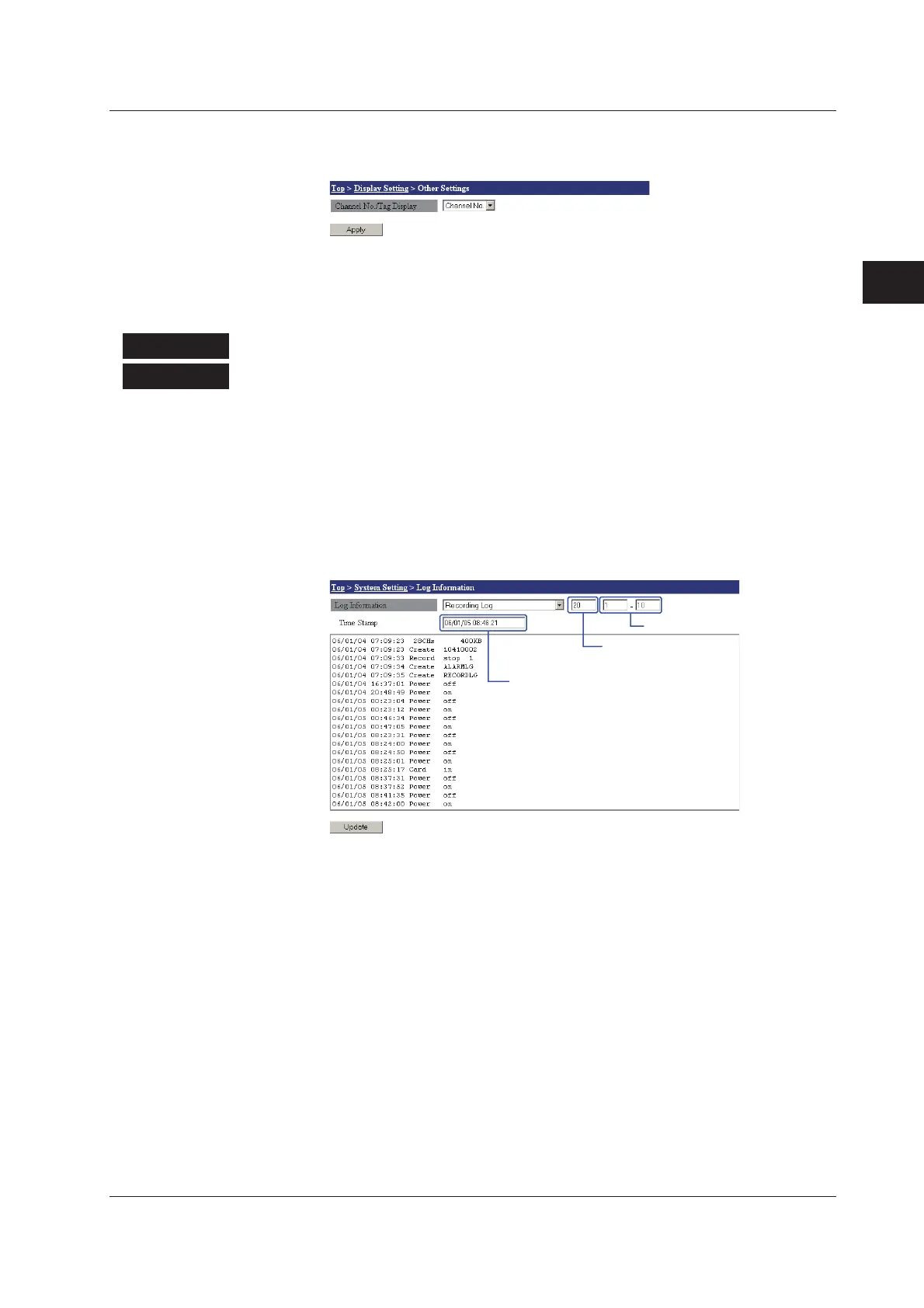

From the top screen, click Display Setting > Other Settings.
2.
Select whether to display channel numbers or tag names in the Channel No./ Tag
Display list.
3.
Click the Apply button. The setting changes take effect.
Setting Mode
Meas. Mode
Log Information
You can display information from the recording log, alarm summaries, and other sources.
For information about display contents, see the MW100 Communication Command
manual (IM MW100-17E).
Log Information
1.
From the top screen, click System Setting > Log Information.
Log output request time
Display range
Maximum no. of
output displayed
2.
Select the type of log you wish to display in the Log Information list.
3.
Enter the number of logs to display or the display range in the box to the right of
the list. The box that you enter varies depending on the type of log you wish to
display.
4.
Click the Update button. The updated time is displayed in the display box aligned
with the Log Information list, and the updated time current log information is
displayed in the log display area.
